4 cylinder bore & stroke combinations + max bore & stroke list

Discussion in 'Engines' started by A.N. Other, Jan 20, 2011.

  1. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    447
  2. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    447

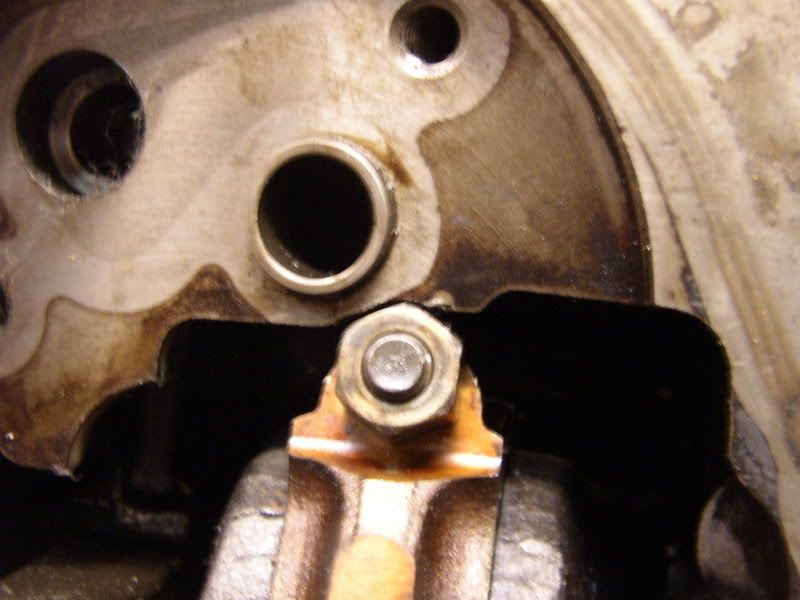

    Agree, another 2.25mm required off that to fit. Boggles the mind...

  3. danster Forum Addict

    Joined:
    Apr 2, 2008
    Likes Received:
    15
    Remember that after market conrods use bolts with a smaller head instead of the studs and nuts on OEM rods. The ARP replacement studs and nuts for the OEM rods also use a smaller nut.
    The after market rods could also be not quite as deep across the rod and cap so may help clear the block at the oil pump area.

  4. VAL

    val New Member

    Joined:
    Jan 12, 2011
    Likes Received:
    0
    You should take out AEB from this table :)

  5. G60KG

    G60KG Forum Member

    Joined:
    Sep 28, 2007
    Likes Received:
    5
    Location:
    at work 'working'
    I can't see any tables, why?

  6. Trev16v

    Trev16v Paid Member Paid Member

    Joined:
    Oct 22, 2003
    Likes Received:
    451
    Location:
    Oxfordshireland
    It's because the tables need converting to the new format (see stickies about this). Happened due to forum upgrade.The content is actually there but invisible. I or one of others can try to find a moment to convert this thread tonight.

  7. mat-mk3

    mat-mk3 Administrator Admin

    Joined:
    Oct 23, 2003
    Likes Received:
    566
    Location:
    Bristol
    A rough count of about 230 tables to convert manually. I'm doing some every night at the moment.
    I will sort this one out tonight for you.

  8. erreesse New Member

    Joined:
    May 5, 2013
    Likes Received:
    3
    Location:
    Ypres, Belgium
    Chris, can I add a bore stroke combination?

    Skoda Fabia S2000 has a 1996cc with 83mm bore and 92.2mm stroke.
    Is somebody made such a table for the small block (EA111).

  9. erreesse New Member

    Joined:
    May 5, 2013
    Likes Received:
    3
    Location:
    Ypres, Belgium
    Chris, another combination ?

    The Polo R WRC has a bore of 83mm and a stroke of 73.8mm.

  10. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    447
    Thanks erreesse, I will add the Skoda one :thumbup:

    Regarding the Polo, the WRC regulations allow a manufacturer to use a production engine or to design an engine from scratch ('Global Race Engine' / 'FIA Appendix engine') but they must have 93mm bore centres, as opposed to 88mm which Volkswagen production engines use. Although the WRC dimensions would fit in a production block, the 1.6 litre Polo WRC engine is a bespoke unit :)

  11. HPR

    HPR Administrator Admin

    Joined:
    Aug 11, 2009
    Likes Received:
    1,819
    Btcc / Wtcc S2000 85.0 x 88,1 > 40.0 mm rod journal
    Super Touring A4 85 x 88.1 > 46.0 mm and 42.0 mm
    Polo S2000 82.5 x 92.8 mm > 46.0 mm Modified std crank
    Fabia S2000 83 x 92.2 mm

    Last edited: Nov 11, 2013
  12. erreesse New Member

    Joined:
    May 5, 2013
    Likes Received:
    3
    Location:
    Ypres, Belgium
    Sorry to HPR, but the Polo S2000 was developed by Ren Georges (Belgium) in the first place for South-Africa. Then we've seen them in Belgium (sadly one of the co-engineers died in an accident while testing) and you still see 2 cars regularly participating in nat./internat. rally's in B. The service 's done nearby so I know that the base engine comes from the 1984cc what means a bore of 82.5 and "standard" crank. The Skoda engineers changed the bore to 83mm and a shorter stroke.

  13. erreesse New Member

    Joined:
    May 5, 2013
    Likes Received:
    3
    Location:
    Ypres, Belgium
    Thank you Chris for the reply, but I still wonder what are the possibilities of the small blocks. I was thinking of the crank from 1W diesel (EA111 block and 79mm stroke) they use in the polo G40 to make a 1.5. Would it be possible to put these in the new 1.4 TFSI (76,5 x 75,6) or better a 1.6 crank (86.9mm) with 1.6 rods ?

  14. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40
    i'm sure theres more clearance with the 95.5mm crank if you use H Beam roads with ARP Studs

    I can get a photo if anybody needs info

    the bottom of the bores need trimming though to clear the H Beam rods, I beam are a better fit.

    Last edited: Nov 11, 2013
  15. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    447
    Hi erreesse, the small blocks we started looking at a little but not in this detail - the big blocks got the main attention!

    The main issue is the oil pump drive from the G40 to the 1.4 TFSI. If that has not changed, then your idea about swapping cranks should be spot on. Obviously piston compression heights will need to be investigated, but otherwise, there should be no reason why not - apart from internal clearance :thumbup:

  16. Peter Jones Forum Member

    Joined:
    Sep 20, 2010
    Likes Received:
    33
    Location:
    Australia
    Can't see my combination in the above,

    90mm x 84mm using Eurospec bits in an 06A block. 13.5:1 CR

  17. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    447
    Thanks Peter. Now added.

    Are you running a 46mm crank pin or 47.8mm?

  18. Peter Jones Forum Member

    Joined:
    Sep 20, 2010
    Likes Received:
    33
    Location:
    Australia
    46mm big end and 19mm little end.
    Rod length is 150mm.

    A.N. Other likes this.
  19. TonyB Paid Member Paid Member

    Joined:
    Jan 6, 2010
    Likes Received:
    317
    Location:
    Ammanford, Wales
    Peter are you using the 84mm pistons from the kit as well? The 6a is the short block, yes? I'm just interested as I will be building an FSi head based race motor, but based on the 1800 DX block, and that won't go to 84mm! Unfortunately Regulations dictate that is what I have to use, real shame as it costs far more to use than the later blocks to achieve the same result but hey. So I'm toying with what set up to use, but I think I'm right in that the 90mm crank/150mm rod combination will fit the 1800 short block if it fit in a 6A, that is the ideal set up.

  20. ambrose89

    ambrose89 Forum Member

    Joined:
    Mar 19, 2007
    Likes Received:
    21
    Location:
    on back,crap in eyes, beneath car
    Hi,
    I have a standard Audi 2l 6a bottom end mated to a headinshed head with kr cam.

    In event of a rebore (employing a machinist) would it be sensible/a good time to increase cc ?
    If so what level of difficulty is involved ?
    Higher cr considerations (heat/stress/emissions) ?
    Sourcing of parts(from other VAG models possibly?)?
    parts required?
    I'm reasonably good with spanners, technical/thermal calcs might hurt my brain a bit.

    To summerise -worth it ? hard? expensive? advisable ?

    for ref -info from table from OP's post above.
    Engine code OE capacity OE Bore OE Stroke Max bore Max stroke

    6A/9A/ACE 1984cc 82.5mm 92.8mm 84-5mm 100mm**

    Last edited: Jun 10, 2020
