Rear crankseal placement in the seal holder ?

Discussion in 'Corrado' started by watercooled, May 22, 2021.

  1. watercooled Forum Member

    Joined:
    Aug 19, 2012
    Likes Received:
    102
    Location:
    Nelson,New Zealand
    Just wondering what is the general rule for placement of the seal in the holder,should it fit flush or recessed a few millimetres like I found the old (leaky) one ?.
    Fitted a new seal but have now found it isn't a direction type and is a different thickness and some no brand POS,just don't want to risk a leak once the ABF is in the car,TIA cheers.

  2. Tristan

    Tristan Paid Member Paid Member

    Joined:
    Apr 25, 2006
    Likes Received:
    1,205
    Location:
    Southern IRELAND
    Personally I put them flush, unless stated otherwise in the manual

  3. watercooled Forum Member

    Joined:
    Aug 19, 2012
    Likes Received:
    102
    Location:
    Nelson,New Zealand
    Thanks makes sense to me,some monkey had damaged the carrier dowels which I have fixed but the old seal has ran non-concentric to the crank so I have a issue there but if I fit flush I will be away from that wear area so a good result.
    Thanks for the reply .

    Tristan likes this.
  4. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    3,298
    Location:
    Bracknell
    also to add you can move it a little further in if you find the crank has a groove worn into it

  5. Rustbuster

    Rustbuster Paid Member Paid Member

    Joined:
    Sep 20, 2020
    Likes Received:
    148
    I’ve got a new genuine VW seal in the holder. I can send you a picture of how they installed it in the factory if you wish?

  6. watercooled Forum Member

    Joined:
    Aug 19, 2012
    Likes Received:
    102
    Location:
    Nelson,New Zealand
    Thanks rustbuster,just add the pic to your next reply that would be great,when I removed the original leaky seal I measured and found I some leeway from the wear groove in the crank by fitting it flush with the holder,as John mentioned I can always go in further.
    New seal arrives soon so with remove holder today,cheers.

  7. Rustbuster

    Rustbuster Paid Member Paid Member

    Joined:
    Sep 20, 2020
    Likes Received:
    148
    Photos aren’t brilliant so took some measurements too. Also, part number on the box just to make sure we’re right there.

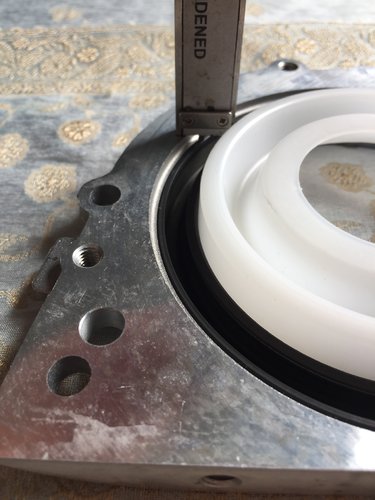

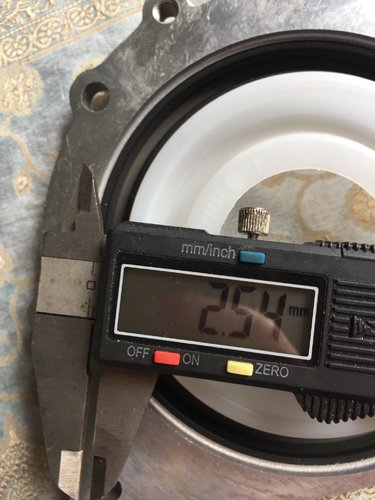

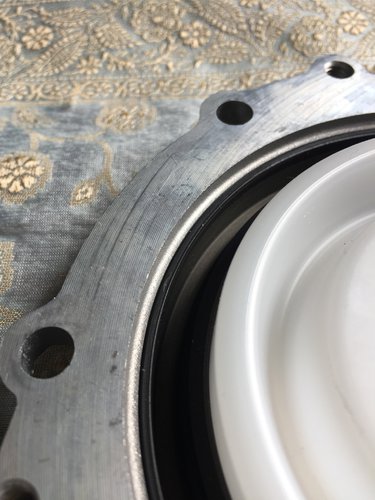

    So this is the engine side which is almost flush with the recess it’s adjacent to, if anything a fraction of a mm proud. And measured from the machined face to the lip of the seal, hopefully can see where the micrometer is resting on the photos is 2.54mm.
    980F384B-A584-4722-A369-004EC01449CB.jpeg 3B7099FD-1CDC-43DE-A6DF-7CB28D21E632.jpeg 2AAA78E7-24D5-447C-96FB-7904FF14EB50.jpeg

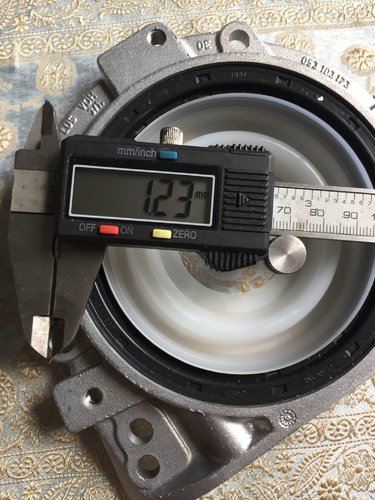

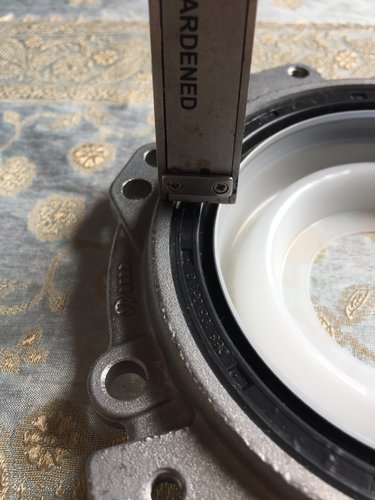

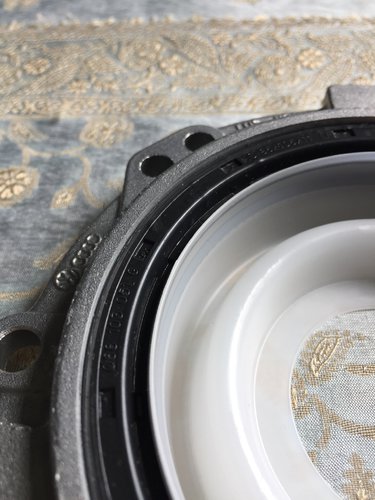

    Flipped over, clutch facing side, from metal lip to groove in the rubber seal where you can see part number is 1.23mm
    7430D929-1560-4C9F-9967-D80A58F5CBB4.jpeg 1185645A-218F-4F35-A902-7221FB0BEA56.jpeg 93C062AC-5C67-4C66-BDB0-D00362495962.jpeg
    Should get you close enough. Cheers.

    Last edited: May 25, 2021
    watercooled likes this.
  8. watercooled Forum Member

    Joined:
    Aug 19, 2012
    Likes Received:
    102
    Location:
    Nelson,New Zealand
    Thanks so much for the effort you went to ,old seal was in by 2.5 mm on the front face so I can clear the wear are no problem,cheers

  9. Rustbuster

    Rustbuster Paid Member Paid Member

    Joined:
    Sep 20, 2020
    Likes Received:
    148
    Was no trouble, enjoy your rebuild.
