16v intake flange measurements

Discussion in '16-valve' started by Brian.G, Dec 15, 2010.

  1. Brian.G

    Brian.G Forum Member

    Joined:
    Feb 3, 2008
    Likes Received:
    446
    Location:
    West of Ireland

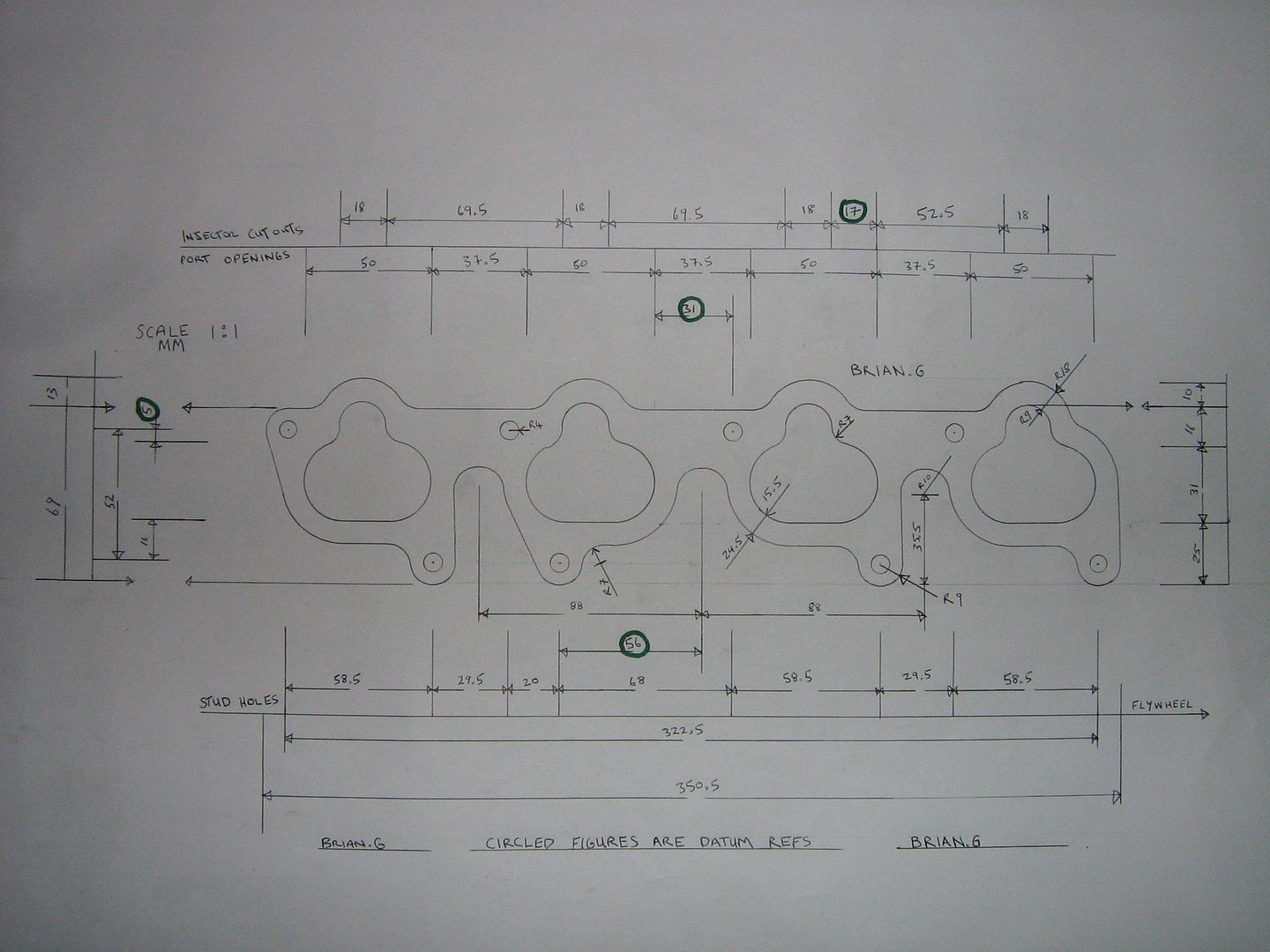

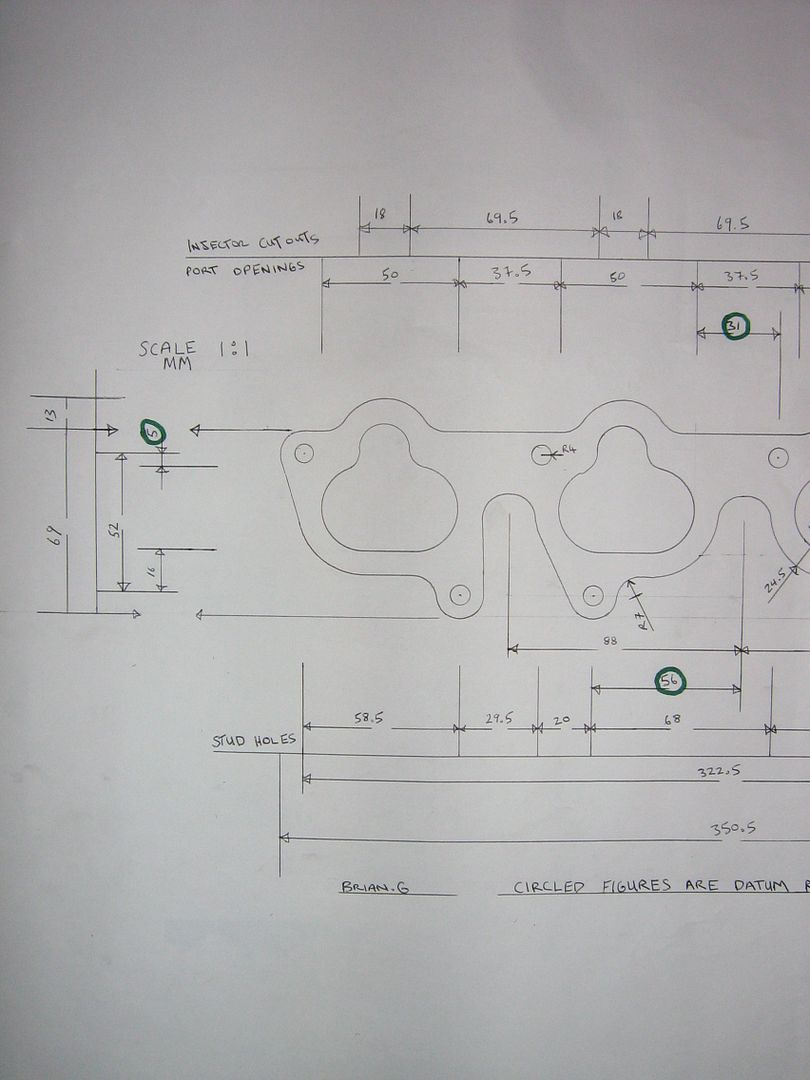

    A good friend asked me for this drawing, so now that I have it dug out and pinned on the board, I said Id throw it up here too, for future reference. Is a handy one to have if your going fabricating something yourself. :thumbup:

    [​IMG]

    [​IMG]

    [​IMG]

    BG:thumbup:

    ham&cheese, HPR and R.b!n_16v like this.
  2. Admin Guest

    Stuck! :thumbup:

  3. Brian.G

    Brian.G Forum Member

    Joined:
    Feb 3, 2008
    Likes Received:
    446
    Location:
    West of Ireland
    Nice one. I must draw it up in solidworks, as one guy a few years back said the measurements didn't tally and it was .5mm out someplace, but then others say it was perfect. Ill see once and for all later. Im pretty sure its right because I too have used it many times since.

    Brian,
