ABF 60-2 trigger wheel sensor position

Discussion in 'Throttle bodies & non-OEM ECUs' started by altern8, Apr 27, 2010.

  1. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
    Hi,

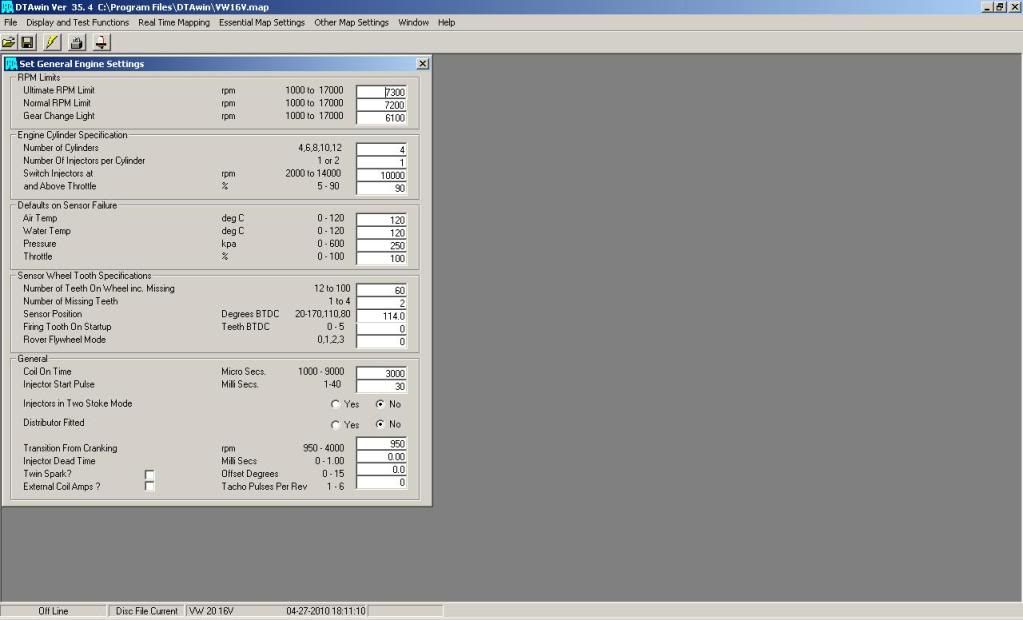

    Does anyone know what the wheel sensor position should be set to for a ABF 60-2 wheel?

    This is what mine is set to but I think it could be wrong


    Cheers

    [​IMG]

  2. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
    Is this right

    it's like the other vw motors (ABA, VR6, 1.8T etc), it's 60-2 and you can use it .. set to 78 deg

  3. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
  4. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
  5. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
    Tell me if I'm typing crap here

    VR sensor align 14 @ TDC?

    14 -1 = 13
    13 x 6 = 78

  6. infinity

    infinity Forum Member

    Joined:
    Jan 20, 2004
    Likes Received:
    28
    Location:
    United Kingdom
    yep mine is set to 78 degrees, but double check with a timing light once you get it up and running.

  7. Toyotec

    Toyotec CGTI Committee - Happy helper at large Admin

    Joined:
    Jul 26, 2006
    Likes Received:
    2,978
    Location:
    Creating Pfredstarke
    .
    Yes TDC is at tooth 14 on these.

  8. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
    Thanks both, hopefully it might start today :)

  9. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
    Still no joy using the 78 setting, with it set to 114 it would fire and spark but didnt on 78

    Bloke at emerald said it was 85 for the older vw 93 -96 ( i think) or for the newer stuff 120

  10. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
    Update, 85 works for some reason I'll change it to 78 once its all running. Not sure why it didnt work first but put a new battery on to help it turn over and off it went :)

  11. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
    78 seems work fine also had to set the starting tooth to 1 instead of 0

    Should the timing on idle be set to 6 degrees with the gun when ideling about 900rpm?

  12. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    146
    Location:
    M1 J40
    i would have it idle at 15 degress thats what mine is.

  13. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
    is yours a 60-2 wheel too? 15 sounds high for idle

  14. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    146
    Location:
    M1 J40
    no i'm running off the Dizzy Hall Sensor.

    i used to 12 deg advance when i was on k-jet .

  15. tshirt2k

    tshirt2k Forum Junkie

    Joined:
    Oct 21, 2004
    Likes Received:
    325
    Location:
    Herts
    15 on mine is used for cranking. When running it has a setting of 13. But i also have an idle advance control that reduces angle to 8 once over a certain temperature. This is because the idle seems to increase too high as it gets warm. The idle setting helps to keep idle around a 1000.
    Its due to the base idle setting needed for cold starts as i dont have an ISV yet.

    A lower spark angle at idle also recuces HC, which i need when MOT time comes around. Doesn't run as smooth though.

    Last edited: May 25, 2010
  16. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    146
    Location:
    M1 J40
    mine reduces to 8 deg when warm too ! Must be a Toyotec Map :thumbup:

  17. tshirt2k

    tshirt2k Forum Junkie

    Joined:
    Oct 21, 2004
    Likes Received:
    325
    Location:
    Herts
    It must be a coincidence it goes to 8. I changed that myself to get the idle right in cold and warm conditions.

  18. Thonn New Member

    Joined:
    Jul 7, 2017
    Likes Received:
    0
    Mine goes to 8 too.

    Last edited: Jun 15, 2018
