Crankshaft types and differences

Discussion in 'Engines' started by Brian.G, Jan 1, 2010.

  1. danster Forum Addict

    Joined:
    Apr 2, 2008
    Likes Received:
    9
    The pic of the 1Y crank above shows some kind of tin wheel with cut out similar to the petrol trigger wheel type. Are you 100% that is a 1Y crank?
    I have not come across this and as the IDI has no electronic pump control wonder if that is not maybe a TDI crank?

    Possibly it is a very late IDI one and is used for diagnosis or pump timing.

    The engine codes will be difficult to link to actual cars as there is such a large range with all the seat, skoda,vw, audi and ford:o vehicles that use them.

  2. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40

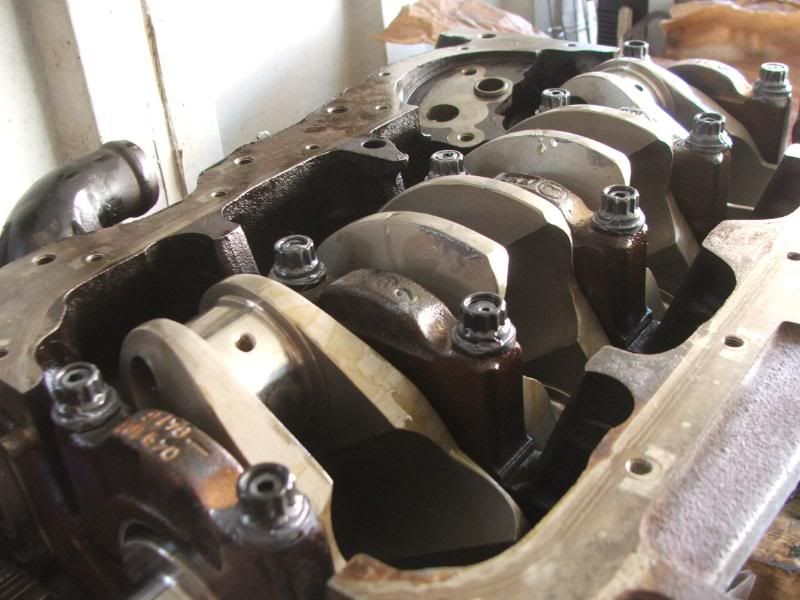

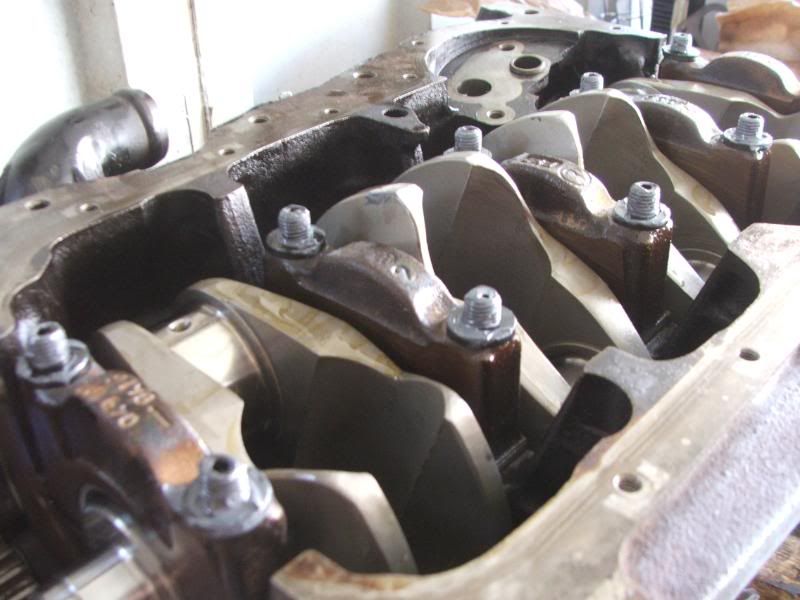

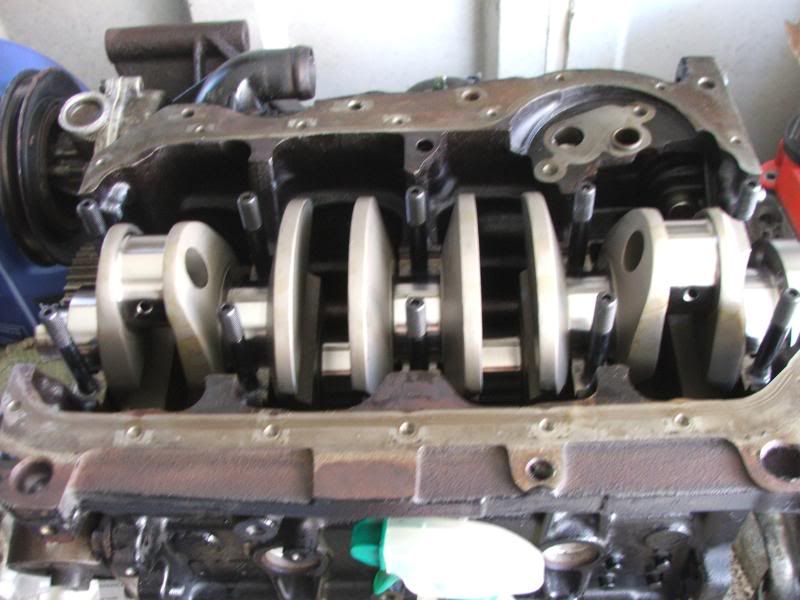

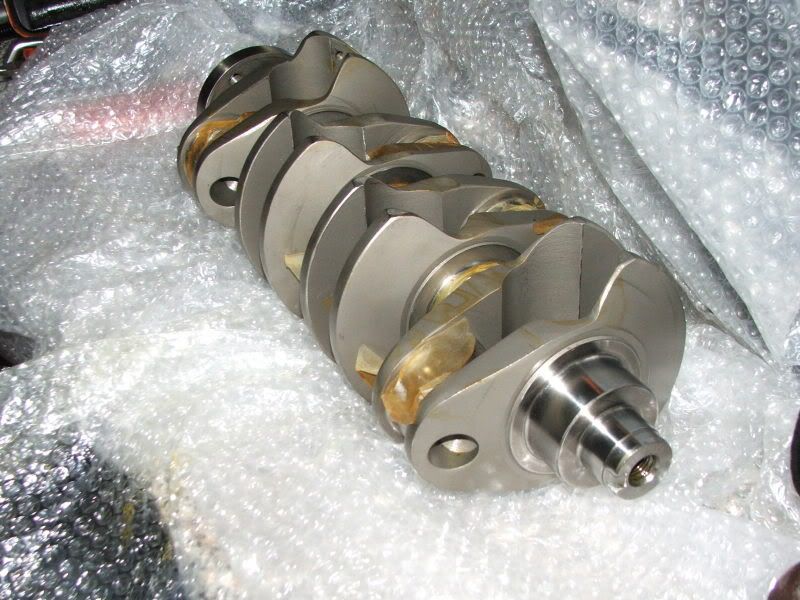

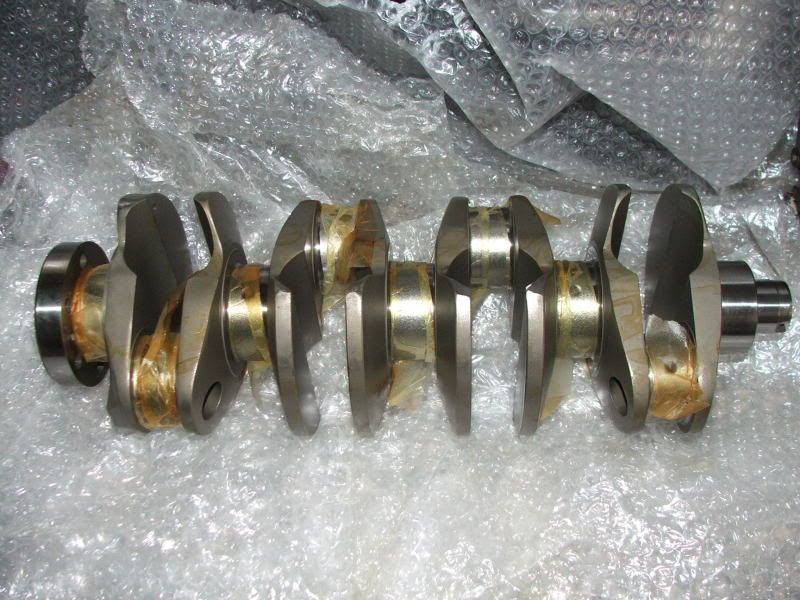

    Brian more pix for you.


    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Jan 6, 2010
  3. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40
    The Diesel 1Y Crank has a Timing wheel mounted on it maybe off a PD Engine :thumbup:

  4. danster Forum Addict

    Joined:
    Apr 2, 2008
    Likes Received:
    9
    I do not think that can be a 1Y crank, 1Z possibly and if it is a PD engines crank it will have the long nose on it and will not be from either a 1Y or 1Z engine.
    1Y is the non turbo IDI engine (pre TDI) fitted to early mk3 golfs, ventos, passat and the like.
    It will have the same dimensions as most of the diesel cranks with regard to main, crankpin journal sizes and stroke so could be used to do a similar job as the 1Y crank but the wheel makes it harder to lighten them for performance use.

    Interestingly though it appears to be a forged crank so maybe the TDI engines got higher grade cranks than the IDI or non turbo engines.

  5. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40
    The Timing wheel just u bolts same as ABF 60-2 Toothed wheel but alot lighter. :thumbup:

    Tornadored likes this.
  6. Spacemonkey Forum Member

    Joined:
    Jun 11, 2005
    Likes Received:
    0
    Location:
    The grim north. And proud of i
    Really enjoyed reading this. :thumbup:

    Found this on you tube.

    [YOUTUBE]Ytlpfa8gLE8[/YOUTUBE]

  7. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    398
    Which one is it?

  8. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40
    Interesting Crank spec there 93mm :thumbup:

  9. Neal H Forum Member

    Joined:
    Oct 18, 2007
    Likes Received:
    3
    Just a quick note to update if anyone is interested. Early (pre 88) KR 1.8 16v cranks are sometimes forged. I have just had my original 1987 KR engine apart and the crank is forged. It is also still within standard bearing size tolerances after 225k miles. Quite pleasing to see. :)

  10. retrowhore Forum Member

    Joined:
    Jan 7, 2011
    Likes Received:
    3
    Location:
    Nottinghamshire
    Can anyone advise how I identify a crank and where the part numbers would be located?

    I have a modified block (EV based) but no idea which crank (hence stroke) is fitted to calculate the CC.

    Pistons appear to be BMW 84mm type so dependant on the crank it could be anything from an 1870 to a 2057 unit.

  11. m3ltd0wn New Member

    Joined:
    Apr 29, 2010
    Likes Received:
    1
    GX vs KR

    a little more research on 1.8 GX and 1.8 KR crankshafts

    in the picture below is a KR engine forged crankshaft
    [​IMG]

    now comparing this to a GX cast crankshaft:
    up - KR forged crankshaft
    down - GX cast crankshaft
    [​IMG]
    [​IMG]

    left - GX crank
    right - KR crank
    [​IMG]

    :thumbup:

  12. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    398
    Interesting. I wonder if a GX is the same as a DX etc?

  13. m3ltd0wn New Member

    Joined:
    Apr 29, 2010
    Likes Received:
    1
    Another study: '96 AGG engine vs '91 2E Engine:
    AGG engine - cast crankshaft, no oil squirters, single valve springs, different pistons than 2E's.
    2E engine - forged crankshaft, oil squirters, dual valve springs.

    I'll take some pictures as soon as I can.

  14. Leetveen New Member

    Joined:
    Oct 1, 2012
    Likes Received:
    0
    great thread!

    small update after my research:

    1.8l 8v PG, 1H > Cast(s) 0261051013E
    1.8l 8v PB, GU > Cast(s) 0261051013 early supeceded by 0261051013E
    1.8l 16v KR, PL > Cast(s) 0261051013E
    2.0l 16v All > Forged(s) 053105101H (with trigger wheel)
    2.0l 8v ABK, 3A, AAD, AEE, ADW (most Audi engines) > Forged(s) 053105101C (without trigger wheel)
    2.0l 8v AGG, ADY, 2E > Cast (058 block)053105101K, Seat part #'s suggest use ABF unit.
    1.8l 20v ADR, > Cast(s) 026105101R ( manual) 3B Passat/8D A4
    1.8l 20v AEB, APU > Cast(s) 026105101R ( manual) 3B Passat/8D A4
    1.8l 20vT AGU, ARZ, AUM, AUQ, APX,APY, AMK, BAM > Forged (06A block) 06A105021
    1.8 20v AGN > Forged (06A block) 06A105021 Golf Mk4 N/A

  15. G28OPN Forum Member

    Joined:
    Feb 21, 2011
    Likes Received:
    354
    Location:
    Northamptonshire
    And just to add part numbers for the diesel cranks we tend to use, or not, as the case may sometimes be,

    028105101L 1z

    028105101J 1y, ahh, afn

    On the 1y crank, the part number seems to just have 028J stamped on it, aswell as other numbers and letters on other parts.
    NA is also stamped on it. Non aspirated maybe?

  16. m3ltd0wn New Member

    Joined:
    Apr 29, 2010
    Likes Received:
    1

    i didn't write the kr crankshaft part number, but from all the KR, PL, 2E, PG, PB engines i've seen...they all had a forged crankshaft.

  17. mk1tt16v Forum Member

    Joined:
    Aug 10, 2008
    Likes Received:
    0
    Location:
    south wales
    good thread.
    anyone know the material of the abf forged cranks? or density.
    thanks

  18. Lamamk1 New Member

    Joined:
    Feb 8, 2010
    Likes Received:
    0
    Location:
    Republic of Croatia, Zagreb
    I have searched bud did not find any info on my question wich looks like this:
    does anyone know direct fit ''stroker'' crankshaft that will fit abf block, and will have place to install trigger wheel?
    please help!

  19. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40
    AFN Crank

    Standard 95.5mm stroke
    [​IMG]

    do you need one ?

  20. Jon Olds Forum Junkie

    Joined:
    Jan 28, 2004
    Likes Received:
    471
    Location:
    United Kingdom
    excellent write up, learnt a lot
