mk2 rev counter problem, 1.8t bam

Discussion in 'Electrical' started by Sc0rian, Dec 26, 2010.

  1. Sc0rian

    Sc0rian Forum Member

    Joined:
    Nov 16, 2004
    Likes Received:
    0
    Location:
    Suffolk
    hi all,

    on my rallye, i'm running a late spec 1.8t bam engine. It's running all the oem ecu and what not. The problem I've had with it is I cannot get the rev counter to work. I can get it working on late spec corrado clocks, but as far as I'm aware the signal to mk3/corrado clocks are different than mk2.

    I have tried using a black box which you get from jabba and I ordered a more advanced one which allows you to set some settings to convert up to 12 cyls into 4 cyl clocks. This does work, but doesn't work on mk2 clocks still.. Vince at stealth told me to get it.

    http://www.bakerelectronix.com/products_tsd


    What should I do :(...

    Last edited: Dec 26, 2010
  2. tinydubs

    tinydubs Forum Member

    Joined:
    Sep 4, 2008
    Likes Received:
    0
    hold on.... i`ll take a look tomorrow i have a box of tricks that drives mine.

    originally i had problems with mine too, turns out it needed a better earth and live to prevent overheating. all thats inside is a coil and 3 pin diode

    Last edited: Jan 1, 2011
  3. Sc0rian

    Sc0rian Forum Member

    Joined:
    Nov 16, 2004
    Likes Received:
    0
    Location:
    Suffolk
    thanks bud :)

  4. Admin Guest

  5. tinydubs

    tinydubs Forum Member

    Joined:
    Sep 4, 2008
    Likes Received:
    0
    [​IMG]

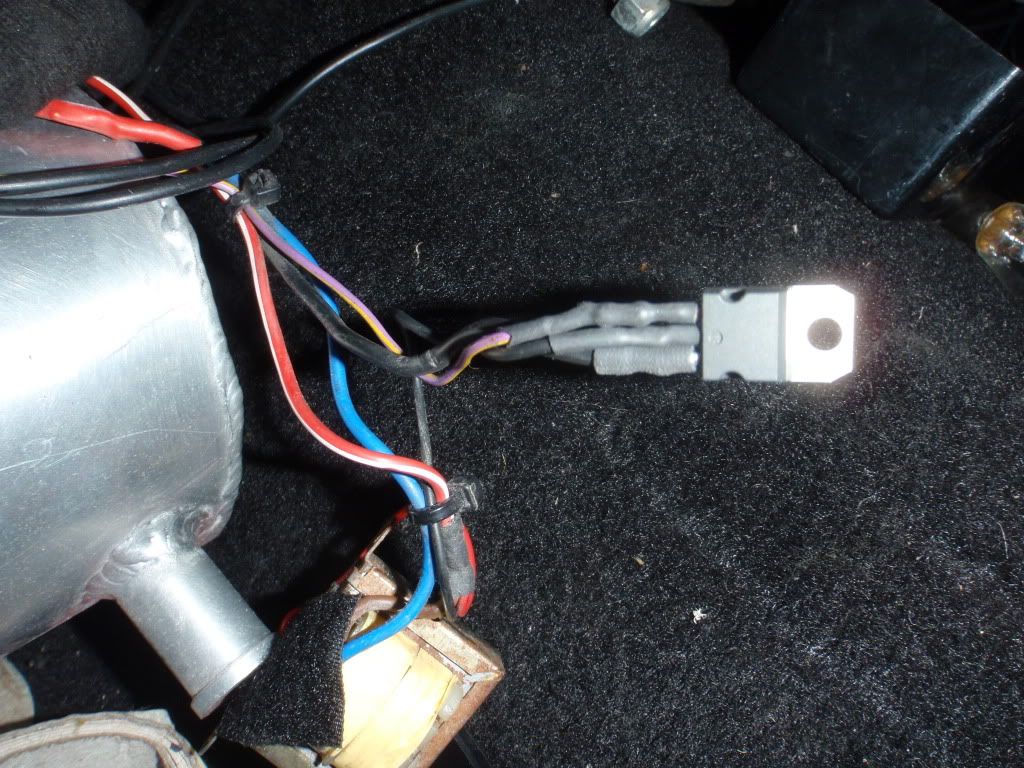

    this is from QPeng, the transformer is a 35:10.5 ratio its very important the metal tab on the diode does not touch anything.standard part number is BD243C

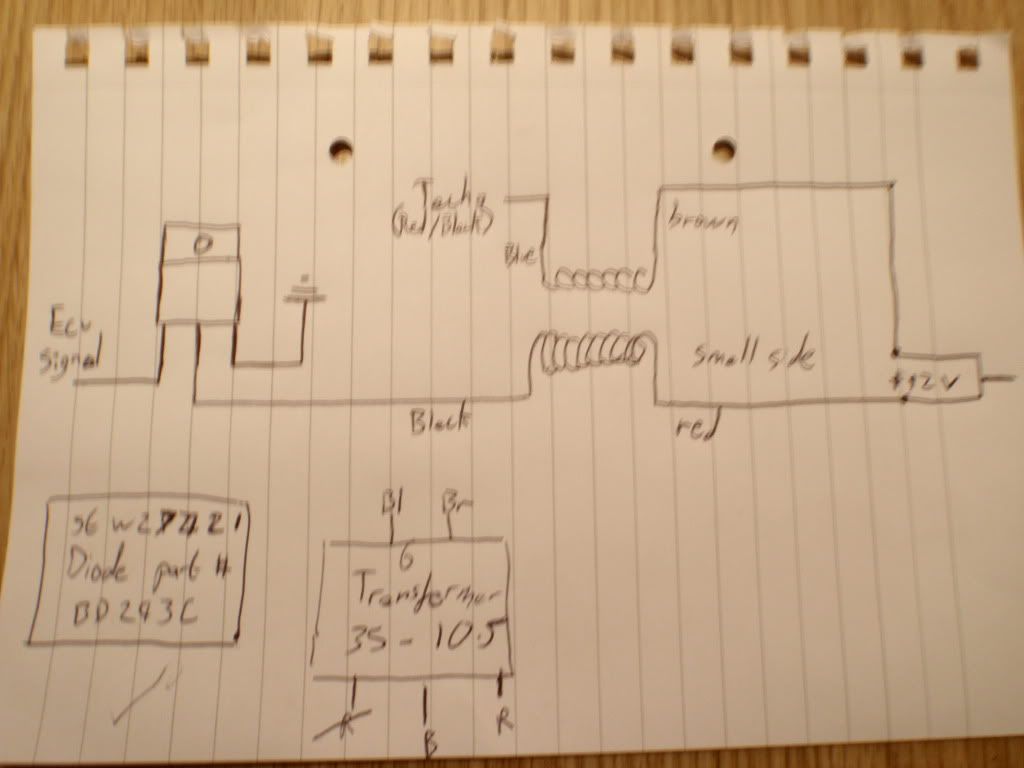

    show here[​IMG]
    top pin 1 Ecu signal
    pin 2 coil black
    pin 3 Earth

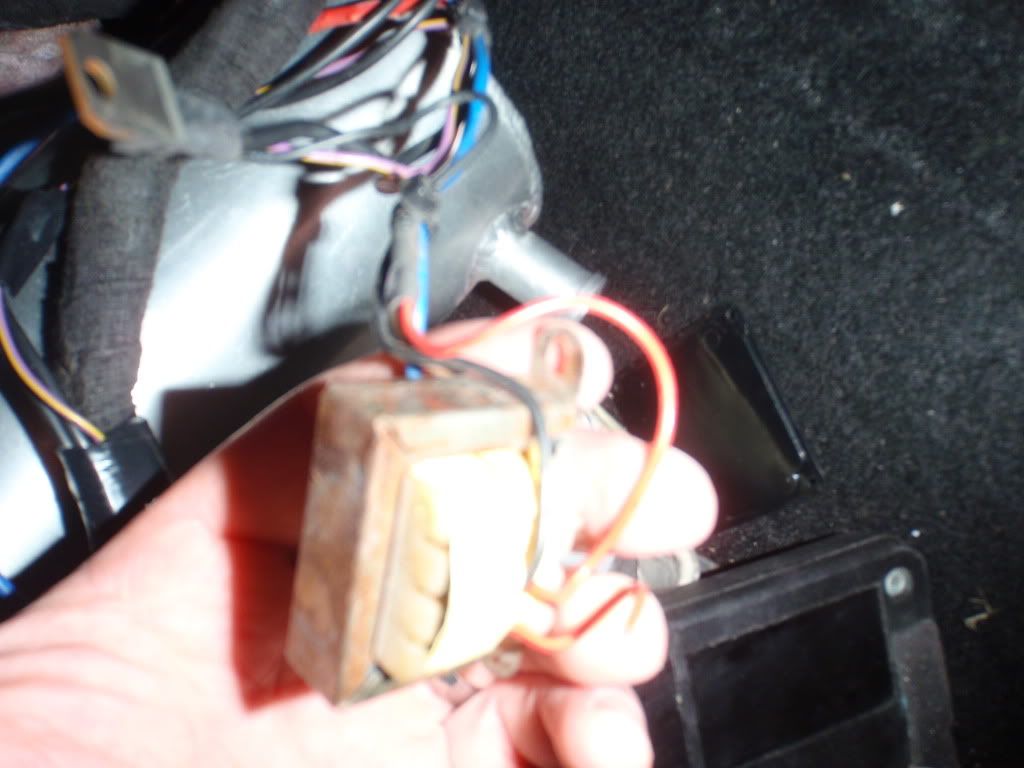

    coil, show red 12v+ and black wire to diode pin2

    [​IMG]

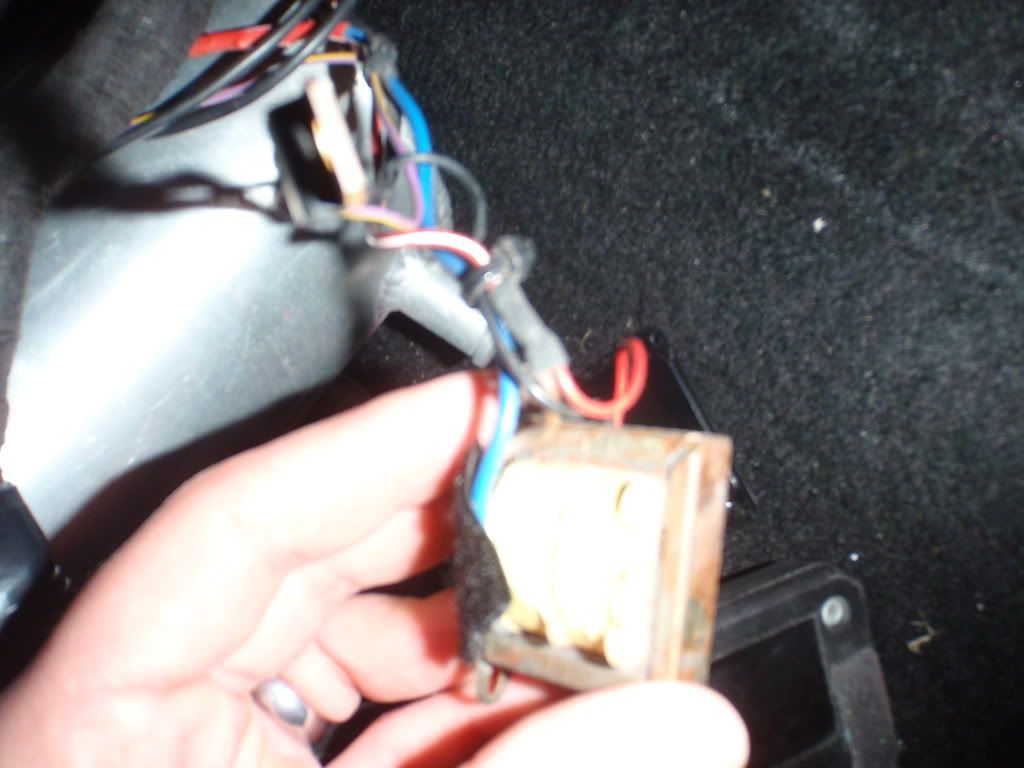

    coil, showing brown 12v+ and blue to tacho
    [​IMG]


    hope this helps:)

    Last edited by a moderator: Nov 5, 2018
  6. JWYATT Forum Member

    Joined:
    Jun 17, 2009
    Likes Received:
    0
    Location:
    South Coast
    Qpeng said they wont sell just the convertor ... , but Jabbasport said they now make these kits ,?


    Jo :thumbup:

  7. tinydubs

    tinydubs Forum Member

    Joined:
    Sep 4, 2008
    Likes Received:
    0
    well thats it ^up there, mine came with the kit i can`t see it being expensive to make all the parts are standard consumables for a leccy.

    diodes are under2 from farnell, they also have lots of them, but the vagueness of the info i know doesnt help. i`m still looking

  8. tinydubs

    tinydubs Forum Member

    Joined:
    Sep 4, 2008
    Likes Received:
    0
    seems they are known as "bobbins transformers" they start at 8

  9. The_bug Forum Member

    Joined:
    Mar 23, 2008
    Likes Received:
    2
    Location:
    Near Coventry
    I've been looking for this information since last summer and its so close to being possible to build but cant find a suitable transformer anywhere since they dont do it by ratio? Has anybody got any more info (even a manufacturer would be handy).

    Cheers

  10. Sc0rian

    Sc0rian Forum Member

    Joined:
    Nov 16, 2004
    Likes Received:
    0
    Location:
    Suffolk
    Last edited: Jul 24, 2011
  11. eazydaz Paid Member Paid Member

    Joined:
    Apr 15, 2010
    Likes Received:
    0
    it works correctly?

  12. badger5

    badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    14
    Location:
    nr Glos
    question.... what signal do the mk2 rev counter clocks want to see?

    i have an s60 feeding pin 10 on instrument cluster, and scoped its signal output, which is a square wave dc switched output at battery voltage amplitude. rev counter wont work.. its run on an exp48 ecu before and worked, which is odd needless to say.

  13. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,804
    Location:
    Bracknell
    its a pulsed -ve mr badger, same signal as the TCI unit uses to fire the coil :thumbup:

  14. badger5

    badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    14
    Location:
    nr Glos
    ahhh.. -ve.. doh!
    cheers

    wondering how the exp48 that was on there before managed to make it work.. ?

  15. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,804
    Location:
    Bracknell
    paging dr. Trev! :lol:

  16. The_bug Forum Member

    Joined:
    Mar 23, 2008
    Likes Received:
    2
    Location:
    Near Coventry
    Another question. What do the original diesel mk2's use for the rev counter signal? no coil so no signal right.

  17. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,804
    Location:
    Bracknell
    comes from the alternator :)

  18. The_bug Forum Member

    Joined:
    Mar 23, 2008
    Likes Received:
    2
    Location:
    Near Coventry
    Ah ye, just been hunting for info on the diesel forums. not much use without monumental effort... the hunt continues!!

  19. badger5

    badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    14
    Location:
    nr Glos
    I think its more than just a -ve feed.
    Its getting that and no workie.. from S60 direct, and also off coil drivers direct.

  20. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,804
    Location:
    Bracknell
    Last edited: Sep 26, 2019
