NEW 80mm Full Bore K04 TIP for LCR/S3/TT225

Discussion in 'Badger5' started by badger5, Sep 1, 2011.

  1. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    I am very pleased to be able to announce the Newly developed 80mm Full Bore Silicon TIP for K04 users like LCR's, S3's, TT225's etc

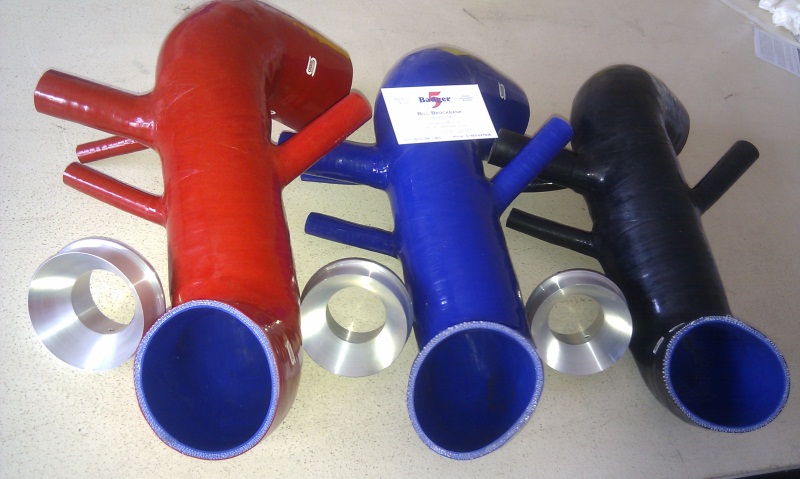

    Fresh off the mould tools the new 80mm TIP is a one piece silicon TIP, plus its Billet Adaptor & clips.

    This is the evolution of the 3" TIP as was, but now simplified into a one piece Silicon hose. The increased bore size of 80mm maintains MAF Sensor Internal diameter straight through to the turbo intake, increasing airflow as proven with the 3" TIP previously. The 80mm Silicon TIP replaces the 3" multi-component version for all ESP equipped rhd cars.

    The TIP fits to std airbox or induction kits and cone filters. Some trimming to suit may be required to tailor to the car.

    [​IMG]
    [​IMG]

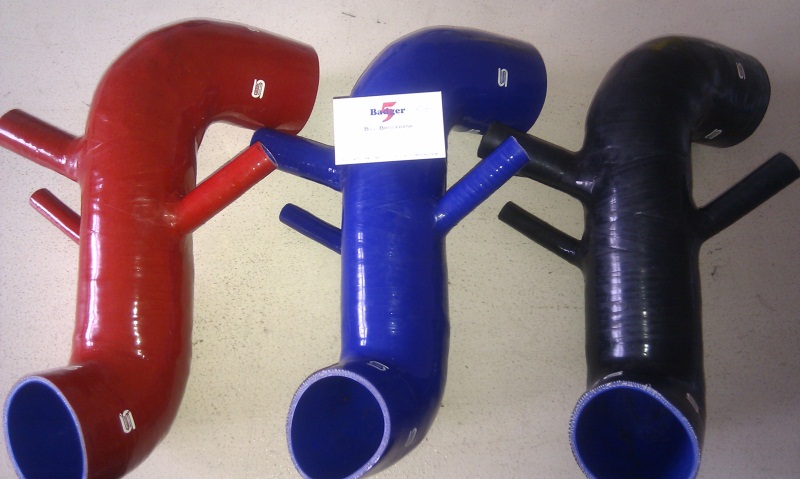

    From Stock currently we have All 3 colours, red (5), blue (9), black (1)
    More stock following....

    Price for this new Full Bore 80mm TIP is as follows:-
    80mm Silicon TIP with Billet Turbo Adaptor - 149
    Includes Stainless Hi-Grip Fitting Clips as part of the launch offer (worth 9)

    Packaged with the FR08001 Filter the Total Induction Kit upgrade is 194 (saving 5) off the JR filter.


    Prices Exclude vat and Carriage
    UK Mainland Delivery is 9.70

  2. challice Forum Member

    Joined:
    Apr 11, 2006
    Likes Received:
    0
    Location:
    wiltshire
    awsome, now that looks so much nicer, ill be having one off these when funds allow, nice work

  3. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos

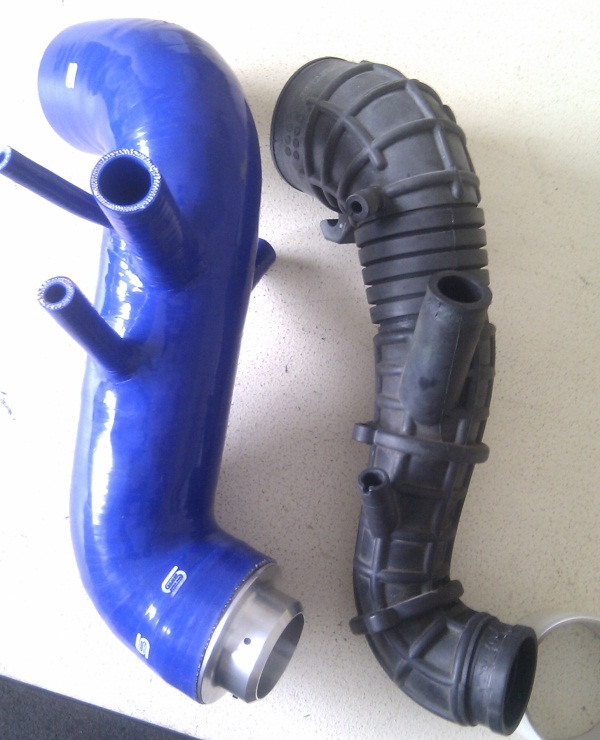

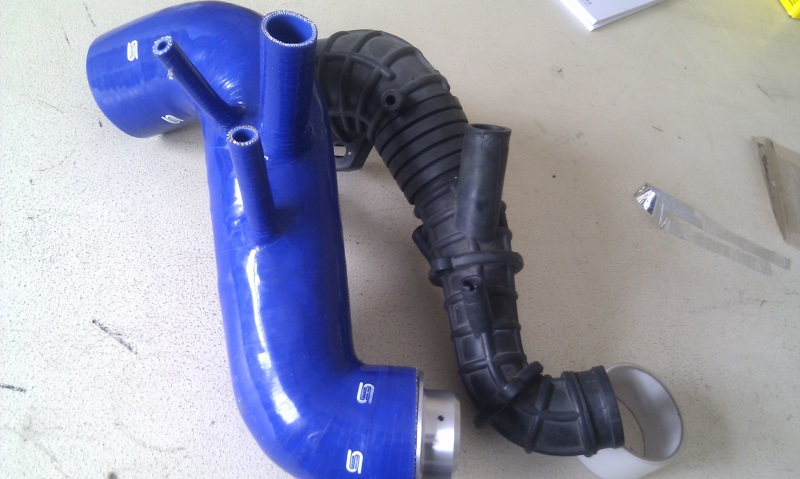

    Comparison of Stock to 80mm one... [:D]
    [​IMG]
    [​IMG]

  4. tinydubs

    tinydubs Forum Member

    Joined:
    Sep 4, 2008
    Likes Received:
    0
    [YOUTUBE]acYDNlMYAaI[/YOUTUBE]

  5. turbotommy Forum Member

    Joined:
    Sep 5, 2006
    Likes Received:
    13
    Location:
    Newcastle upon tyne
    Any way to fit these to a mk3 ibiza setup Bill????? i've bent the hard matrix pipe down like some do but it looks like the cable change brackets/cables are in the way for a larger TIP to fit.
    Mines in a mk2 golf but its just the same & wondered if others had problems or if there was an easy fix fo it.

  6. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    Its K04 turbo fitment.. What are you running?

  7. turbotommy Forum Member

    Joined:
    Sep 5, 2006
    Likes Received:
    13
    Location:
    Newcastle upon tyne
    I'm running a k04 022 Bill.

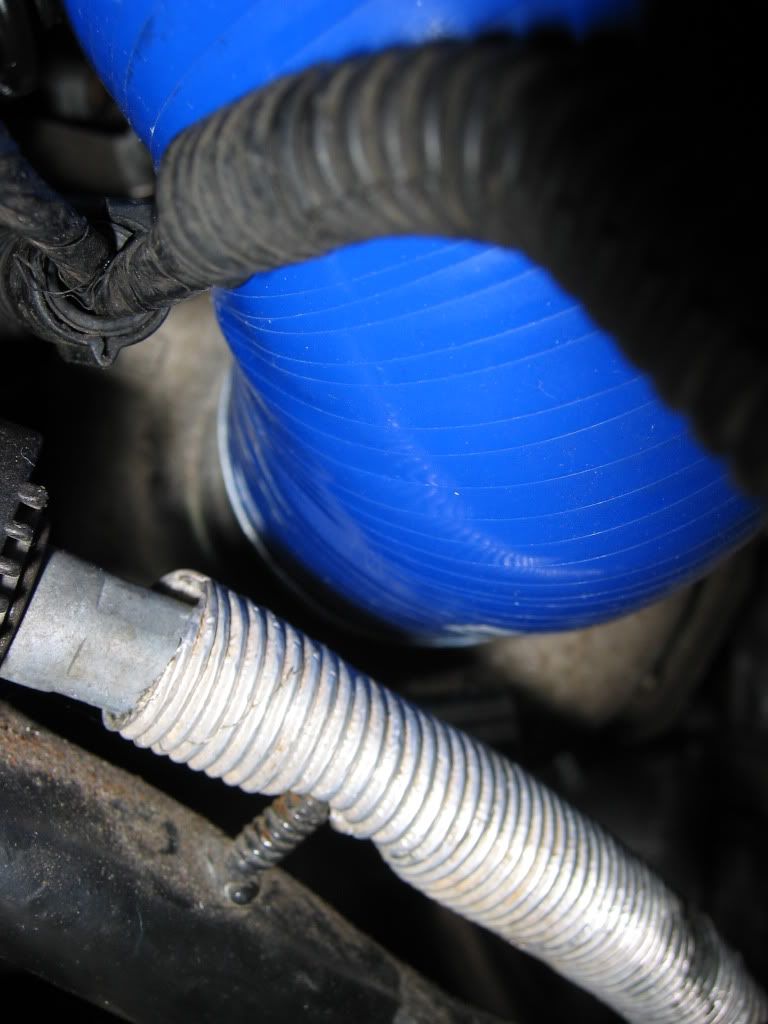

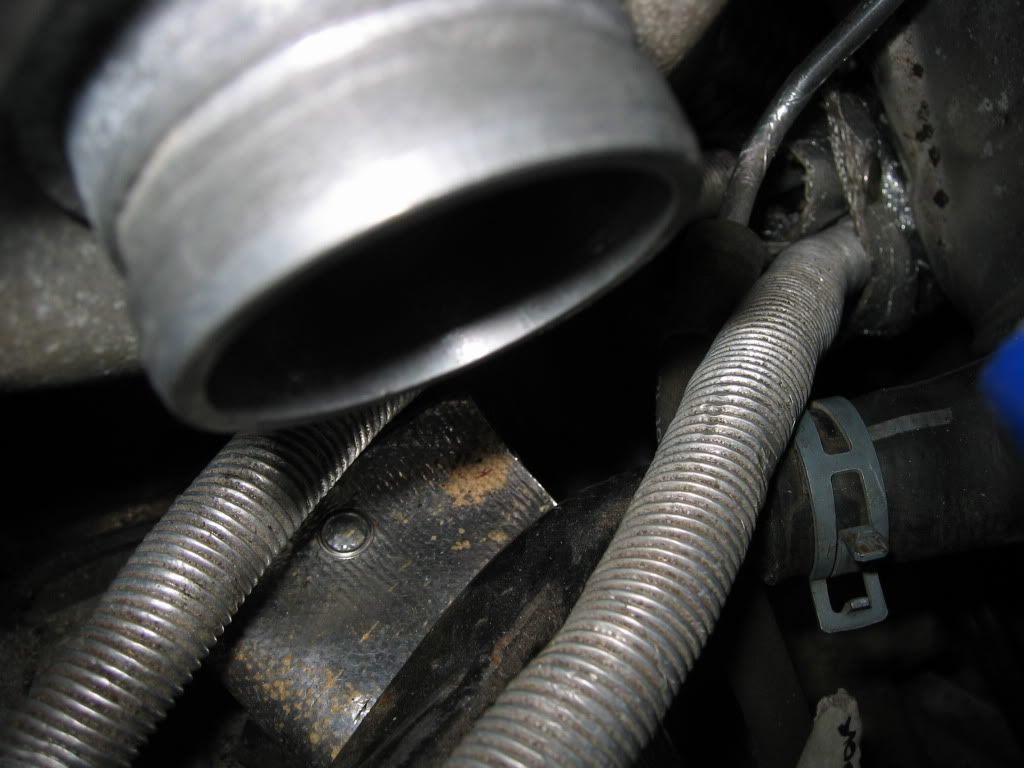

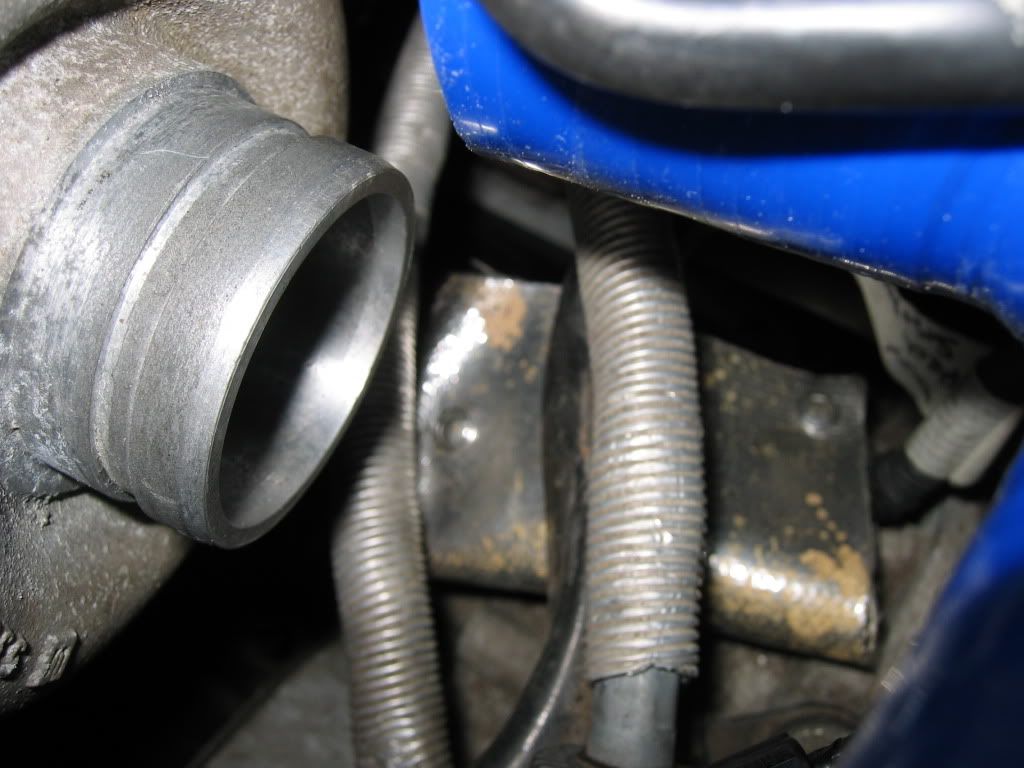

    Here are some pics i took today,the problem is with the higher gear cable to the near side of the car,its close with a normal TIP & i thought the 3" version might not fit due to the larger diameter.

    [​IMG]

    [​IMG]

    [​IMG]

    Not the best pics but i think you can get the gist of what bit i mean.
    I did wonder if any mk3 Ibiza (k04) owners had fitted these & had problems hence the question? but i understand its a new product to the market.
    Thanks
    Tommy.

  8. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    the ibiza k04 guys have issues on abs pipe/unit which gets in the way. they have slotted the mounting bracket for it and moved it enought for the 3" TIP.

    cables not usually the issue. all very close of course!

  9. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos

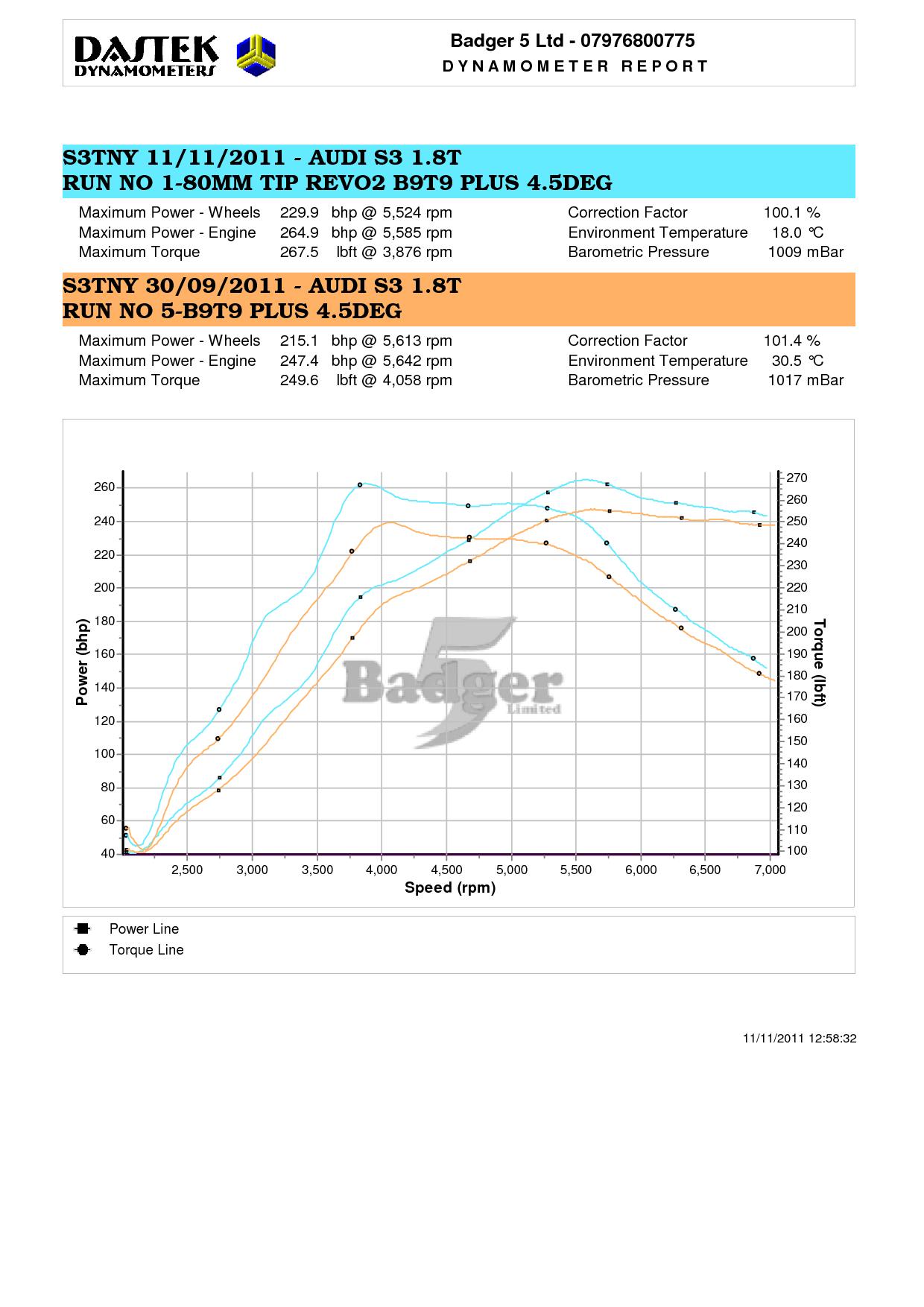

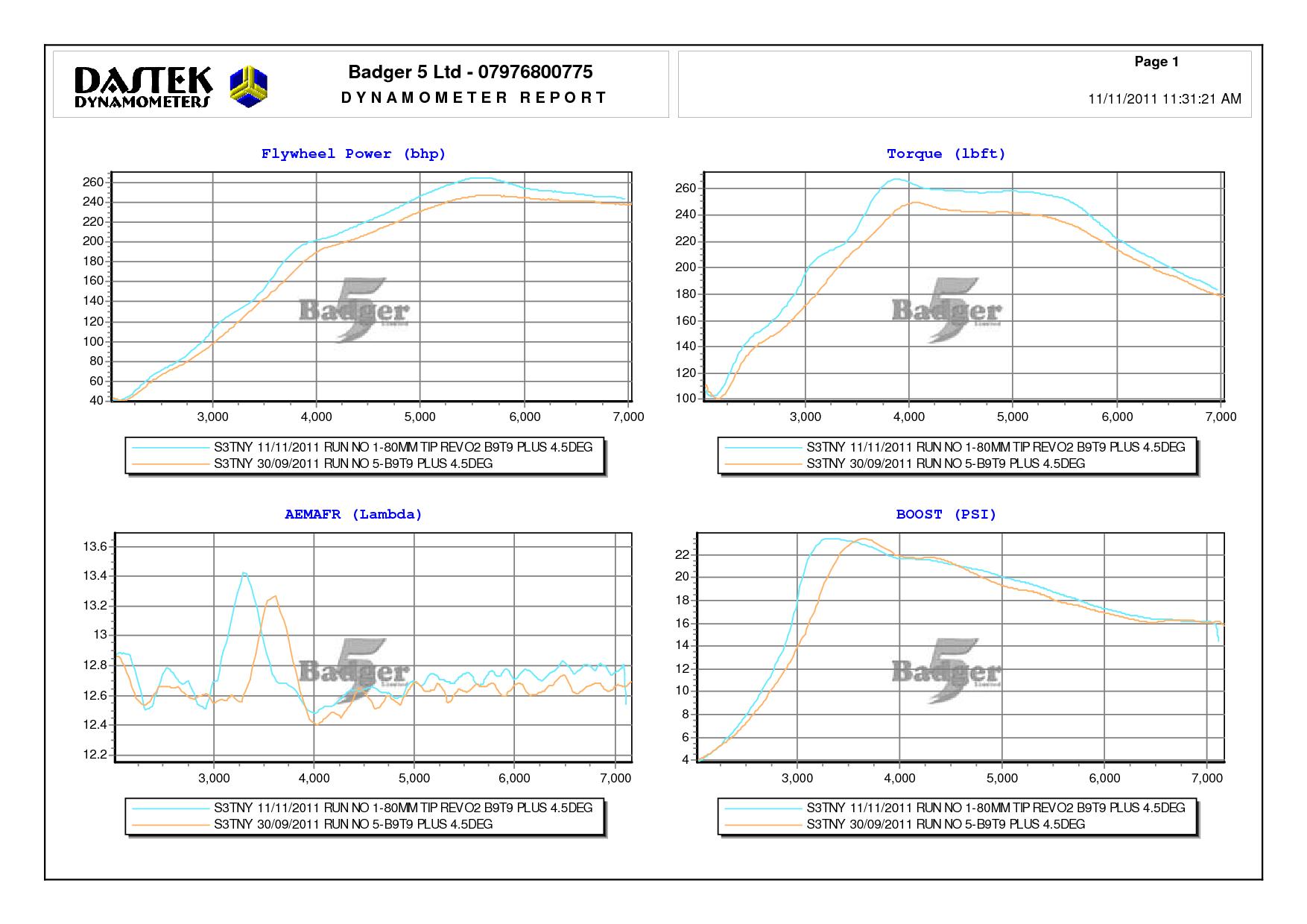

    Power gains realised this week on an S3, which had 80mm K04 B5 TIP fitted only..
    [​IMG]

    [​IMG]

  10. mitlom

    mitlom Forum Member

    Joined:
    Jun 20, 2006
    Likes Received:
    93
    Location:
    Ripley, Derbyshire
    Bill,

    Am I right in the understanding that both runs are with std management and no other mods at all?

    Cheers,

    Tim

  11. bjland4 New Member

    Joined:
    Nov 24, 2011
    Likes Received:
    0
    YES!I agree this :The ibiza k04 guys have issues on abs pipe/unit which gets in the way. they have slotted the mounting bracket for it and moved it enought for the 3" TIP.
    cables not usually the issue. all very close of course
    Thanks!
