Rear axle, back plate to back plate dimensions

Discussion in 'Chassis' started by A.N. Other, Aug 16, 2007.

  1. rubjonny

    rubjonny Administrator Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,016
    Location:
    Bracknell
    how wide is that axle?

  2. turbotommy Forum Member

    Joined:
    Sep 5, 2006
    Likes Received:
    14
    Location:
    Newcastle upon tyne
    Its 1376mm jonny,its stripped down now so i'll double check.

  3. rubjonny

    rubjonny Administrator Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,016
    Location:
    Bracknell
    earlier wider one then! be interesting to find out what the narrower 4 stud beam uses

  4. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    395
  5. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    395
    Passat 1Z TDI 4-stud with drums, '95 model - 1344mm

    - the car I expected to be wider, isn't [:s]

    Managed to measure this from underneath with no probs, so should be an easy measurement for anyone else.

  6. turbotommy Forum Member

    Joined:
    Sep 5, 2006
    Likes Received:
    14
    Location:
    Newcastle upon tyne
    Interesting that is the same width as the 1Z engine toledo,is the front wide track or not? (toledo is not)
    Also measured 2 x 5 stud mk3 golf GTI axles, 1 with ABS & 1 without, both came in at 1358mm.

  7. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    395

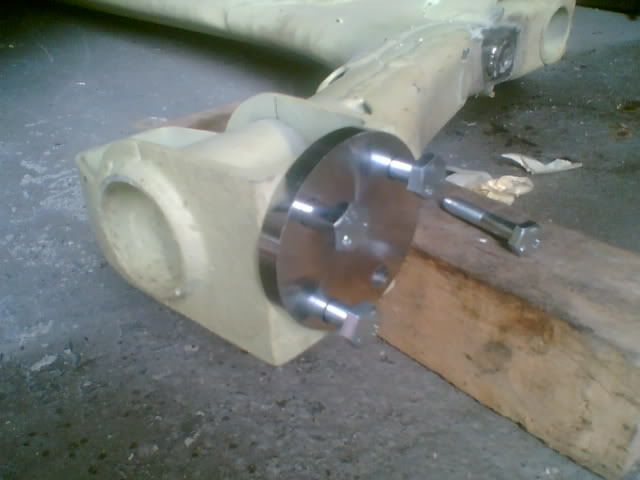

    Before I lose this pic again, 1990 spec Mk2 axle with outer strentheners on the trailing section from here

    [​IMG]

  8. gigaz Forum Member

    Joined:
    Sep 28, 2010
    Likes Received:
    0
    my mk2 axle is like that, but has the internal arb, reference checks out as golf mk2 gti G60 or Corrado G60 (same axle)
    1340mm I'm afraid :(

  9. moryan New Member

    Joined:
    Apr 4, 2014
    Likes Received:
    0
    Hi, new to this forum, was directed to this thread by members of Ed38 and Autostadt.ie. I have a '94 CL. Can someone tell me it's exact length and what's the narrowest mk2 beam I can fit in it's place?

  10. rubjonny

    rubjonny Administrator Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,016
    Location:
    Bracknell
    94 is right on the changeover for the mk3, see the picture at the top of this page. best bet is measure your beam as it could be the same as mk2 or wider! to measure you'll have to jack the rear up (chock front wheels!) then drop the axle off both the rear shocks so you can get a tape measure across

  11. 1.8tguy New Member

    Joined:
    Jan 9, 2010
    Likes Received:
    3
    Has anyone posted the dims for the Mk1 beam? I've been searching but can't find anything maybe I'm missing it, idk.
    I can measure mine tomorrow but I'm not sure if it's actually straight or not.

  12. 1.8tguy New Member

    Joined:
    Jan 9, 2010
    Likes Received:
    3
    Ok, I measured the beam on my Mk1 and it's about 129.6cm. Is this ok, is this bent , I don't know , anyone?

  13. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    395
    The table is being fixed in post 1.

    From one of my notes offline, that's a straight axle :thumbup:

  14. mat-mk3

    mat-mk3 Administrator Admin

    Joined:
    Oct 23, 2003
    Likes Received:
    565
    Location:
    Bristol
    Table fixed:)

  15. 1.8tguy New Member

    Joined:
    Jan 9, 2010
    Likes Received:
    3
    Thank you.
    I'm amazed it's still straight after 35 years :)

  16. rubjonny

    rubjonny Administrator Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    2,016
    Location:
    Bracknell
    all i could findf in elsawin is check the beam gussets, if kinked then replace beam :)

  17. Maks-g60 New Member

    Joined:
    Jan 24, 2016
    Likes Received:
    2
    FB886FDC-34E2-43E6-8298-9EE2C174411D.jpeg Measured a Corrado g60 J reg, 4x100 1344
