    Having read this info a few time's myself and finding it very helpful and linking it to a few people i have decided to copy the info over here for future use. This is based on upgrading the brake's on your Mk4 Golf's and Jetta's, some info maybe useful for those who want to know sizes etc of brakes. I can't promise any of the brakes in here are usable on any other platform that is for you to decide and research further for a more definitive answer. Maybe this can go in the FAQ's or become a sticky.

    The original thread is HERE originally posted by fenwick458 so all credit goes to said person.


    BRAKE UPGRADE INFO

    Heres all the brake sizes on the VAG range, and what they are fitted to as standard.

    VW Golf R32 | Audi TT 3.2 Quattro
    The Front brakes are 334mm x 32mm Vented 2-piece Discs, Twin piston(32mm/42mm) calipers
    The Rear brakes are 256mm x 22mm Vented Discs, 38mm Lucas singles

    Seat Leon Cupra R

    The Front brakes are 323mm x 28mm Vented (grooved/drilled option) discs with 4 piston(34/38mm) Brembo calipers
    The rear brakes are 256mm x 22mm Vented , with 38m Lucas single piston calipers

    Audi TT-Quattro (225hp) | VW Golf anniversary | Golf GTI AUQ | Skoda Octavia VRS | VW Golf V5 170 | VW Golf V6 4 Motion
    The Front brakes are 312mm x 25mm Vented Discs, 54mm ATE single piston calipers
    The Rear brakes are 256mm x 22mm Vented Discs, 38mm Lucas single Piston calipers

    Audi TT (180hp)
    The Front brakes are 312mm x 25mm Vented Discs, 54mm ATE single piston calipers
    The Rear brakes are 232mm x 9mm Solid Discs,

    Golf GTI 1.8T | Golf 130/150 TDI | Golf V5 150 | Seat Leon 130/150 TDI and 20VT
    The Front brakes are 288mm x 25mm Vented Discs, 54mm ATE single piston calipers
    The Rear brakes are 232mm x 9mm Solid Discs

    Golf 2.0 8v | 1.8 | TDI 115 | TDI 110 | TDI 100 | TDI 90
    The Front brakes are 280mm x 22mm Vented Discs, Single piston calipers, caliper carrier integrated into hub (FS III's)
    The Rear brakes are 232mm x 9mm Solid discs

    Golf 1.4 16V | Golf 1.6 16v | Golf 1.6 8v | SDI
    The Front brakes are 256mm x 22mm Vented Discs, single piston calipers, carriers integrated into hub (FS III's)
    The Rear brakes are 232mm x 9mm Solid Discs


    BRAKE DISC INFO

    Heat capacity
    Heat capacity is the amount of energy that can be absorbed by the disc before the temperature gets high enough to cause brake fade. The mass of the disc is proportional to the heat capacity. Therefore, a lighter disc will not allow as much energy to be absorbed as a heavy disc.

    Solid vs Vented
    Vented discs are hollow with internal vanes. This increases the surface area of the disc and allows air to cool the disc mass more effectively. A 5Kg vented disc will cool much quicker than a 5Kg solid disc. In many cases, a vented disc can weigh less than a solid disc and still provide more effective braking because of the cooling effects alone.

    Curved vs straight vanes
    The vanes inside vented discs provide structural integrity to the disc itself as well as cooling. There are several different styles of vanes:
    Straight vanes are the most common because they are easy to manufacture.
    Curved vanes are common in higher performance cars as they promote better cooling better than straight vanes.

    Where does the air go?
    For solid discs, all the air travels over the surface of the disc - the same surface as the brake pads.
    For vented discs, a considerable amount of air flows through the interior. Because it's spinning so fast, it creates a vacuum and air is sucked into the center of the disc and forced out through the edges. The air follows the pattern of the internal vanes.

    Drilled discs
    A common misconception is that the purpose of drilled discs is to promote cooling. This couldn't be further from the truth, The real purpose is to reduce weight.
    Drilling can allow brake dust and gases to escape, but with modern brake pads, this usually isn't a problem. Choosing a drilled disc for that purpose doesn't make a whole lot of sense.
    Many high performance cars like Porsche and Mercedes AMG come with drilled discs from the factory. For these cars, the drilling is mainly about the looks, just like bright red calipers. When people do serious high-performance driving on a trackdays, they usually swap to regular plain discs.
    Drilled discs generally wear out brake pads faster and produce much more brake dust as a result.
    Drilled discs have a shorter service-life than plain discs and tend to develop stress fissures/cracks over their lifetime

    Grooved Discs
    Grooved discs keep the pad surface clean and allow certain gasses to escape which improves performance. not too many grooves though, you only need 6 or so, any more and it it just for looks(e.g tarox cheese graters)
    For street driving they may make a marginal improvement in initial brake "bite"
    Grooved Discs are great for shedding water and mud off the rotor surface as in Rally racing or wet-weather racing.
    Grooved Discs do accelerate pad wear and produce more dust just like drilled discs do. They also add noise and vibration into the system. For many these issues are annoying enough to not choose grooved discs, unless you do alot of rallying!

    Two-piece discs
    Two piece discs have several advantages including lower weight while maintaining most of the heat capacity and better cooling by having a more open centre section
    Two piece discs increase costs and generally a poor choice for street cars. For racing, they are great!

    Plain discs
    Plain discs are the best choice for 99.9% of applications

    Name brand vs non-name discs
    Why pay double the money for a Brembo discs vs. GSF cheapo's? You guessed it there is pretty much no benefit. Its all the same stuff, Spend you money on brake pads

    Specialist Discs (carbon, carbon-ceramic, carbon-kevlar, etc.)
    Some really expensive cars come with an option for fancy brake materials. These brakes are excellent for trackdays since they are relatively lightweight but can withstand extreme temperatures without brake fade. This provides a competitive advantage for racing.
    For the street, it doesn't help much at all, and they squeal alot and wear fast.

    Warped discs
    if your discs are warped its because you have heated them up too much during hard breaking. probably knackered but you might be able to get them skimmed.

    BRAIDED BRAKE LINES

    Braided Brake hoses
    Braided brake lines don't expand or bulge out, therefore reduce pedal travel, and increase the force applied to the brakes. I have never tried braided lines before, I think they don't really do alot on modern cars (especially the golf) because the servo makes the pedal feel soft anyway. It is a FACT that they apply more power to the caliper, but the caliper can easily apply twice the amount of pressure to the discs than the tyres are capable of handling anyway, i mean unless you have a track car with wide slick tyres, these are not really necessary.

    BRAKE FLUID

    If you want to improve your braking power on a budget, try using a Performance brand of Brake fluid and bleed your brakes. it makes alot of difference!
    Chances are your fluid now is old and has absorbed some water and air and is not as good as it should be so the pedal will feel spongy. Sort this by bleeding your brakes and use a decent brand of fluid, ATE Super Blue Racing sounds good, and it's blue! how cool is that! anyway, it does make it easier to see when the new fluid has come through, and it has a low viscosity, it resistant to absorbing water, and has a boiling point of 200C, which means less brake fade. another one is Castrol SPF Racing, it's expensive though!

    BRAKE PADS

    There's lots of different types of these on the market, EBC, Mintex, Tarox, Pagid, Black Diamond, Brembo to name a few.
    They are just made better, and depending on what you go for, they will provide better braking power / low dust etc..
    They come in different levels of aggressiveness, for example the EBC range is as follows:

    EBC Blackstuff - Standard use
    EBC Greenstuff - Street
    EBC Redstuff - Fast Street
    EBC Yellowstuff - Track
    EBC Bluestuff - Race

    if you go for the "race"option be prepared to get more dust, squealing/vibrations and accelerated pad wear and a harsh feel to the brakes - unsuitable for normal driving so thats why theres a range.
    buying performance brake pads will make a difference to your braking power, for not a lot extra cash over the standard pads.

    BRAKE BIAS

    Ever wondered why the front brakes are always bigger? By design most original factory brake systems do not split the brake force 50/50 between the front and rear axles. This is because under braking the front tires offer increased traction as weight is transferred forward. This additional traction can be utilized by increasing the brake force applied to the front axle vs. the rear. The outcome is a bias split that is more in the order of 70 front/30 rear resulting in shorter and more controlled stops.


    BIGGER IS NOT ALWAYS BETTER........
    Putting bigger brakes on may not always be a good idea.
    For chipped/re-mapped cars the obvious upgrade is 312mm fronts because it's so easy, and only requires carriers and discs for most models(not SDI, TDI 90, 100, 110, 115, 2.0 8v, 1.6 8v, 1.6 16v, 1.4 16v,). because you have increased the power of the engine, the power to wheel will not be de-creased as it would if you just put bigger brakes on.
    But, putting the 312mm conversion on a 1.4 for example, along with bigger wheels than standard and you will be adding alot of weight to your wheels, and the engine will be put under more strain, therefore reducing your acceleration. and Big brakes, contrary to popular belief, don't actually do as much as people think in terms of stopping power increase, it's mainly that the disc heats up less, cools faster and therefore can stop the car more effectively, corner after corner without getting brake fade. IMO, the best brake mod for the smaller engined cars would be Performance pads and Performance Brake fluid, I wouldn't bother with drilled and grooved discs they just make your wallet lighter.

    PICTURES

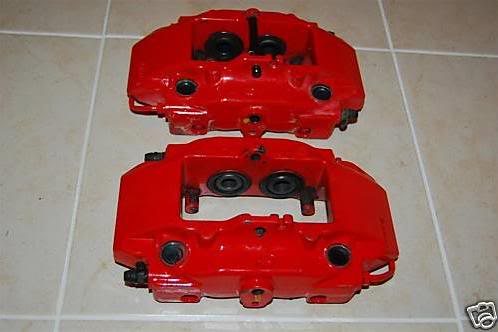

    LCR Brembos

    .:R32 Fronts

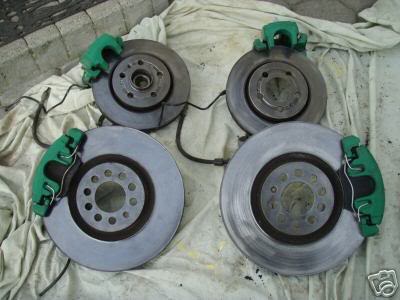

    312mm and 256mm Setup from an Octavia VRS

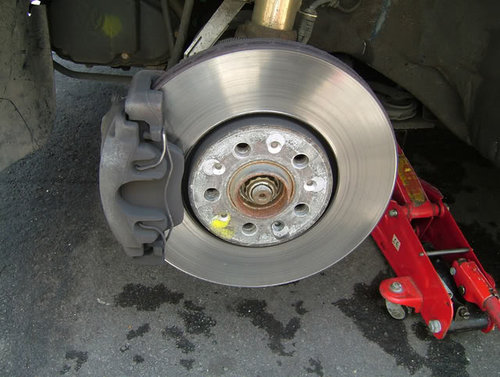

    288mm Fronts

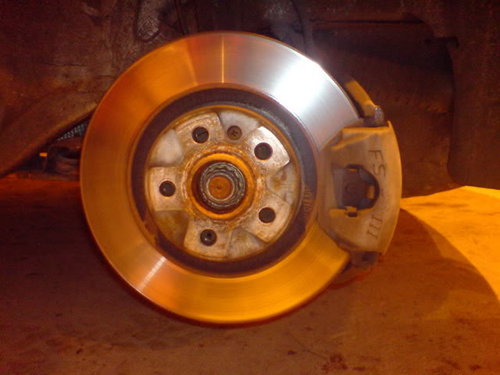

    280mm FS-III Fronts

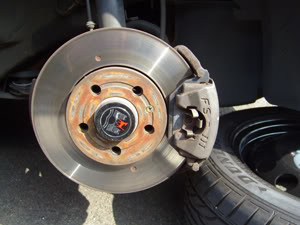

    256mm FS-III Fronts

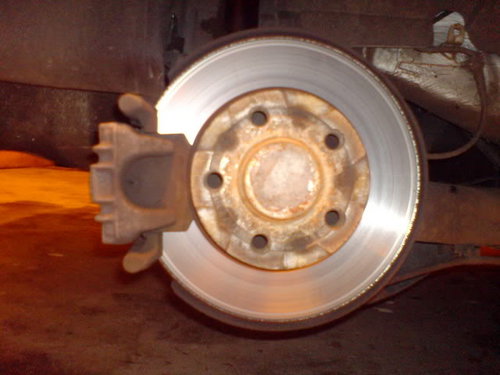

    256mm vented rears

    232mm Rears

    PART NUMBERS

    256mm Rear splash Guards 1J0615609 & 1J0615610
    256mm Caliper Carrier right 1JO 615 425 E
    256mm Caliper Carrier left 1JO 615 426 E
    256mm Caliper right 8NO 615 424 C
    256mm Caliper left 8NO 615 423 C
    256mm Discs 8LO 615 601
    256mm OEM Pads 4BO 698 451
    Rear Wheel hub with bearing 1JO 501 477 A
    Front left 312mm Shield 1J0615312B
    Front right 312mm Shield N90305302

    UPGRADES

    Front

    The easiest upgrade of all is the 288mm to 312mm front setup. All this requires is 312mm Carriers and Discs(splash guards if you want, but they are not essential)

    owners of cars with the 288/312mm setup can also upgrade their calipers from 54mm to 57mm ones. not sure what model in the VAG range the calipers come from, but they are identical apart from the extra piston size

    [​IMG]

    it's also not proven if this is worth it, in theory it will work, but it's not been done much or well documented so do this mod at your own risk. possible drawback might be increased pedal travel

    Upgrading 280mm FSIII's (AKA not moddable without major work) take a bit more work as you have to change the hubs. these can be acquired from a breaker for relatively cheap, if the bearings have a little bit of play in, thats OK they will tighten up once the driveshaft is in place. if in doubt consult a garage. You can get new bearings fitted for relatively cheap so it might be worth it in the long run to get them changed whilst they are off the car. then once you have the hubs, you will need 312mm calipers, Carriers, Pads and Discs, and splash guards.

    Upgrading 256mm FS-III's to 280mm can be done by changing the hubs and discs alone, the calipers and pads are the same.

    Rear

    The standard 232mm Solids can be upgraded for the 256mm Vented setup, the bigger carriers & calipers just bolt straight on if they come from a 2WD car. If the calipers & carriers have come off a Quattro/4 Motion then you will need some 6mm spacers.

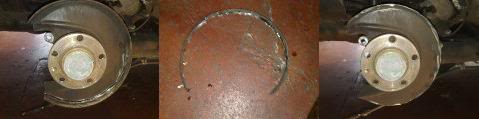

    You will need to modify your standard splash guards as they curl in over the top of the std disc, and would catch on the new, larger disc. or alternatively you can fit 256mm splash guards, but the bearing has to come off, this can be tricky to do without spiting the bearings, a hydraulic puller and hammer chisel to free the race from the stub axle is what I used. EDIT, i would recommend just replacing th wheel bearings if you are planning on fitting new splash guards

    Upgrading the rear brakes does not do much in terms of braking power, reducing your stopping distance. The rear brakes only account for about 30%. Most people upgrade just for looks.

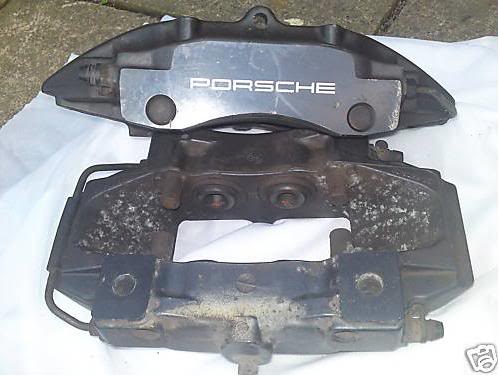

    PORSCHE CALIPERS

    Porsche calipers are monoblock which means they are machined out of 1 solid peice of metal and are lighter and more rigid. LCR brembos are not monoblock, and heavier and not as rigid.

    996 rears:

    Are a waste of time, and are not an advisable upgrade

    the calipers you need are part numbers 996.352.421 and 996.352.422 but beware that this is the same part number as boxster rears and DO NOT FIT! luckily you can tell the difference by just looking at the calipers, see the pics below:

    996 REARS will be either red, silver or gloss black

    BOXSTER REARS are a dull anodized black finish

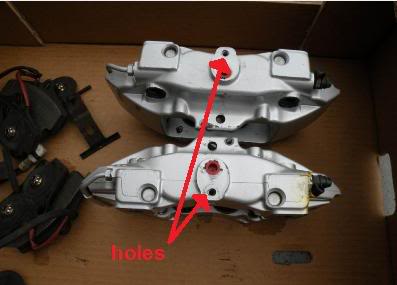

    there is an M6 hole drilled next to where the brake line connects on the 996 rears, shown in the photo below:

    Boxster fronts
    part numbers for these calipers are 986.352.421 and 986.352.422, they are very similar in appearance to the 996 rears above, but have some subtle differences. the geometry is the same though, so the same carriers are used as above with the 996 rears. they also have larger pistons which are 36mm and 40mm

    996 fronts / 996 turbo rears

    the part numbers for these are 996.351.425 & 996.351.426 (996 fronts) or 996.352.425 & 996.352.426 (996 turbo rears)
    piston sizes for the 996 turbo rears are 28mm and 30mm, and these use a slightly larger pad then the rest of the porsche rear calipers.
    piston sizes for the 996 fronts are .................
    these require a 28mm disc, there is a 330mm disc available from DaveB1970 which is much taller than the 312mm or 325mm disc and means there's less chance of needing a spacer to clear the calipers

    for the bigger calipers 429&430 and 431+432 then you need a 34mm discs.

    WHEEL CLEARANCE

    Before you get excited and rush out to buy a BBK, you gotta think about your wheel clearance.

    ***NOTE*** rims are different sizes,different thickness walls, and therefore some may not fit.
    these are the minimum wheel sizes, some may be very close, and may need the wheel re-balance with the weights put on the outside(not the rim face, but just not in the way of the caliper)
    also some rim designs may require some spacer to fit around the caliper.

    ***alot of BBS split rims or deep dish rims will struggle to clear brembos or other monoblock calipers, normally a 10mm spacer is all thats needed to clear them***

    334mm R32 brakes require 17"wheels
    312mm TT brakes require 16"wheels
    288mm Brakes require 15" wheels
    280mm Brakes require 15" wheels

    256mm Rears need a 16"to clear the caliper(15"spare doesn't fit)

    most porsche brakes need a 10mm spacer on the front

    PAINTING CALIPERS

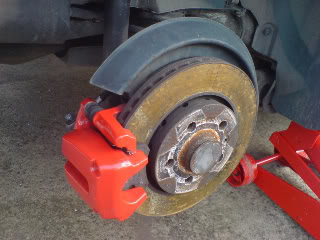

    most people paint there calipers to make them look better, the general consensus on the forum seems to be with big brakes go Anni Red or .:R32 Blue, but if you have standard calipers then a more subtle tone(black, silver, gunmetal grey) might be in order, because nothing looks more "max power" than small bright red/orange/yellow calipers.

    before you paint them you will have to remove all the brake dust and the majority of the rust. then mask up the area you don't want paint on and paint. Hammerite smooth and B&Q Japlaq seem very popular. these are cheaper than a special caliper painting kit, which is just in a smaller pot and probably comes with a tin of brake cleaner worth a fiver, and costs more than twice the price.

    give them a few coats and for best results don't drive in-between!

    BLEEDING BRAKES

    It's important to do this properly, having even a little bit of air in there and its negating the big brakes you've just put on! I recommend using the Gunson Eezi-Bleed system, it costs about 10-15 IIRC.

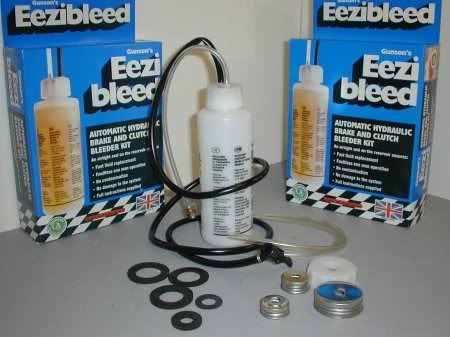

    you just fill up the bottle, fit the correct reservoir cap from the box, then connect up the bottle to the spare tyre (20psi works best). the system is now pressurised and as soon as you crack a nipple fluid will come out, just wait until the new stuff comes through then close it off. simple!

    bleeding the brakes the old school way (as suggested by haynes manuals ) can damage the seal in the master cylinder and cause the brake pedal to feel soft all the time and travel quite far. this is because under normal circumstances the piston only moves 5-10mm at most, but when the piston goes the full length of the cylinder it goes over the rough and pitted surface, this can damage the seal and sometimes flip it rendering the MC useless.

    Last edited by a moderator: Mar 6, 2020
  2. Josh Gateh New Member

    Joined:
    Oct 15, 2019
    Likes Received:
    2
    Hey, would you- or anybody - know which car rear calipers with smaller (34mm I think?) pistons are off of? Came across them from my local scrappy and the breaker didn't have any info on them

  3. rubjonny

    rubjonny Administrator Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    1,881
    Location:
    Bracknell
    pre-87 mk2 golf, scirocco and various others have 36mm, post-87 mk2 switched to 38mm.

    34mm alloy versions are fitted to lower power cars such as polo and lupo :)

  4. Josh Gateh New Member

    Joined:
    Oct 15, 2019
    Likes Received:
    2
    How about the aluminium ones from a passat/golf/jetta mk4 rubjonny? Any particular ones I need to get or they're all the same? I'm looking to upgrade the rear calipers on my mk2 gti. Thanks for the replies so far

  5. rubjonny

    rubjonny Administrator Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    1,881
    Location:
    Bracknell
    with the aloy ones theres the 34mm polo ones i mentioned, mk4 has 38mm and 40mm so watych out for that. personally I prefer mk3 38mm calipers as they're a dirtect fit without needing conversion hoses. but mk4 type are newer and getting cheap these days so added cost of conversion hoses doesn't really matter

  6. Josh Gateh New Member

    Joined:
    Oct 15, 2019
    Likes Received:
    2
    Well, Mk3 stuff is not easy to come by where I live. ONTOH seems I have myself both 38mm & 40mm sets. The 40mms are in quite good condition compared to the 38s + ones currently on the car, so I guess they'll be coming on :thumbup:. Cheers rubjonny!

  7. rubjonny

    rubjonny Administrator Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    1,881
    Location:
    Bracknell
    go for the mk4 stuff then, nothing wrong with em just make sure the bleed nipples come loose as they're prone to seizing due to differing metal corrosion

    Josh Gateh likes this.
  8. Josh Gateh New Member

    Joined:
    Oct 15, 2019
    Likes Received:
    2
  9. Dave Wootton New Member

    Joined:
    Apr 22, 2020
    Likes Received:
    0
    Great read this - can you change the rear 232mm solids for 232mm vented - to allow you to keep the same calipers?
