The Third Spring

Discussion in 'Track Prep & Tech' started by RobT, Apr 23, 2017.

  1. RobT

    RobT Forum Junkie

    Joined:
    Oct 24, 2003
    Likes Received:
    936
    Location:
    Cheshire

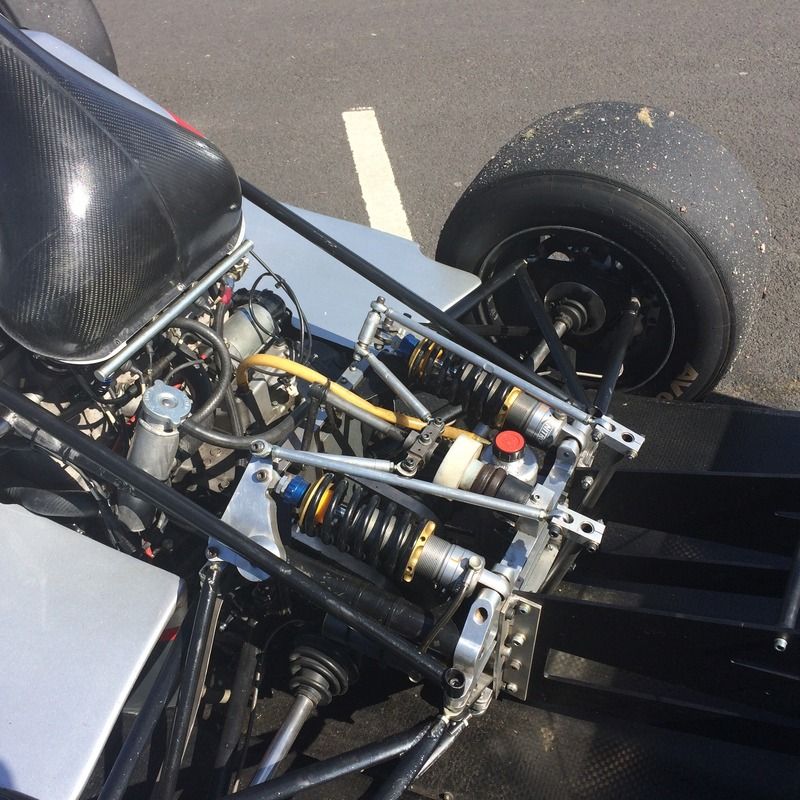

    Interesting photo from Aintree Spring Sprint yesterday - and very nicely illustrates 'the third spring' concept in suspension design.

    [​IMG]

    This one is on a Force single seater.

    One of issues in cars with significant downforce is that they need springs strong enough to stop the car hitting the ground at speed when they might have 500-1000kg of downforce. This compromises grip at low speed when softer springs are needed to allow the wheels to ride the bumps. So to get around this, the concept of 'the third spring' was invented. On the car illustrated, the spring is a bump rubber and some bits of nylon, but on other cars this is often a small spring and damper unit.

    If the suspension compresses on both rear wheels at the same time, as with downforce, the rocker arrangement slides backwards and brings the bump rubber into play, increasing spring rate.

    If either wheel moves independently, as at lower speed to ride a bump, the rocker merely rotates rather than moving backwards to engage the bump rubber.

    Simples :)

    Ave it

    Rob

    oldnick, Toyotec, blis and 6 others like this.
  2. Tristan Forum Junkie

    Joined:
    Apr 25, 2006
    Likes Received:
    266
    Location:
    Southern IRELAND
    Ingenious. Like a Watts linkage, when you see it it's so obvious you wish you'd thought of it.

  3. Toyotec

    Toyotec CGTI Committee - Happy helper at large Admin

    Joined:
    Jul 26, 2006
    Likes Received:
    2,968
    Location:
    Creating Pfredstarke
    Very informative :clap:

  4. oldnick

    oldnick Paid Member Paid Member

    Joined:
    Apr 27, 2009
    Likes Received:
    41
    Location:
    Southwell, Notts
    Neat explanation :)

    One question; what are those alloy links across the top then jointed down the back for?

  5. RobT

    RobT Forum Junkie

    Joined:
    Oct 24, 2003
    Likes Received:
    936
    Location:
    Cheshire
    anti-roll bar

    oldnick likes this.
