A VW 16v camshaft study.

Discussion in '16-valve' started by Toyotec, Feb 9, 2008.

  1. Ade.Mk1 Forum Member

    Joined:
    Oct 24, 2003
    Likes Received:
    1
    Location:
    Staffordshire
    Cheers John.

    They didn't happen to measure the cam duration, overlap or lift did they ?

    The valves are sodium filled as standard, Dave Crissell told me that when he ported the head.

    I think the KR cams are fine because the rolling road plots of power and torque are very smooth.

    The loss of boost may be a leak, also could be the G60 seals (they were replaced no more than 5000 miles ago though, so I doubt it).

    Not sure how to check for a boost leak really, perhaps some controlled smoke ?

    I may just be chasing my tail as 6psi might be all that the G60 can muster in this configuration !!

  2. azur Forum Member

    Joined:
    Nov 9, 2008
    Likes Received:
    0
    Location:
    Sussex
    Mate, your a legend. thanks:thumbup:

    Last edited by a moderator: Jan 29, 2018
  3. Nellis Forum Member

    Joined:
    Jun 24, 2010
    Likes Received:
    9
    Location:
    Cape Town, South Africa
    Nahh, its my job... (and passion)

  4. rubjonny

    rubjonny Administrator Staff Member Admin

    Joined:
    Oct 31, 2003
    Likes Received:
    3,298
    Location:
    Bracknell
    Nellis: is that pre or post 94 9a cams you measured there?

  5. Nellis Forum Member

    Joined:
    Jun 24, 2010
    Likes Received:
    9
    Location:
    Cape Town, South Africa
    John, I'm stuck for a reply here; I don't know. Their casting ID was 027M. The file however, dates back to 21 Nov 2001.

  6. Toyotec

    Toyotec CGTI Committee - Happy helper at large Admin

    Joined:
    Jul 26, 2006
    Likes Received:
    3,320
    Location:
    Creating Pfredstarke
    Nellis,
    Thanks for taking time to actually measure and validate the infomation that was posted earlier in this thread.

    I will update the infomation I posted with your actual measurements.

  7. danster Forum Addict

    Joined:
    Apr 2, 2008
    Likes Received:
    15
    Out of interest, I have a pair of cams out of a late 6A Audi here. 051 103 373D head. This is the ABF type of head, but when fitted to a 6A engine it is running on K jet or KE jet, so may explain different cams specs from ABF.

    Inlet marked as 051 101 with a single letter H and a single number 1.
    Base circle = 38mm, Peak cam lift = 10mm

    Exhaust marked as 051 102 with a single letter L and a single number 2.
    Base circle = 38mm, Peak cam lift = 10.8mm

    The single markings could well be relevant as they are in 8v engines for identifying cam differences. eg Diesel turbo or NA

    Last edited: Jun 25, 2010
  8. Toyotec

    Toyotec CGTI Committee - Happy helper at large Admin

    Joined:
    Jul 26, 2006
    Likes Received:
    3,320
    Location:
    Creating Pfredstarke
    That would be 051 103 373 cams from a post 94 9A.

  9. Toyotec

    Toyotec CGTI Committee - Happy helper at large Admin

    Joined:
    Jul 26, 2006
    Likes Received:
    3,320
    Location:
    Creating Pfredstarke
    That relate to this piece of missing information?
    Is Nellis still out there with some measurements.

    Also I have vaguely seen the AAL code mentioned and could never find anymore information. Could you expand on some details for this 16v varient?

  10. Nellis Forum Member

    Joined:
    Jun 24, 2010
    Likes Received:
    9
    Location:
    Cape Town, South Africa
    That, unfortunately, was the only OE 16v cams I had.

    The AAL was K-Jet and used in South Africa in the MK2. 112kW (150bhp) IIRC.

  11. Toyotec

    Toyotec CGTI Committee - Happy helper at large Admin

    Joined:
    Jul 26, 2006
    Likes Received:
    3,320
    Location:
    Creating Pfredstarke
    This was a 2.0 or something? Seriously anymore data you could PM?

  12. LeftcoastTigger Paid Member Paid Member

    Joined:
    Jan 5, 2010
    Likes Received:
    3
    Nellis, many thanks for posting the 9A, ABF, and KR camshaft specifications - - graphics + hard figures = unbeatable combination

    By chance do you have any aftermarket cam profiles you can post, again comparing with oe ABF?

    Have fond memories of the table cloth, P.E. and Louis Trichardt, of all places!

  13. Nellis Forum Member

    Joined:
    Jun 24, 2010
    Likes Received:
    9
    Location:
    Cape Town, South Africa

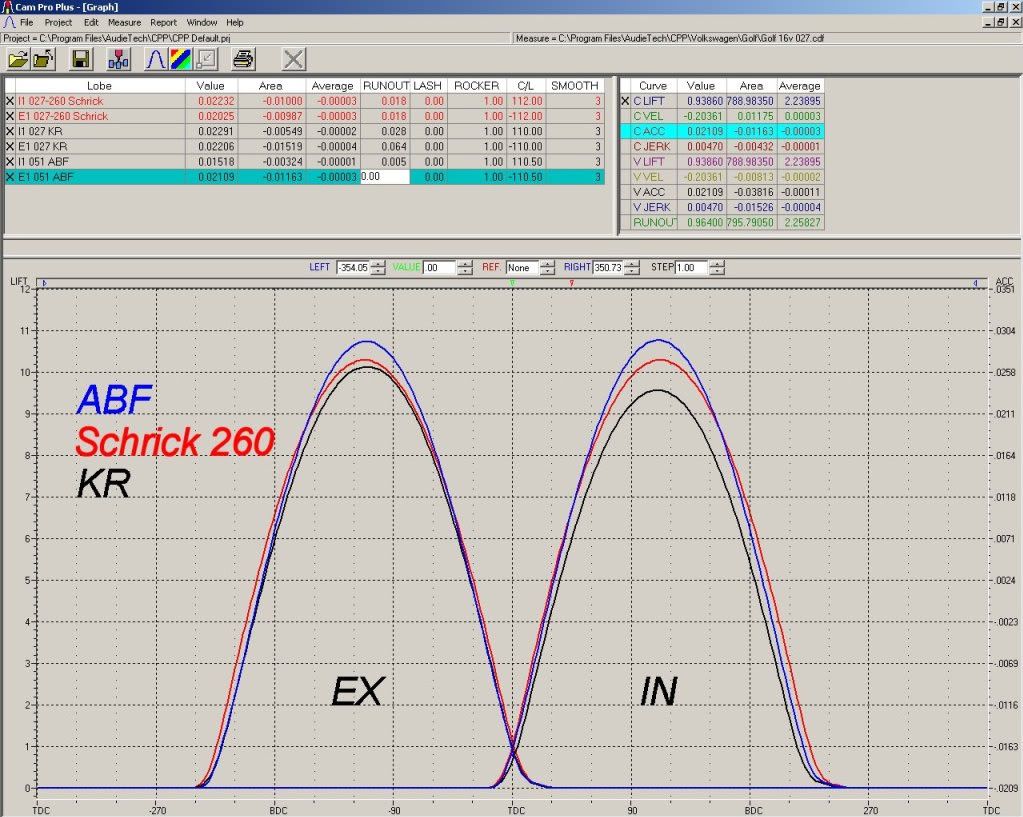

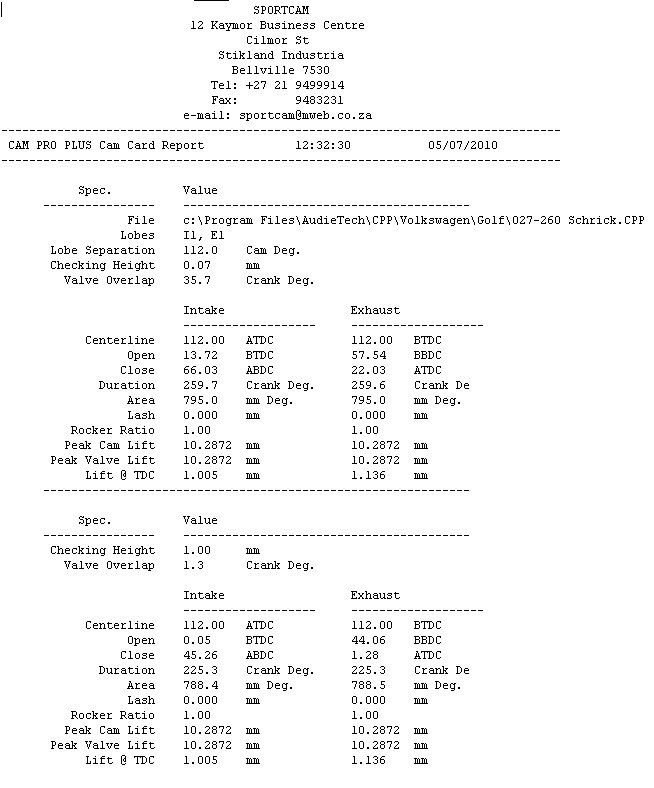

    I had quite a few.... until my previous laptop became part of our local "wealth redistribution program" [:^(]. This is the "old" Schrick 260 x 10.3mm (220.E1.601-00 / 220A1.601-00).

    [​IMG]

    [​IMG]

    Last edited by a moderator: Jan 29, 2018
  14. chrismc Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    0
    Great stuff Nellis, many thanks. A picture paints a thousand words...

    I am going to persist with my ABF cams in kr engine:thumbup:

  15. RobT

    RobT Forum Junkie

    Joined:
    Oct 24, 2003
    Likes Received:
    975
    Location:
    Cheshire
    yep - great graphic to show that abf is the std cam of choice - thanks :thumbup:

  16. ben87 Forum Member

    Joined:
    Nov 13, 2005
    Likes Received:
    0
    Location:
    Oxford and Pompey
    Apologies for being thick, but where are you finding the part number on the cams?

  17. ben87 Forum Member

    Joined:
    Nov 13, 2005
    Likes Received:
    0
    Location:
    Oxford and Pompey

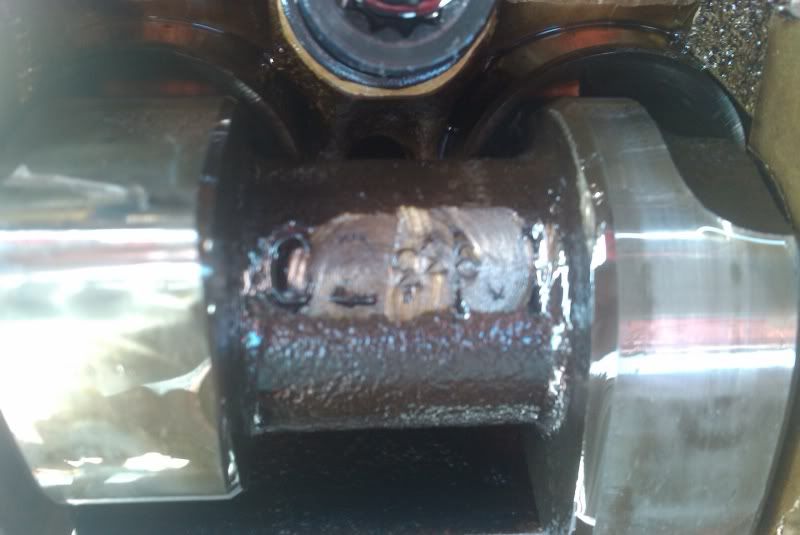

    I have found this on the inlet cam on my KR.

    Someone has ground away the "027" and stamped "933" on there. Is this normal?

    [​IMG]

    Last edited by a moderator: Jan 29, 2018
  18. Nellis Forum Member

    Joined:
    Jun 24, 2010
    Likes Received:
    9
    Location:
    Cape Town, South Africa

  19. Gambit

    Gambit Paid Member Paid Member

    Joined:
    Oct 24, 2003
    Likes Received:
    30
    regrinds?

  20. ben87 Forum Member

    Joined:
    Nov 13, 2005
    Likes Received:
    0
    Location:
    Oxford and Pompey

    Well, that sort of helps :lol: Can you/anyone elaborate?

    The cams in the car both say "027" (now "933" on the inlet) and "WTR" and they are in an 051 head in a 1990 16v.

    The cams i have in the garage from an 87 16v in an 027 head both say "027" and "WWO".
