NEW DYNO for Badger5 - Premises move to larger shortly also

Discussion in 'Badger5' started by badger5, Sep 10, 2008.

  1. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    currently weight

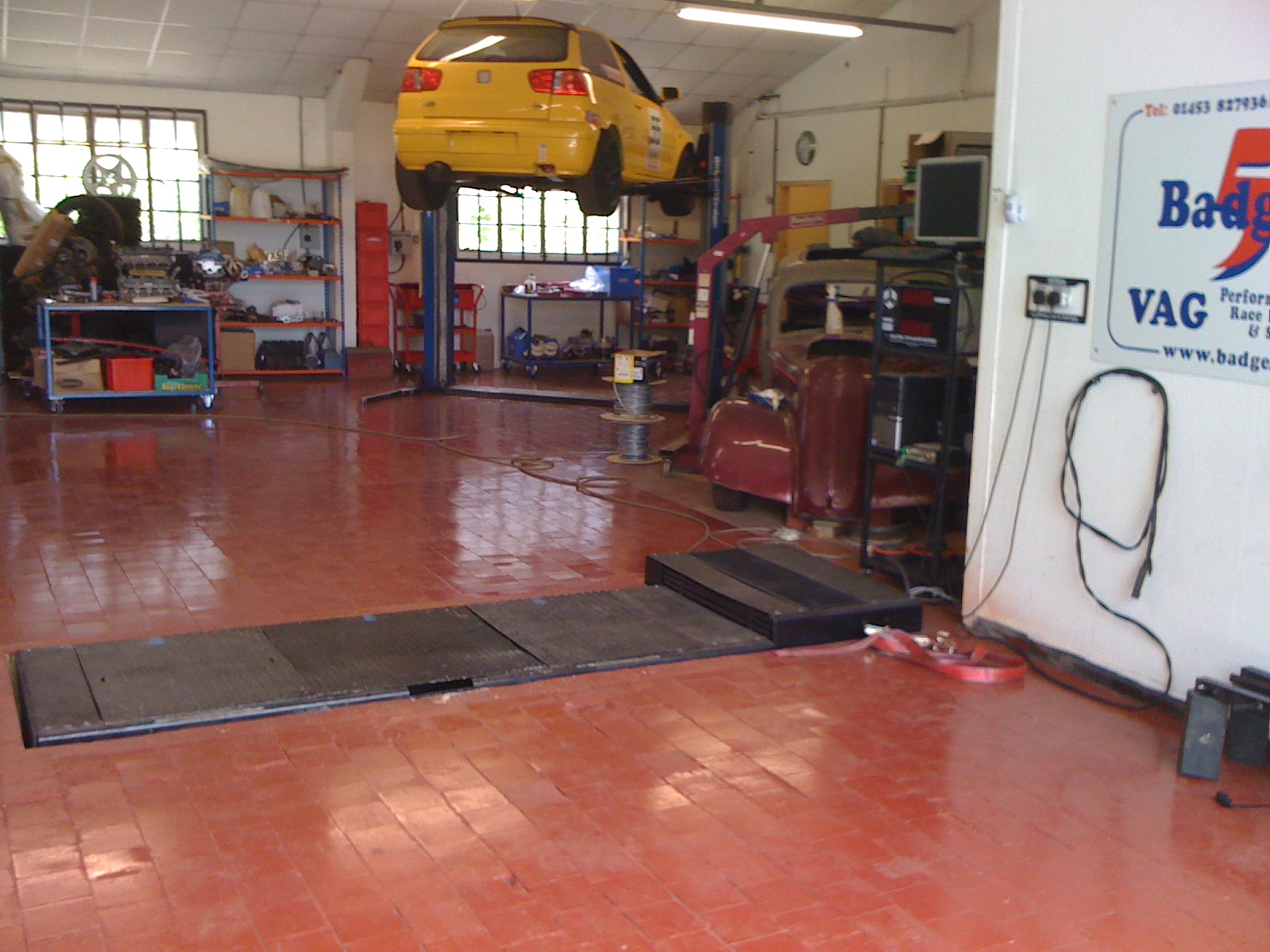

    it can be bolted down.. will see how it goes. it cant go far, 25mm around the edges

  2. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    394
    Thanks - just curious, first time seeing one installed and all that :thumbup:

  3. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    me too :)

  4. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12
    Just limit it to non 8v's mind as we wouldn't want the torque to rip it back out :lol:.

    Nice updates Bill

  5. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    wiring it tonight hopefully
    painted some more floor this afternoon, got mrsb lupo rear shocks replaced and an mot this afternoon

    :)

  6. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    christened the dyno today

    hehe
    went ok.
    golf 3 8v supercharged on it.. seemed ok, planted on rollers - 148bhp, 150lbft and sweet 12:1 afr on full load, which i was chuffed with after only mapping it on the m5 so far. :)
    playing with settings
    lots to learn.

    lupo was too low, so will mod dyno tomorrow and try again.

    tufftys s3 went on for a few runs also, playing with ramp rates for higher powered cars was interesting. some evidence of wheelspin, but nothing which upset the dyno it seems.. dyno can hold the gt30 easily, when holding loads.

    more manual to read :)

    awesome to see it running finally

    big 600mm diameter 1442rpm fan arrived today which i need to wire up to 3phase and check out how to wire it to 2 speed :confused: somehow.

  7. sambo Paid Member Paid Member

    Joined:
    Jan 12, 2004
    Likes Received:
    441
    Location:
    United Kingdom
    Well done Bill, chuffed for you, must be such privilege having a dyno, and i bet few late nights to be had in the workshop having a play! ;)

  8. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    394
    Excellent - no messing about! Must bring the calibration diseasel along at some point :)

  9. Toyotec

    Toyotec CGTI Committee - Happy helper at large Admin

    Joined:
    Jul 26, 2006
    Likes Received:
    3,067
    Location:
    Creating Pfredstarke

    Nice one Bill. Need to get your monster on there for a proper shake down.
    Good luck with it...

  10. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos

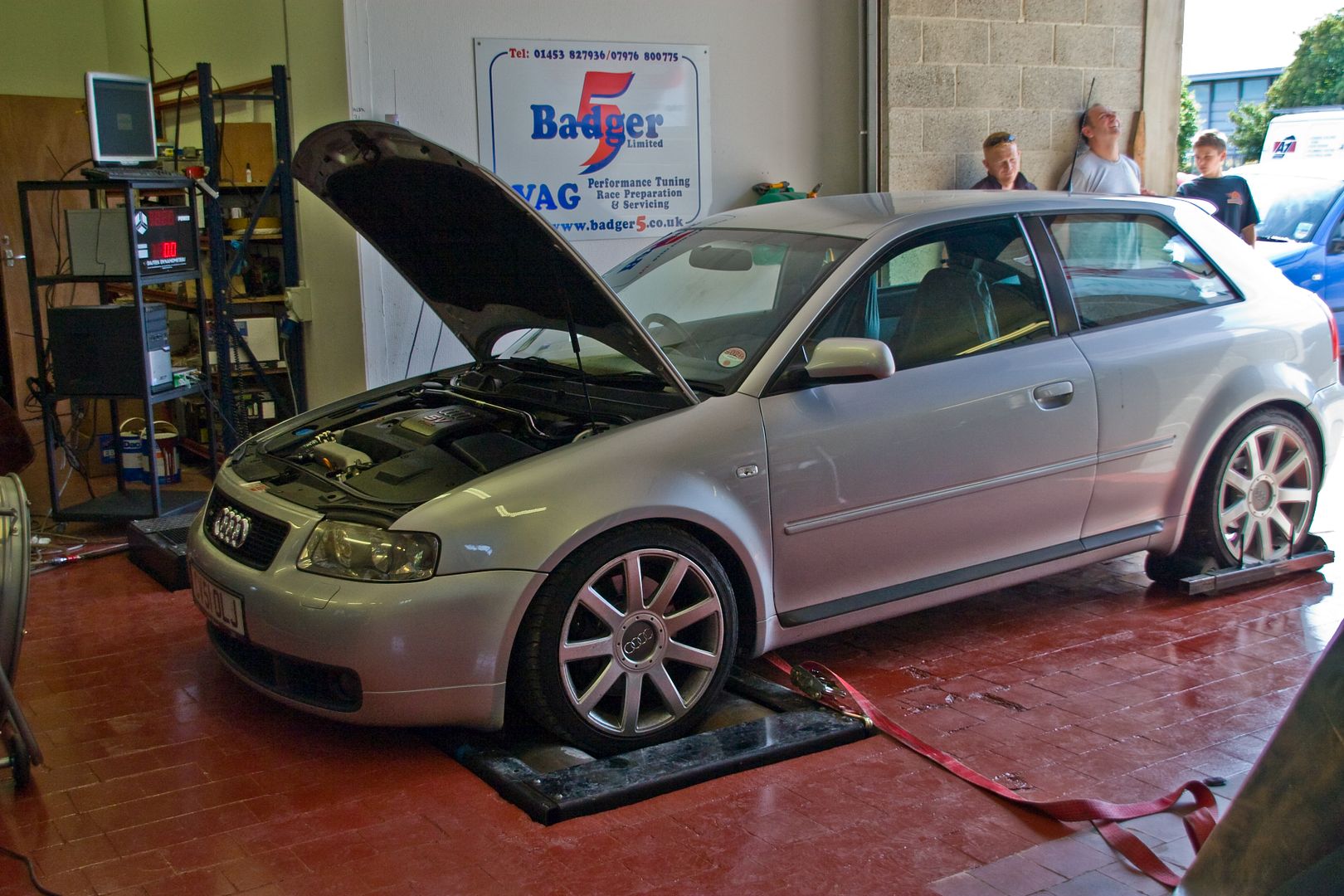

    8v mk3 of george, with eaton m45 mini cooper-s supercharger and s40 dta ecu
    [​IMG]

    car ride height is a factor

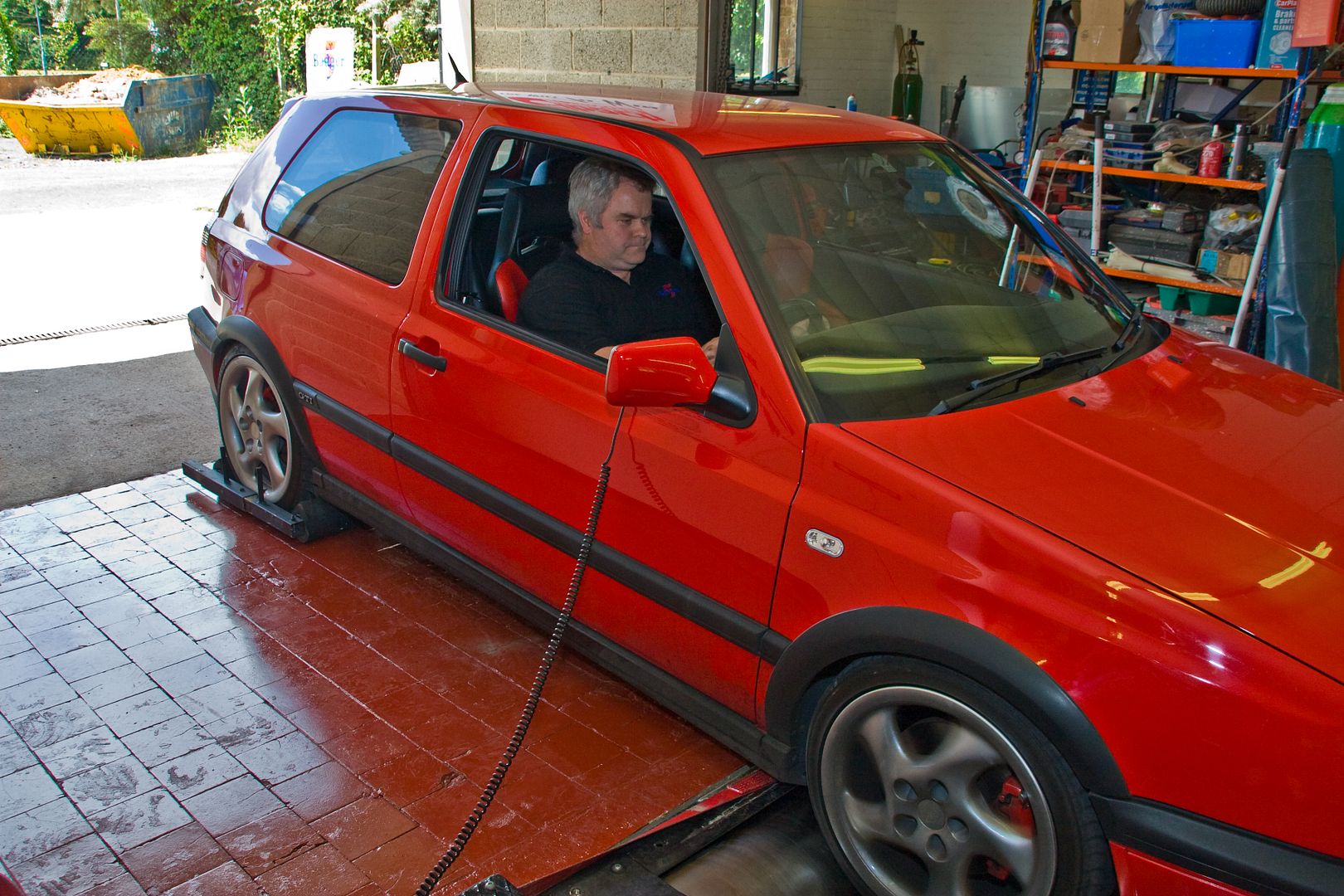

    gt30 s3
    [​IMG]

    i was settling on mrsB lupo this after noon, after modding the dyno slightly. exhaust clearance was achieved easily, but it would'nt sit right or steer nice on the rollers, so checked tyre presures and ride height, and saw the nsf shock had burst, oozing oil.. so ended up reverting the lupo back onto its bilstein/eibach fronts ( replaced its rear shocks for its old billies, after one of its cheap vmaxx shocks had also leaked only on friday ) - so ride height is higher now anyhows, and adjusted up the rear ride height on its rear coilies so its sat level. I ran out of inclination tonight to play with it on the rollers again, so will resume tomorrow. it should sit fine now.

    i may play with the dyno's installed height also tomorrow, to lift it a little more out of the ground.
    pros and cons of excessively low cars, with additional lcr splitters on them running smaller wheels.. balancing act of rollers which sit low enough to retain traction vs those which perch on the top, and ride heights. more maunal to read tonight..

    large fan to wire in next and work out how to 2 speed it.. hopefully good to go for fitment and craigs training on its use. floor plate tie downs arrived which i will bolt into the floor tomorrow also..

    getting there now

    Last edited: Jul 4, 2010
  11. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    148
    Location:
    M1 J40
    Nice work Bill very impressive :thumbup:

    is the fan wired in Star or Delta

    if its Delta you can have a variable speed controller [:D]

  12. BristolFish

    BristolFish Forum Member

    Joined:
    Oct 7, 2008
    Likes Received:
    1
    Location:
    5129'6.21"N 212'53.61"W
    What a great thing to be able to play with. :thumbup:

    No problem with the neighbours, I assume. ;)

  13. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    on an industrial estate, with a 24/7 Dairy Crest plant close by which thunders tankers all hours of the day.. I dont expect to have any problems when I am likely to be running the dyno heavily.

    never say never of course.

  14. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos

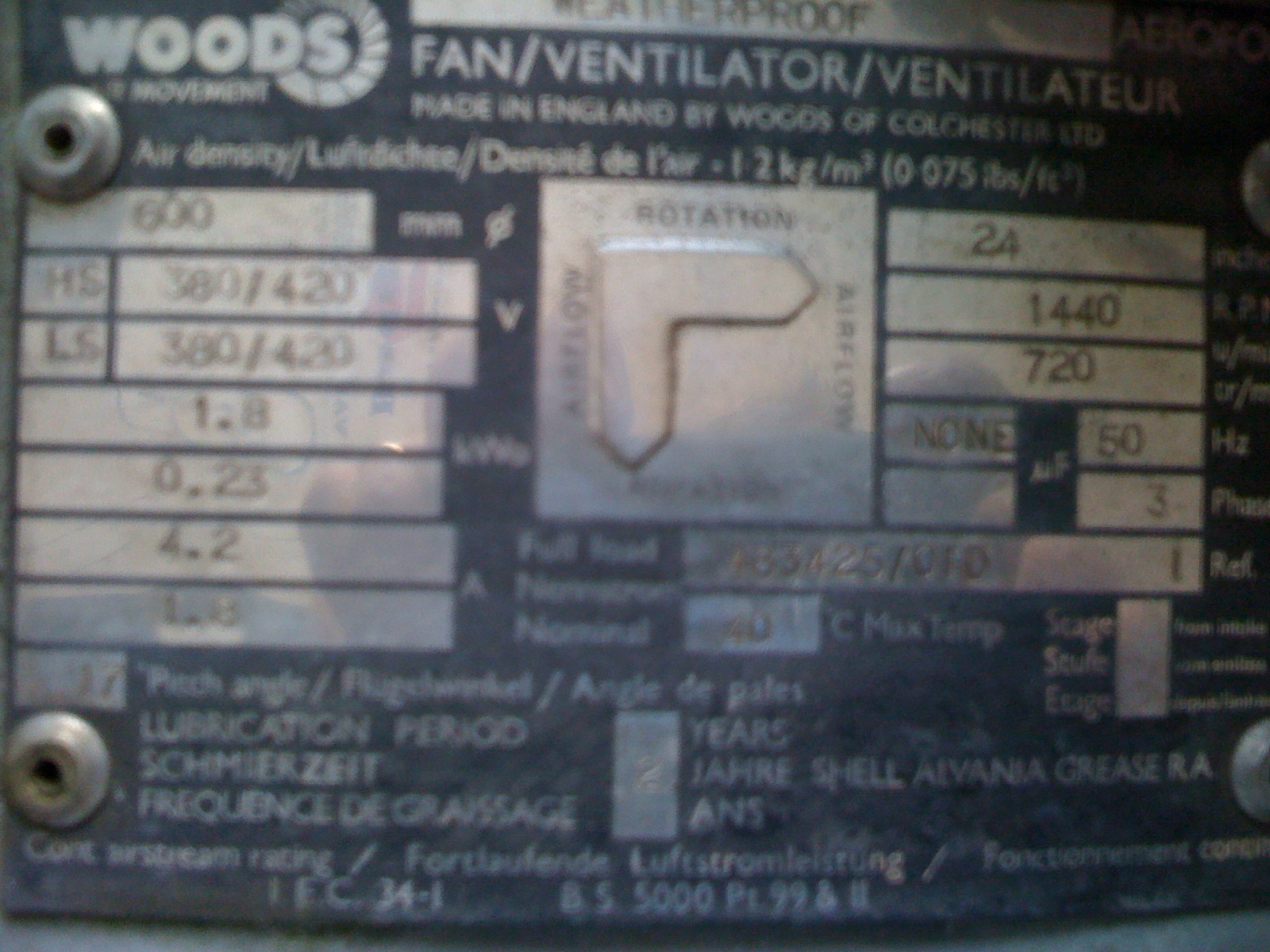

    dataplate off fan
    [​IMG]

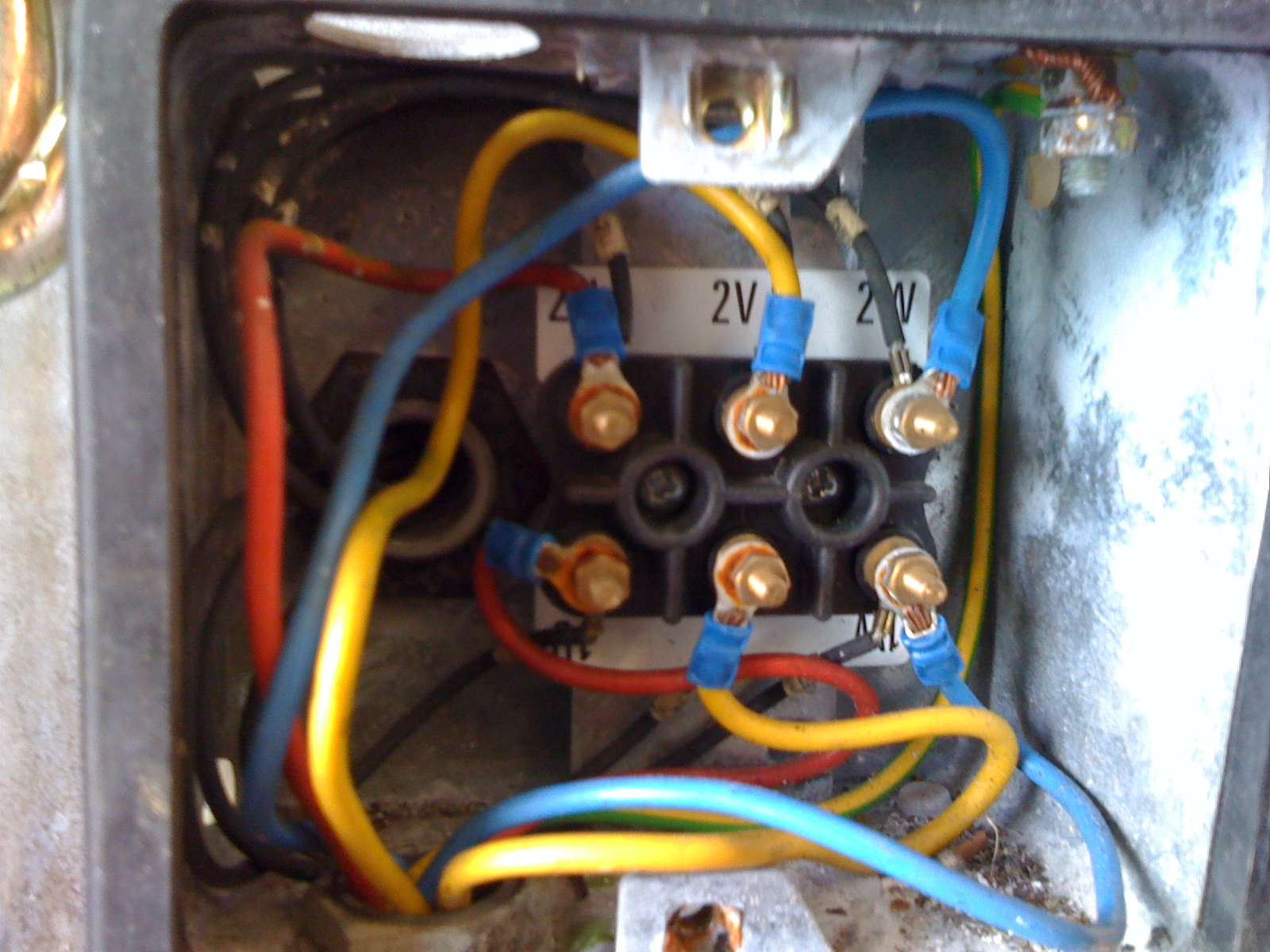

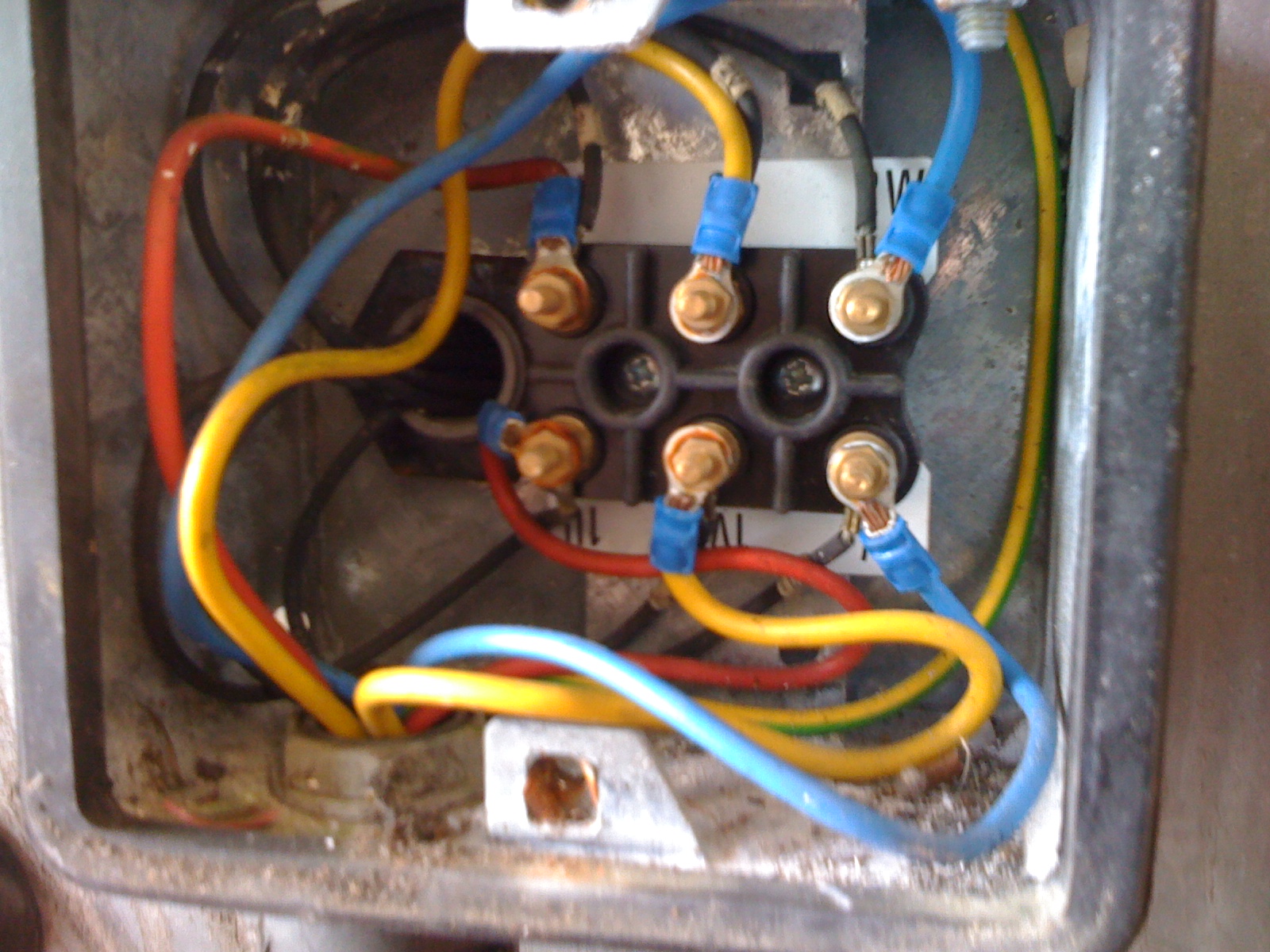

    fan connection inside terminal box
    [​IMG]
    [​IMG]

    wiring reads in box
    2U - 2V - 2W
    1U - 1V - 1W

    double wound motor yea?
    one set is high speed?
    other low?
    or one set is low, add second set get higher?

    any ideas?
    thanks

  15. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos

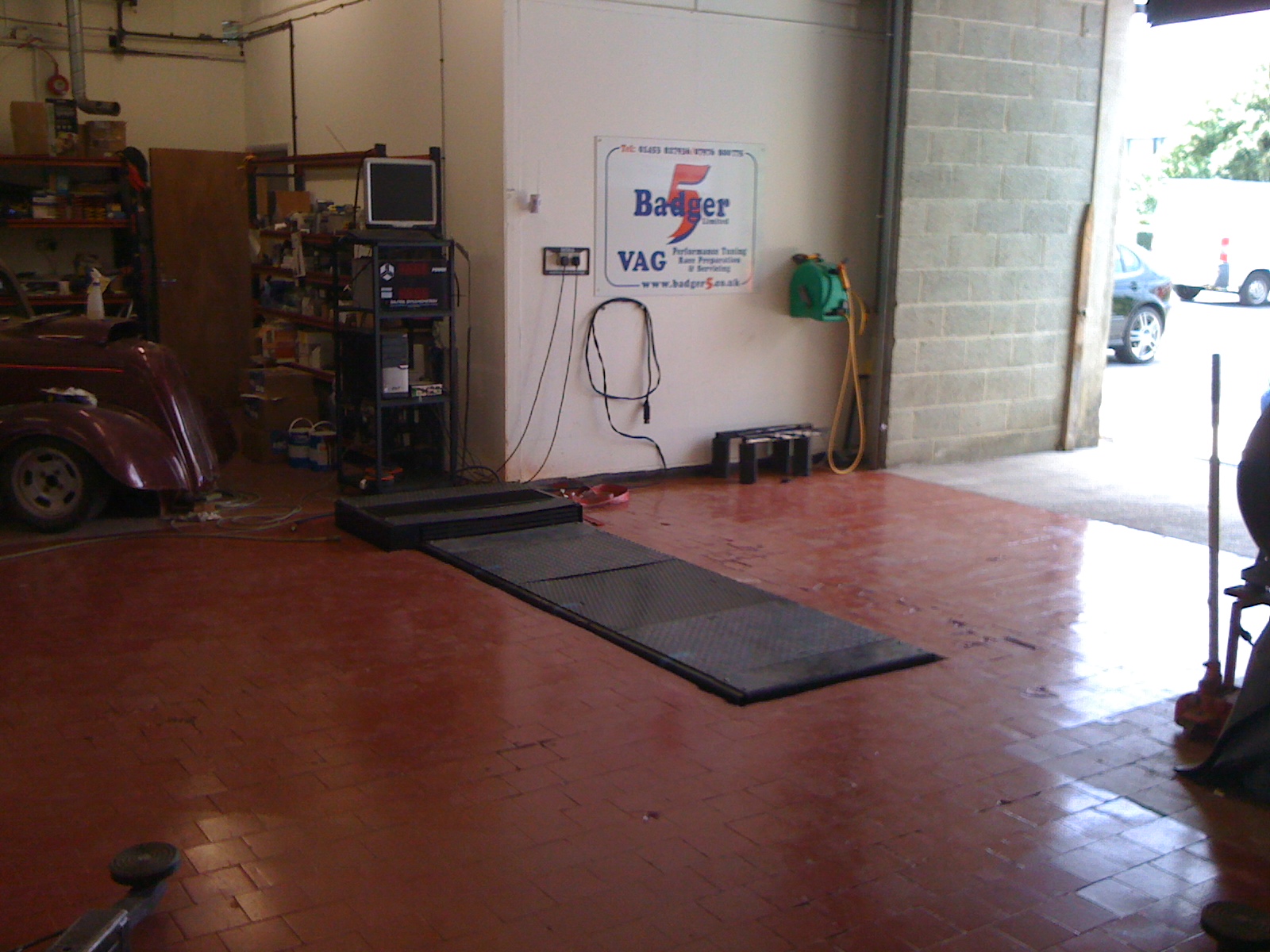

    bit more floor painted and dyno controller & logger on its new trolly frame

    [​IMG]
    [​IMG]

  16. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    148
    Location:
    M1 J40
    Yes Bill its wired in Delta

    and

    1U/V/W = LS - Low Speed 420v 1.8A

    2 U/V/W = HS - High Speed connections 420V 4.2A

    do you have the speed controller diagram or connection details :thumbup:

    Last edited: Jul 5, 2010
  17. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    thankyou sir

  18. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    148
    Location:
    M1 J40
    I'll come down and connect it Saturday if i can have a go on the Roller with the MK1 [:D]

  19. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    :)

    would be a good crack me thinks..
    its not operational to folks as such until I am comfortable with it...

    but... if you dont have huge expectations, I am sure we could have a play on the day on it. :)

  20. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    hi

    wired the fan last night using 2U,2V,2W connections, fan ran but did'nt seem to be fast.. not 1440 rpm.. probably half that

    wired the fan onto the 1U,1V,1W connections and it ran reversed, but same speed

    got stuck now.
