NEW DYNO for Badger5 - Premises move to larger shortly also

Discussion in 'Badger5' started by badger5, Sep 10, 2008.

  1. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40
    Reversed polarity on the phases, change L1 & L2 Leave L3 and it will rotate in the correct direction.

    you need to make sure 2U,2V,2W are connected with the correct phase rotation. :thumbup:

  2. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    confused.. (easily done)

    confirmed actual speed is only 740rpm, not the 1440rpm..

    both wiring into 1U,1V,1W independantly AND wiring independantly into 2U,2V,2W operate at same speed just different directions.

    tried linking 1U to 2U, 1V to 2W, 1W to 2U and it still ran at same speed, but did make a different noise.

    weirdness..
    boo hoo

  3. bens_cab Forum Junkie

    Joined:
    Dec 30, 2005
    Likes Received:
    0
    Location:
    Ashford kent
    i have a shpment of desktop fans your welcome to borrow i fear they might not be up to the job tho lol

    the rolling road is looking good bet its getting some use already

  4. sambo Paid Member Paid Member

    Joined:
    Jan 12, 2004
    Likes Received:
    441
    Location:
    United Kingdom
    I didnt think you will be able to have that fan running in 2 speed unless rotor is double wound?

    How come you need 2 speed anyway Bill?

    R/R looks mint by the way

  5. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    the motor was running as a 2 speed before it got removed out of its previous life.
    not run for 10 years and 20 years old sat on a roof at the factory.

    2 speed motor.. says so on data plate,. just need to suss the windings and links i guess.

    had a day off, so finished an lcr i was working on..

    had a bog stock 225 LCR in so checked how heights of it worked with the dyno.
    fits on dyno fine.. close but clears.


    3 power runs on it, ranged from 223bhp, 226bhp, 230bhp, with 198-206lbft torque

    Seems pretty close to ok I think on stock car

    MrsB Lupo went on again.. I have a nagging bad feeling about it.
    On its revo ecu, its only pulled 168bhp-173bhp (heatsoaks very quickly with its crappy chargecooler)
    Swapped to another ecu mapped as a generic stage 1, and it rose to 180bhp, BUT n75 duty cycle is max'd out, and it only just peaks over 1.1-1.2bar before plummeting immediately down to 0.6bar (boost plummeted on both ecu's)

    Tried it with wastegate disconnected and exactly the same.. Poor lickle lupos k03s is worn out

    Woops..
    Dilema now.. fit my old IHI top mount tubular with PE1820 on it and keep the boost down to 1.2bar and hope its 19mm rods hold...

    need to get a larger maf tube and some injectors - oh and some time to mess with fitting it.. lol

    wonder what mrsb would say with a dollop of 300+bhp
    __________________

  6. micky1 Forum Member

    Joined:
    Nov 6, 2003
    Likes Received:
    7
    Location:
    Bath.
    i'd just get a refresh on the k03s!

  7. RobT

    RobT Forum Junkie

    Joined:
    Oct 24, 2003
    Likes Received:
    948
    Location:
    Cheshire
    I reckon buy shares in sump guard manufacturers ;)

  8. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    decided - pe1820 going onto it and some rods for safety

  9. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    lupo raining oil out of it.. hmm, so some investigating to do.

    today i was using it for mapping georges mk3 8v golf m45 supercharged car on dta today.
    started with a 148bhp/150lbft, and persuaded it to 163bhp/162lbft torque with spot on afr

    great tuning tool i have wanted for a long long time.


    more anchor point in the floor which seemed to hold things well too

    just the poxy big fan to persuade to run full speed.. hmm

  10. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos

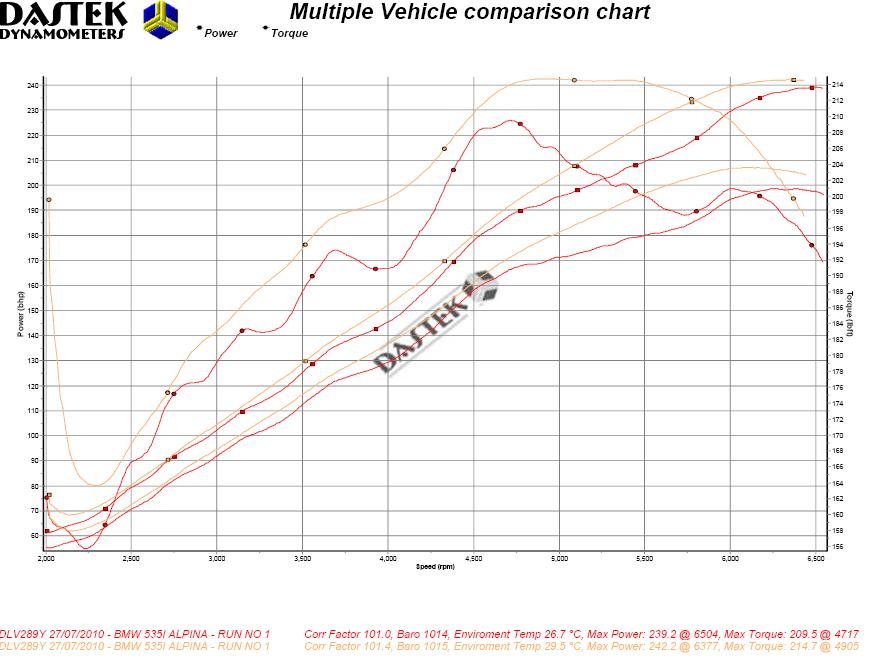

    i did a 3.5 alpina bmw tuesday, made 238bhp before tweaks to fuel and 218lbft, and 244bhp and 222lbft with more flatter and longer torque after...
    at ajecs DD the car made 220bhp i think from memory, on a day where remapped s3's struggled to get 230-240bhp

    look at area under the curve for the improvement in drivability
    Customer said it drives much nicer now, which is nice to hear

    [​IMG]

  11. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    flashed a new to me badgerwagen (mrsb runabout whilst her lupo receive bigger turbo)
    Arosa 1.4tdi sport

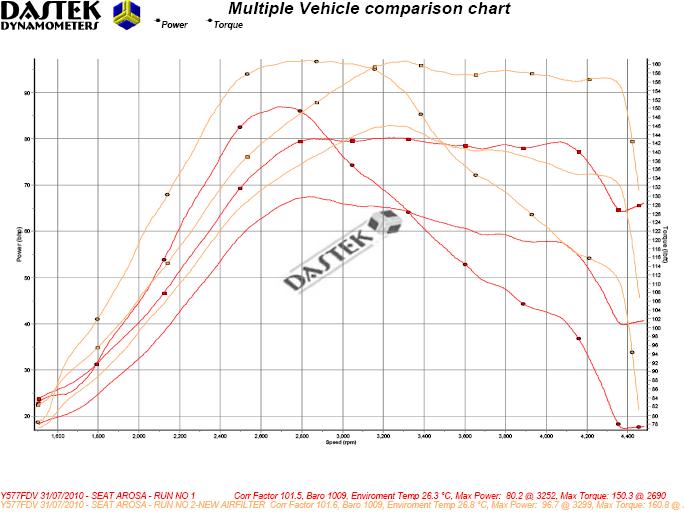

    dyno'd before and after on me dyno... after swapping wheels from its baby 14" on low profiles, raising its coilovers, and sticking my 16" wheels onto it.. it was finally high enough to clear the dyno.

    [​IMG]
    http://badger-5.com/bin/Dyno/arosa-cc-std-comparison.pdf

    The low down on how it is:-

    Power Stock - 75bhp, 145lbft
    Actual Stock - 80bhp, 150lbft
    Custom Code Phase One as advertised - 105-110bhp, 175-185lbft
    Actual CC Phase One - 96bhp, 160lbft

    :think:
    missing a few torque and horses

    Definately more there, and wider spread of torque, BUT not what is claimed.
    Changed for brand new fuel filter and new paper filter
    re-run dyno and Actual CC Phase one - 97bhp, 163lbft

    :lol:
    new filters, 1bhp and 3lbft
    CC remap - 16bhp and 10lbft

    Note for folks.. Service gives you power - lol

  12. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    1
    Location:
    Cocos (Keeling) Islands
    love the results

  13. turbotommy Forum Member

    Joined:
    Sep 5, 2006
    Likes Received:
    13
    Location:
    Newcastle upon tyne
    Well done for posting that up :clap: :thumbup:

    I do like to see the truth or people to be transparent like that [:D]

  14. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    those who know me well, know i tell it how it is.. which often is'nt so palletable with some
    i wanted a realistic dyno, which gave what i believe to be realistic numbers, and so far it seems to meet my hopes.

    the more maps i do with before and after the more fiugures will be transparent to see. there are gains, always, but not neccessarily of the magnitude as 'sold' by the originators of the software.

  15. RobT

    RobT Forum Junkie

    Joined:
    Oct 24, 2003
    Likes Received:
    948
    Location:
    Cheshire
    :thumbup: lovin it

  16. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    Updated code triedon Arosa.. Just about broke into 3 figure power now.. Pulls well tho. nice torque and chirped the tyres in 2nd on way home last night - lol

    Updated code on 1.4tdi Arosa tried last night.

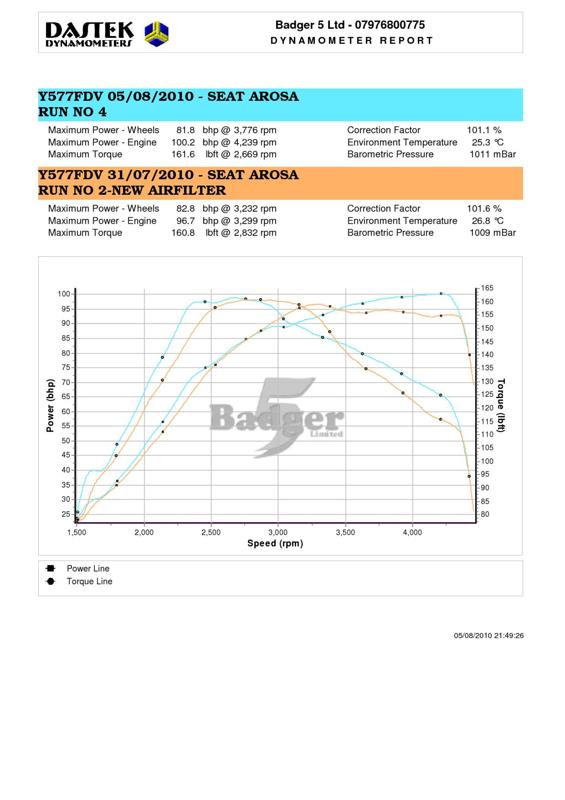

    [​IMG]

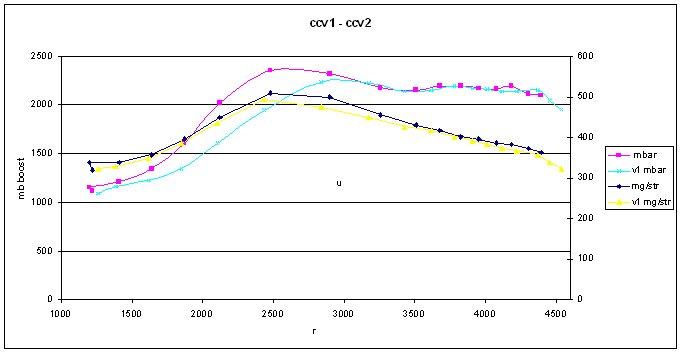

    and logs
    [​IMG]

    Broke into the 3 figure power just about.. lol

  17. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    had an interesting "different" car in recently..
    Morris Van circa 1938, Drag car
    5ltr V8 rover engine.. Megasquirt management, for fueling tweaks.

    Monstor.. loud...

    Video below
    http://www.youtube.com/watch?v=hr6pJv559j8


    [YOUTUBE]hr6pJv559j8[/YOUTUBE]

    Last edited by a moderator: Aug 7, 2010
  18. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos

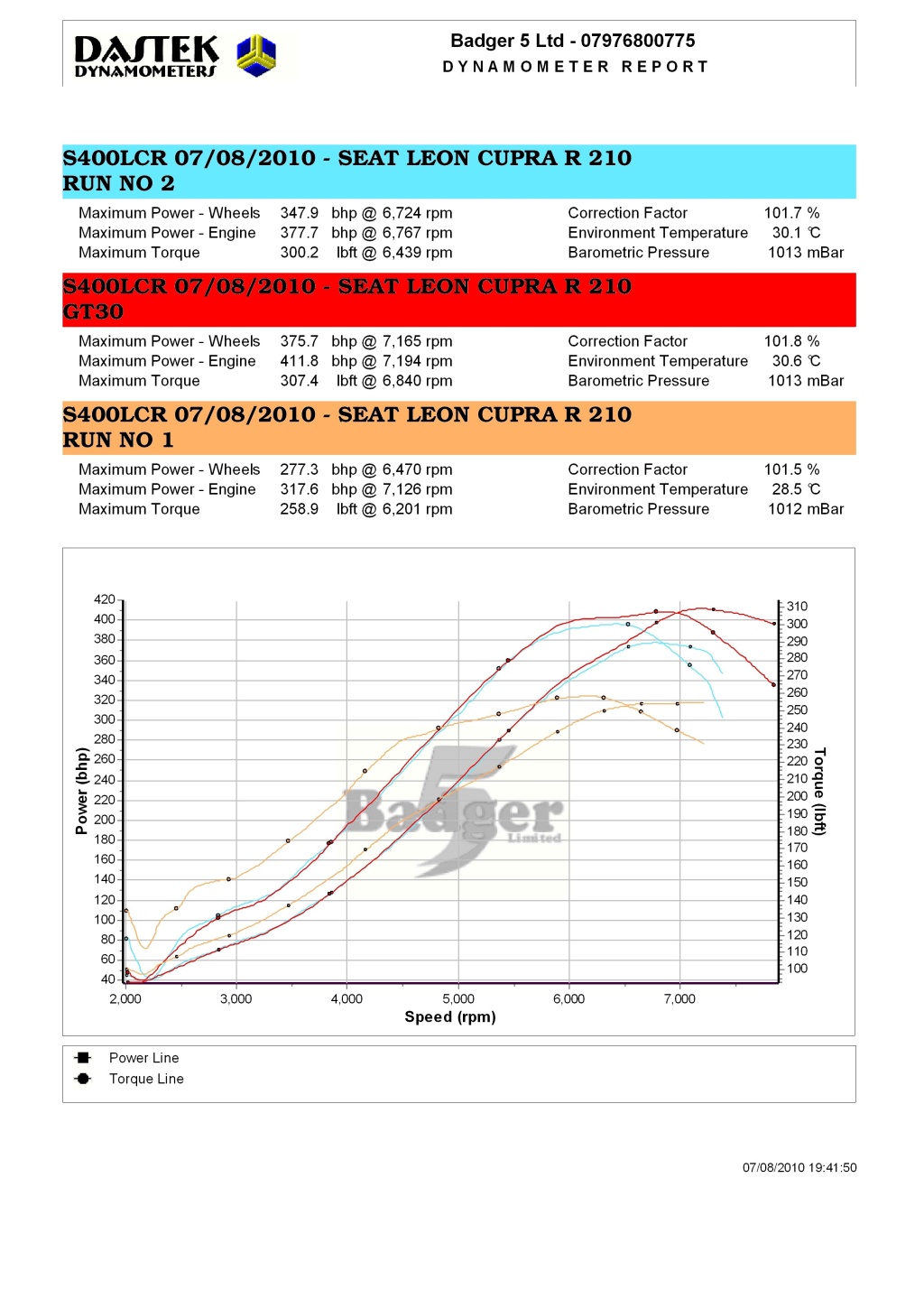

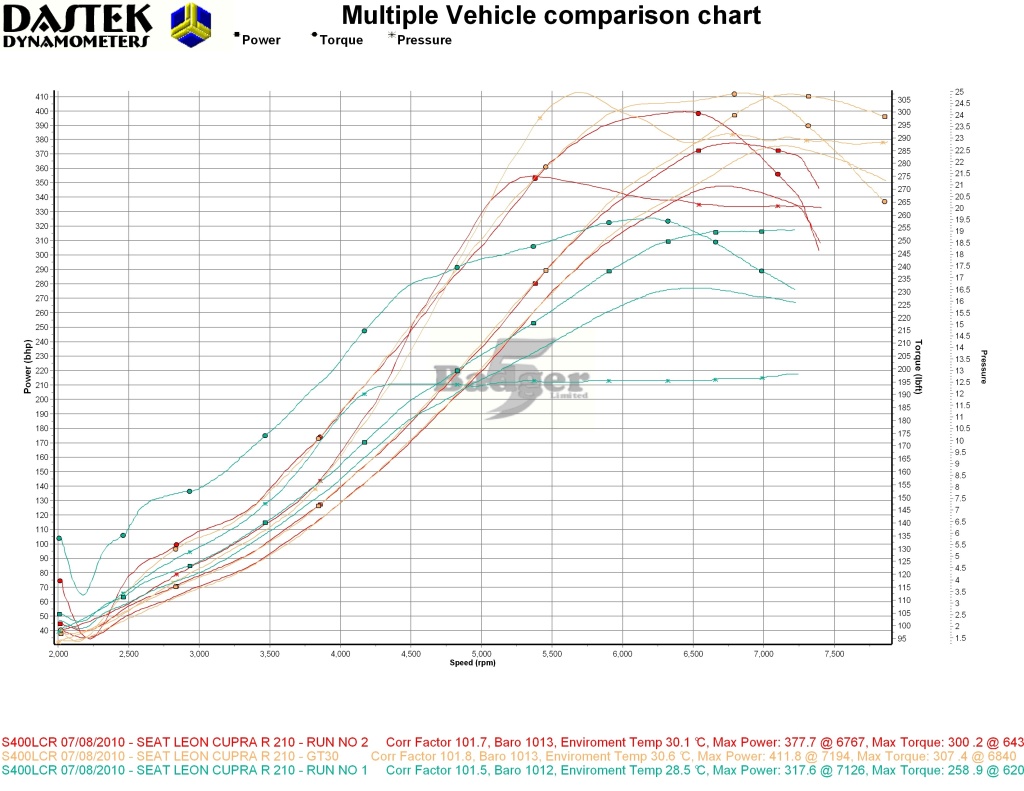

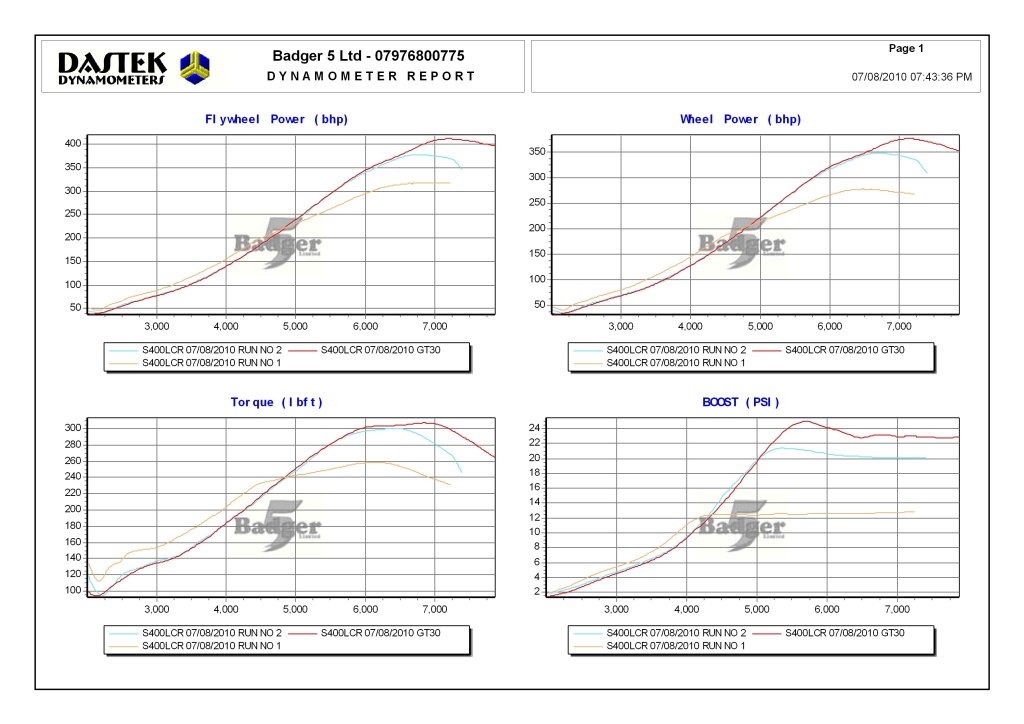

    a leon cupra from today which came back in for remap/adjustments after swapping from gt2871 to gt3071
    apexi controller, 12psi,19psi,25psi
    [​IMG]
    [​IMG]
    [​IMG]

  19. m1keh Forum Member

    Joined:
    Jul 16, 2009
    Likes Received:
    56
    NIce smooth power and torque curves there Bill, a credit to your mapping skills. This must be saving you lots of time on the mapping front now.

  20. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    dyno is something i hav wanted for a long long time.
    great tool, although it was giving me hell yesterday software wise... grrrr, and my flashing laptop decided to die first thing from deceased hardrive.. thankfully a friend advised I image the drive just in case a couple of months back, and thank god i did.. it was used yesterday to get me back running.

    things learned yesterday is this power level is bloody hard to stop from spinning up, so I will have to strap into the dyno more for cars of this nature (over wishbones holding car down and in) and not the usual side to side straps i have been ok with thus far.

    i cant take credit for boost control, its just me setting the apexi up on fixed duty cycles for the rpms, and its doing that work. in a fwd car, its going to be a handfull on high boost.. lol

    i was on the dyno logging and relaying fueling adjustments for over 6 hours yesterday... bloody hot after all that.. me and the retarder.. hehe
