mk2 golf 1.8t, GT30 build thread.

Discussion in 'Badger5' started by badger5, May 23, 2010.

  1. StuMc

    StuMc Moderator and Regional Host - Manchester Moderator

    Joined:
    Nov 12, 2004
    Likes Received:
    267
    Location:
    50? 20` 47 N - 06? 57` 57 E
    I work with upto 8" versions, and they are indeed excellent. A simple, yet thoroughly effective design that just last (if you don`t have to repeatedly remove and re-fit them that is...)

    What are those clamps on the wastegate, though? Look very nice too. (as does the whole setup) :thumbup:

  2. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    you may well spot the join in the downpipe where I ran out of argon when tiging the downpipe, and reverted to my mig welding and grinding flatter.. why do you always run out of gas when midway thru a job on a weekend when everyone is shut..! doh! all welds fully backpurged btw..

    next steps are add the missing lambda boss and egt sensor and get egt probe boss installed also, then off to zircotec for ceramic coating.

  3. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    the gates clamps are tials own ones.. they are good but quite clumsey and chunky making them quite frustrating to use..

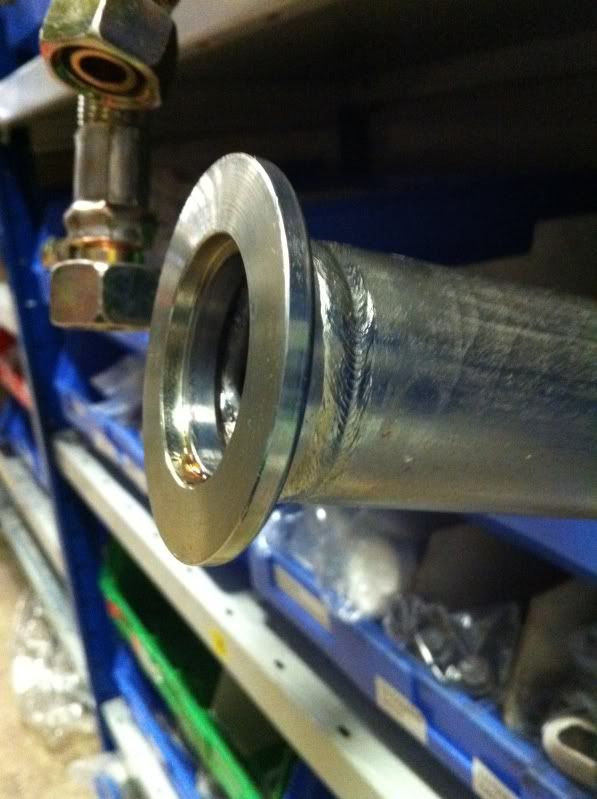

    where do you buy your vbands from? finding a decent reliable supply of quality ones has been a pain.. I always need to machine the inserts to make the true size to fit the 76mm tube.
    cheers

  4. dUff

    dUff Administrator Admin

    Joined:
    Oct 22, 2003
    Likes Received:
    245
    Location:
    Everybody Offline - looking good
    I bought my last 3 from AET , quite expensive . I have seen and bought copy v-bands off ebay and they were junk , never fitted them , straight to bin .

    I guess you need a supplier direct from USA

  5. StuMc

    StuMc Moderator and Regional Host - Manchester Moderator

    Joined:
    Nov 12, 2004
    Likes Received:
    267
    Location:
    50? 20` 47 N - 06? 57` 57 E
    I`m not sure where we get them from, TBH, since they`re OE-parts, but I`ll try and find out. The engines are Cummins, and the exhaust and coolant lines we use them on are either ours (Siemens) or our transmission manufacturers (Voith), so the clamps could either be coming from the US or Germany.

    Some of our coolant pipework may be around the 76mm area, actually...I`ll have a look tomorrow. May `appropriate` one for you to see if it`s suitable. :thumbup:

    Last edited: Oct 27, 2010
  6. StuMc

    StuMc Moderator and Regional Host - Manchester Moderator

    Joined:
    Nov 12, 2004
    Likes Received:
    267
    Location:
    50? 20` 47 N - 06? 57` 57 E
    Do the pipes themselves have an OD of 76mm or the clamps?

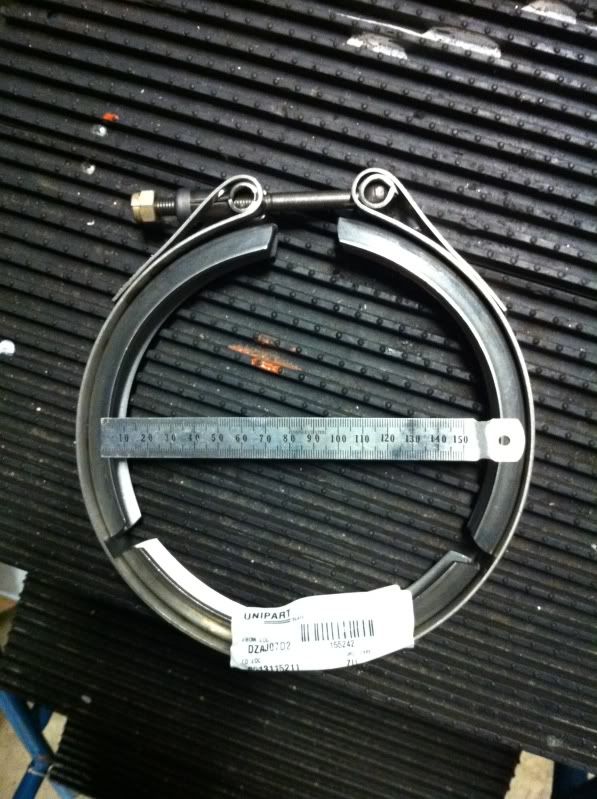

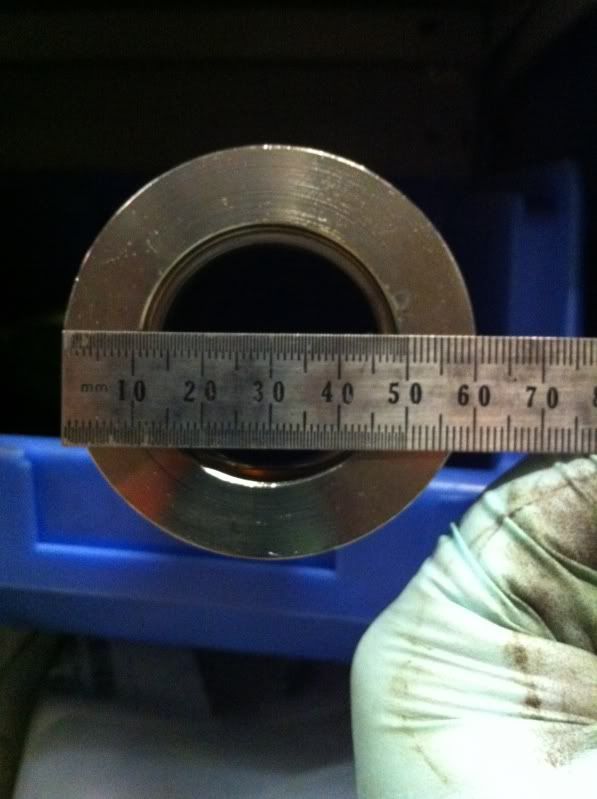

    Our clamps are 75mm OD to suit 60mm flanges;

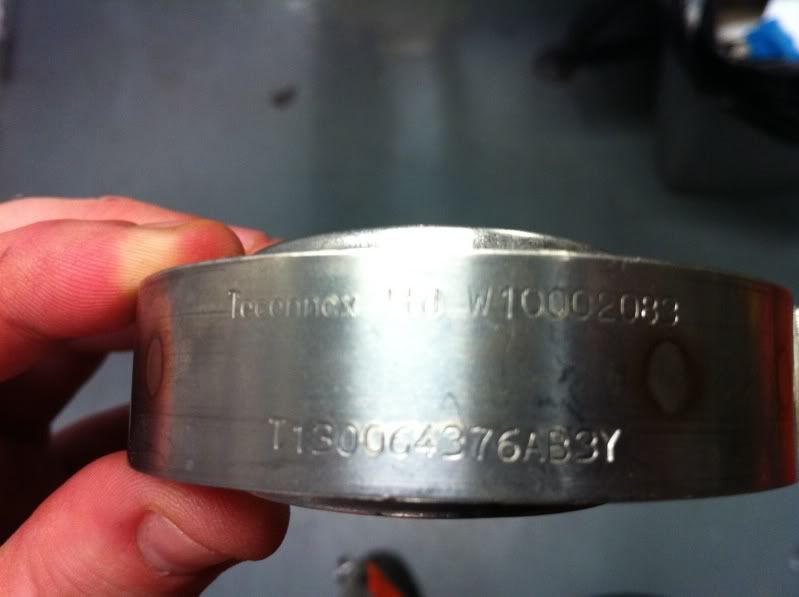

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    We source them through Unipart, but they are manufactured by a company called Teconnex, who are based in Keighley.

    www.teconnex.com

    According to their site, they can do from 35mm upto 3metres... :o, so I guess they`d have exactly what you`re looking for. :thumbup:

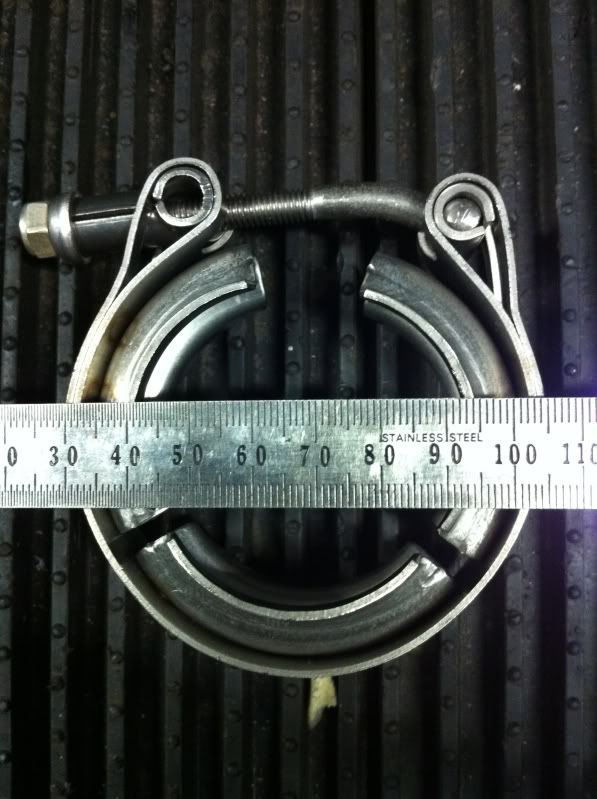

    And just for fun, this is one of our exhaust clamps... ;)

    [​IMG]

    Last edited: Oct 28, 2010
  7. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    cheers for the info
    the tube I use is 76mm OD hygenic stainless tube,

  8. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    long belated thread update.
    One final tricky job I had to be honest been dreading... Squeazing in AP 4-pots with 305x28 2-piece disks under the customers 7x15 ET35 Pro Race 1 rims..

    Well... with minimal changes to a previous 330x28 under 16" rims on the same VR6 hubs, the sample brkt from the 330's pre-modded for the smaller disks, was enough to give me the guide to update the dwg to make a proper pair for.

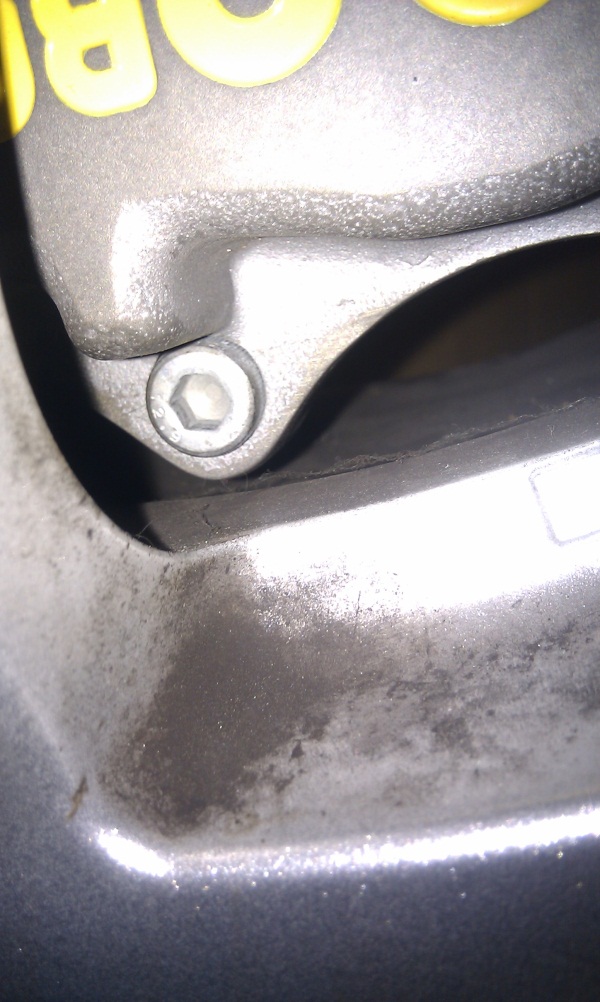

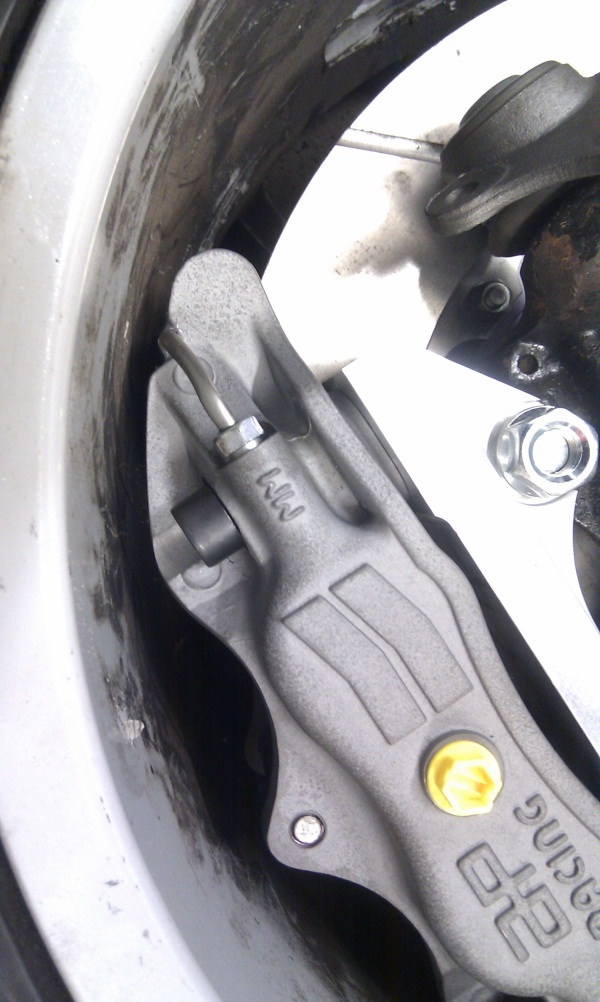

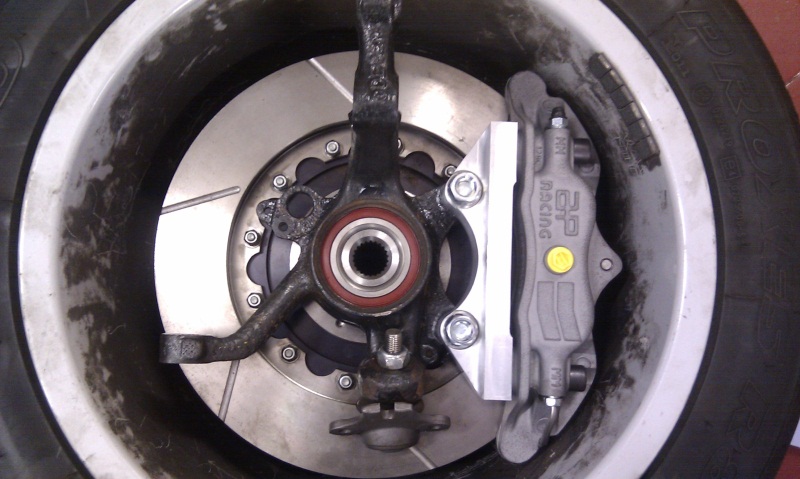

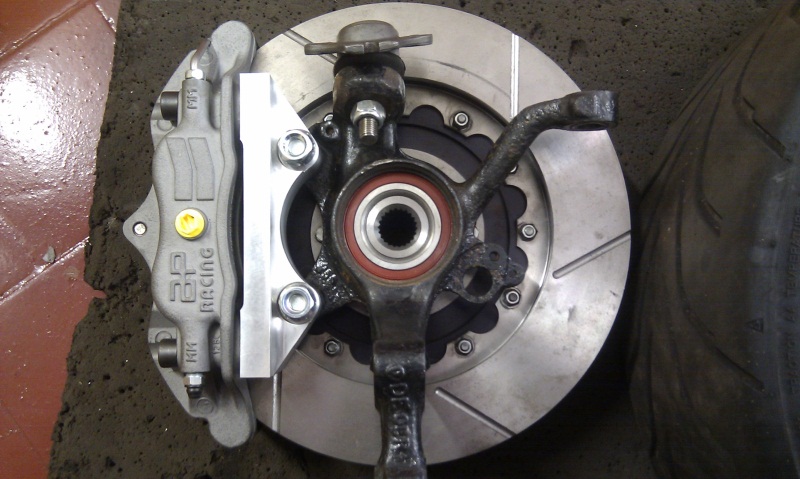

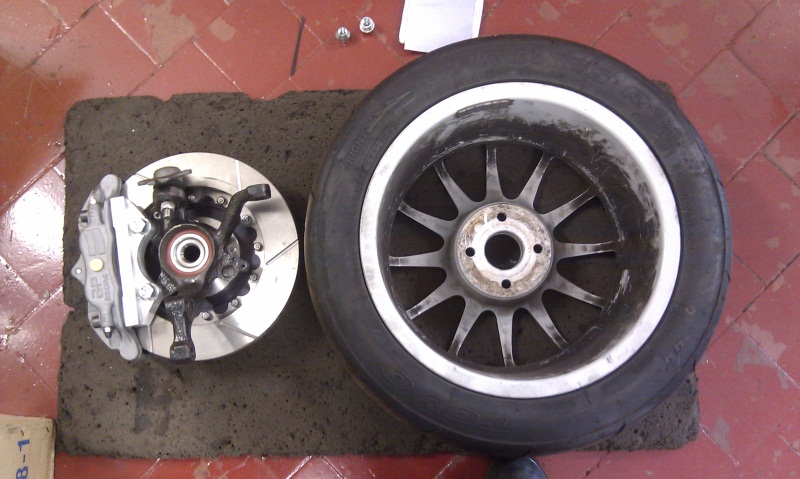

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  9. Admin Guest

    Hello clearance!

  10. Gazhatt Forum Member

    Joined:
    Sep 1, 2006
    Likes Received:
    4
    Location:
    S.Wales
    Nice 1 Bill :thumbup:

    Looks like I'll need to keep the inners of the wheels clean from now on!!!

  11. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos

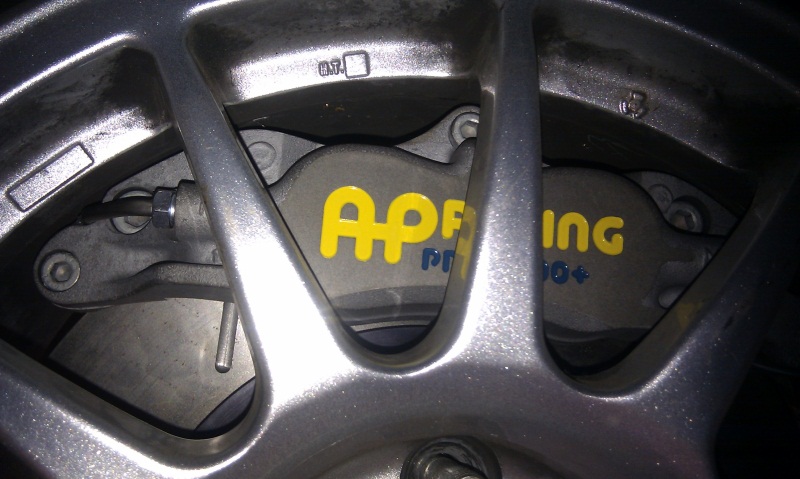

    some painted bits on it now...
    [​IMG]

    Caliper brackets also completed and clear lovely.. :)
    304x28 AP 4-pots under 15", 7x15 et35 pro race1 rims, on VR6 hubs

  12. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    UPDATE -

    It moved under its own power!
    outside for some sunshine yesterday (sunday) - had a wash...

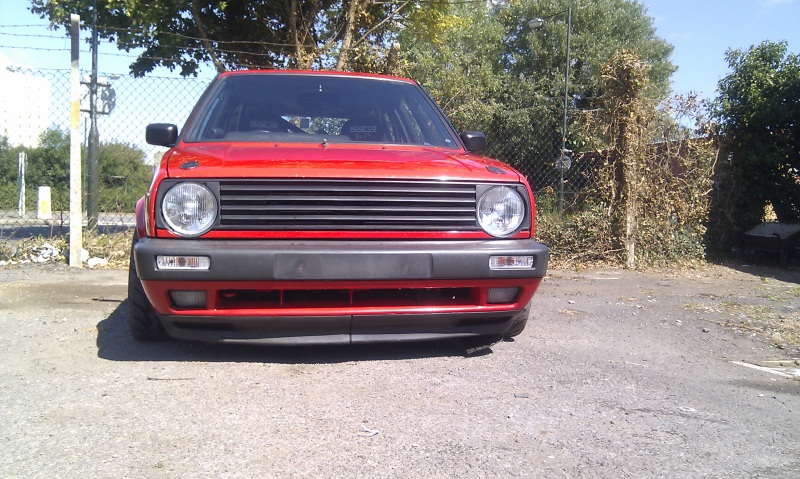

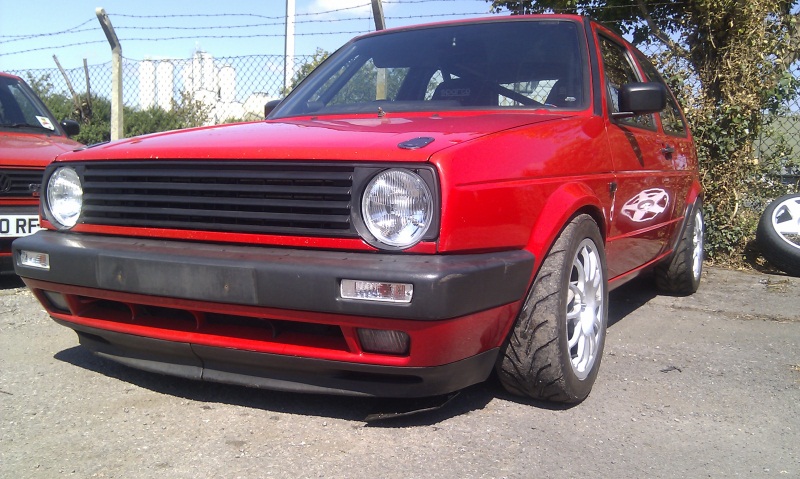

    Looking phat on its widetracked suspension

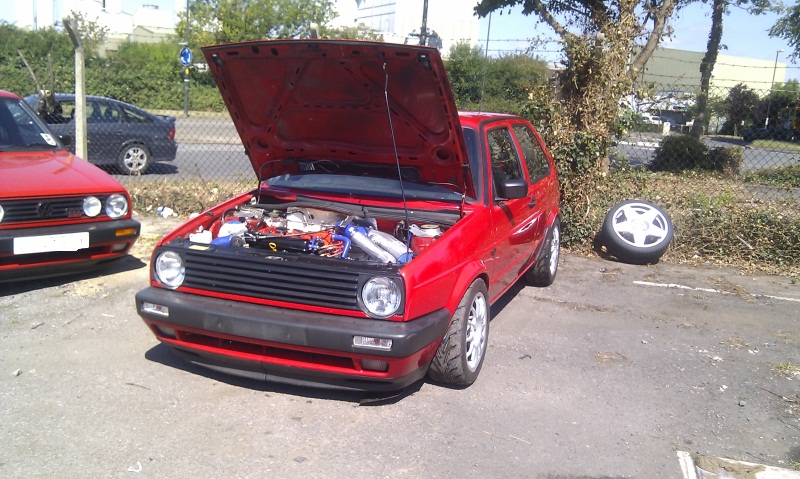

    [​IMG]
    [​IMG]

    lurking inside GT30, 1.8t

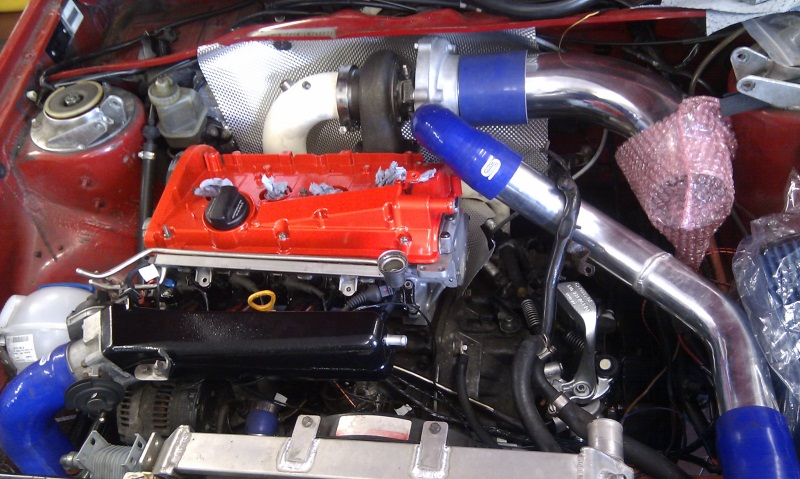

    [​IMG]

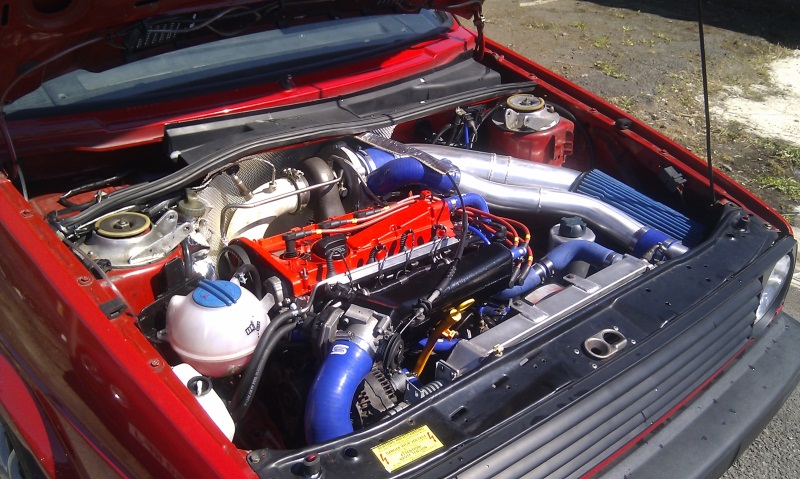

    engine bay
    [​IMG]

    Some minor tweaks and finishing touches to do... and mapping will commence. (DTA S60)

  13. g60luke Forum Member

    Joined:
    Oct 27, 2008
    Likes Received:
    3
    Looking Good Bill,

    Cant wait to see it finished and go out in it :)

  14. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    gary saw it and heard it yesterday..
    got to fix a couple of pre-existing leaks on the ally rad today, and I can go about getting it onto the rollers and heat cycle it.

  15. g60luke Forum Member

    Joined:
    Oct 27, 2008
    Likes Received:
    3
    Did hear from him :thumbup:

    Any estimates yet on how much power your gonna get... Or is that tight lipped :)

  16. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    I dont know.. ;)

    Its a GT30 at the end of the day.. so power potential is pretty well understood..

  17. 16valver Forum Member

    Joined:
    Jun 30, 2005
    Likes Received:
    164
    Location:
    Aberdeen
    Looks good.

    Which TB is it running Bill?

  18. JWYATT Forum Member

    Joined:
    Jun 17, 2009
    Likes Received:
    0
    Location:
    South Coast
    looks pretty exciting !


    Did you take/keep all the dimensions on those caliper brackets ?!;)

  19. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    I'm not sure what tbody is on it.. It was on there from its first transplant.

  20. badger5 Club GTI Sponsor and Supporter Trader

    Joined:
    Oct 22, 2003
    Likes Received:
    13
    Location:
    nr Glos
    aye, the designed bells, and brkts are on CAD safe and sound
