Tubular seat rail installation

Discussion in 'Track Prep & Tech' started by A.N. Other, Aug 14, 2006.

  1. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12
    what day is that? could meet up & have a look at your work.
    should see some big things happening in the next few weeks/months with mine also.



    edit: to post below....added it to my calender mate

    Last edited: Jan 14, 2008
  2. gillm

    gillm ***** User

    Joined:
    Oct 22, 2003
    Likes Received:
    3
    Location:
    yeovil somerset
    5th of april mike . it should be teady by then

  3. gillm

    gillm ***** User

    Joined:
    Oct 22, 2003
    Likes Received:
    3
    Location:
    yeovil somerset
    [​IMG]

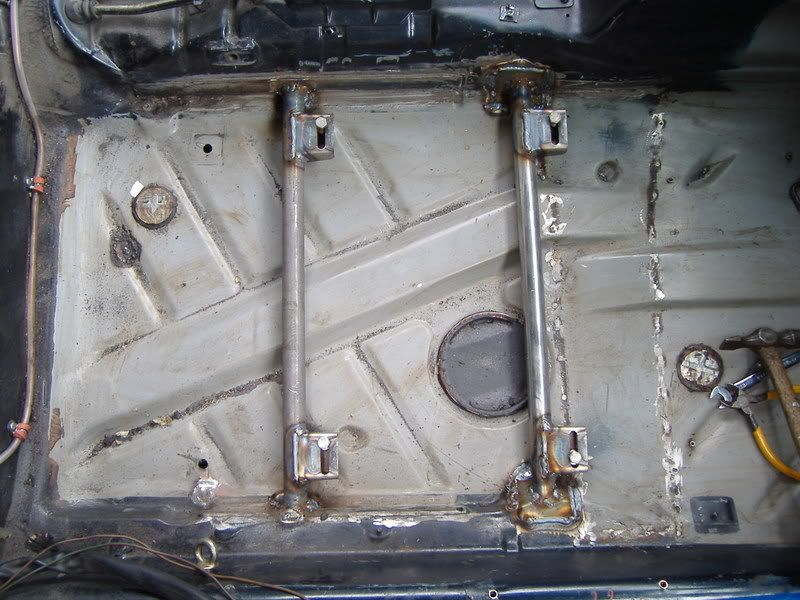

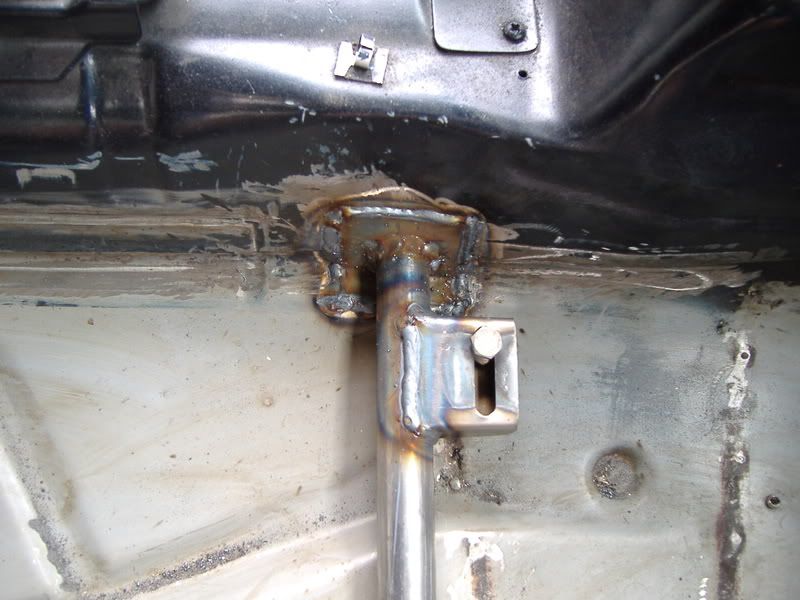

    finished item :) looks loads better :) now i can get on with fitting things back in :)

  4. steve r

    steve r Forum Member

    Joined:
    Oct 22, 2003
    Likes Received:
    28
    Started mine today,

    Demon thieves kit:

    [​IMG]

    nice tags with floating captive nuts

    [​IMG]

    Seat rails out

    [​IMG]

    mocked up, need to decideon seat position before cutting/welding

    [​IMG]

  5. gofasterpinch Forum Member

    Joined:
    Apr 11, 2006
    Likes Received:
    0

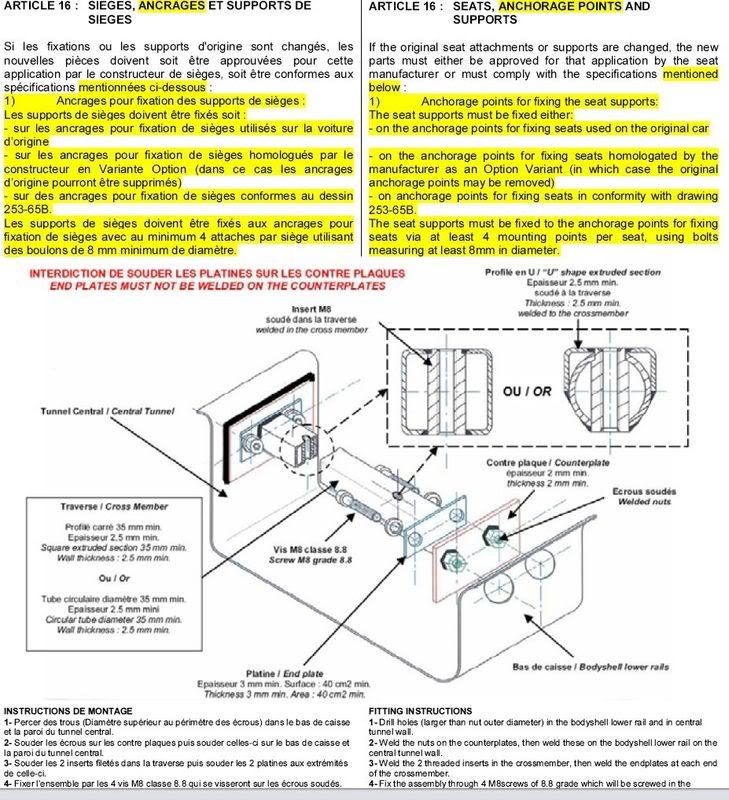

    dont know if anyones seen this but:

    [​IMG]

    proper FIA release regarding seat rails.

  6. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12
    Steve how are you getting on with that kit pictured above?


    Do you have anys pics of the lap belt mounts mate?

  7. jamesa Forum Junkie

    Joined:
    Nov 8, 2003
    Likes Received:
    301
    Location:
    Abz

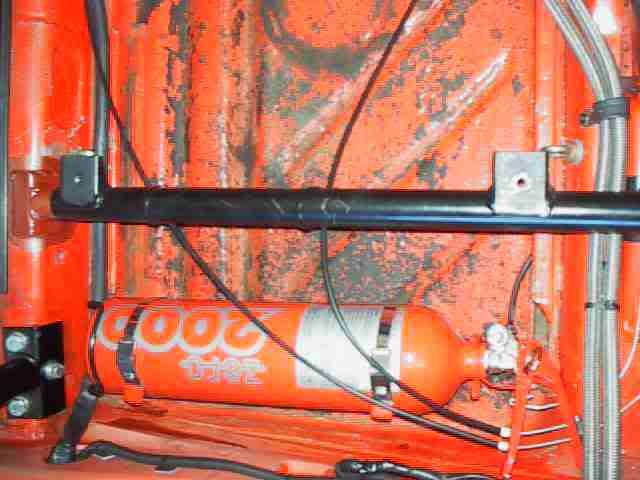

    For reference - the standard inertia reel mounting point is the bolt adjacent the extinguisher bottle ... which, when compared to the Willans installation guide is too far back.

    Does this help ?

    [​IMG]

    [​IMG]

  8. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12
    Did you get them from demon tweeks & are they a captive plate you weld on then screw the eyelets in?

    cheers

    mike

  9. jamesa Forum Junkie

    Joined:
    Nov 8, 2003
    Likes Received:
    301
    Location:
    Abz
    The eyebolts can be sourced from DT, I secure them using a `non welded` plate that is tapped with a 7/16" UNF thread to which I add a 7/16" UNF Nyloc (except near the exhaust). These plates are also available from DT and are different to the `weld on` plates that include a captivated nut.

    HTH`s

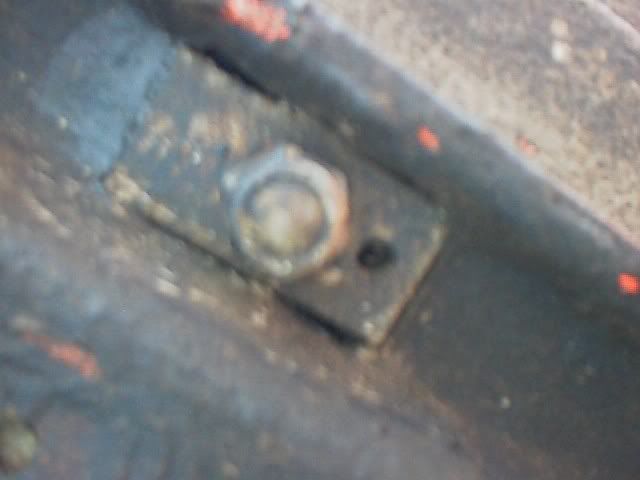

    Mk1 - between sill and seat runner

    [​IMG]

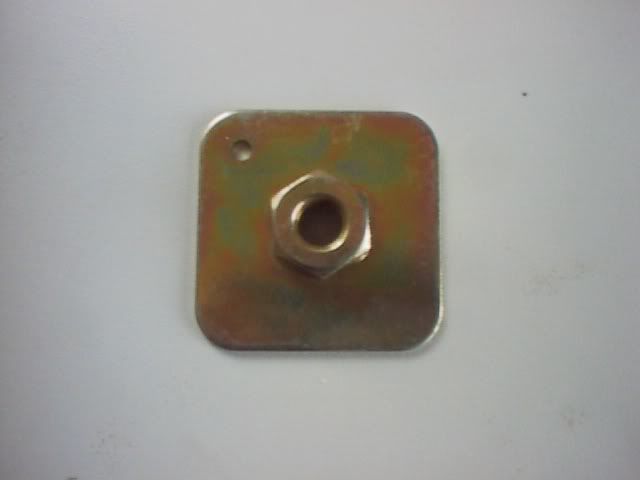

    `Weld on` plate

    [​IMG]

    Mk1 - for the double skinned `tunnel` fixing I removed the heatshield for access

    Last edited: Jun 15, 2008
  10. steve r

    steve r Forum Member

    Joined:
    Oct 22, 2003
    Likes Received:
    28
    Seat tubes are now fitted on both sides. The original seat rails were very well attached to the car so we cut the top and bottom section off from them and left the rest spotwelded to the car. In the pics below you will see we didn't use the extra plates in these locations but did on the drivers seat forward tube as it is welded onto single skin.

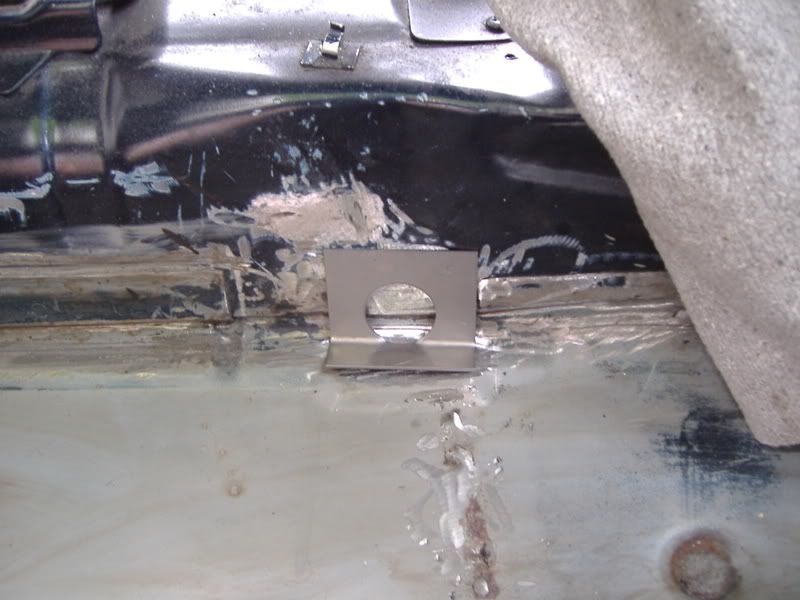

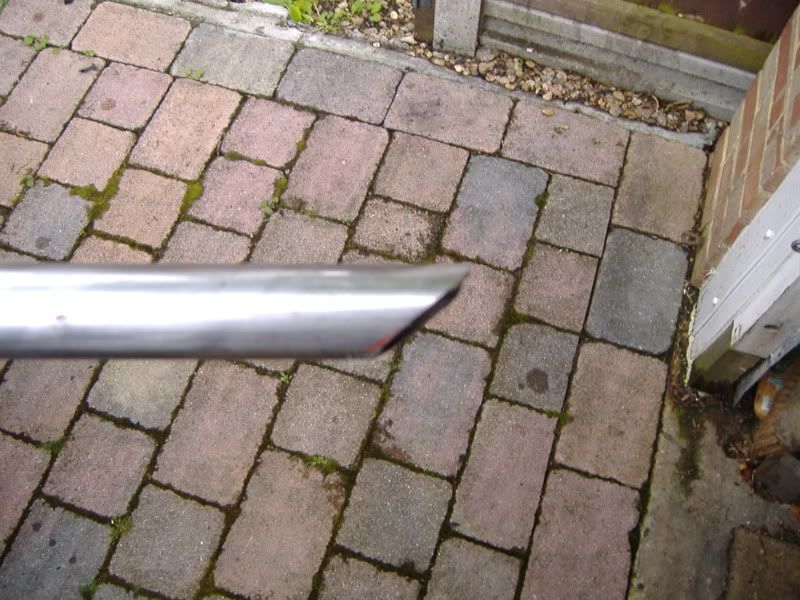

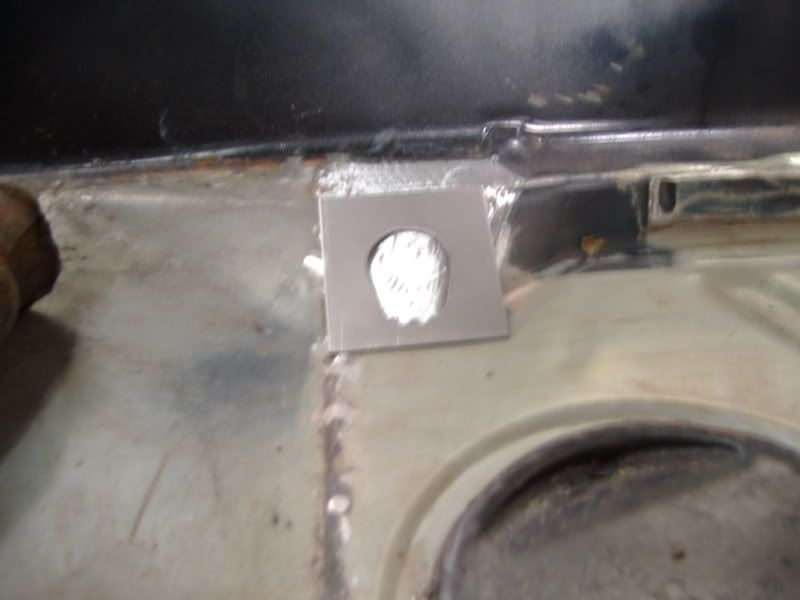

    Drivers forward tube, cut to shape and plates shaped to fit:

    [​IMG]

    [​IMG]

    [​IMG]

    Drivers sidetunes fitted:

    [​IMG]

    [​IMG]

    And passenger

    [​IMG]

    I thought the kit was very good and made the job quite easy.

  11. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12
    thanks so much for that lads, steve why do the end plates have holes in them before welding?

  12. steve r

    steve r Forum Member

    Joined:
    Oct 22, 2003
    Likes Received:
    28
    Not too sure, maybe so the tube is welded directly to the car as well as the plate.

  13. F2 Stu Forum Member

    Joined:
    Feb 29, 2004
    Likes Received:
    0
    Location:
    United Kingdom
    [​IMG]

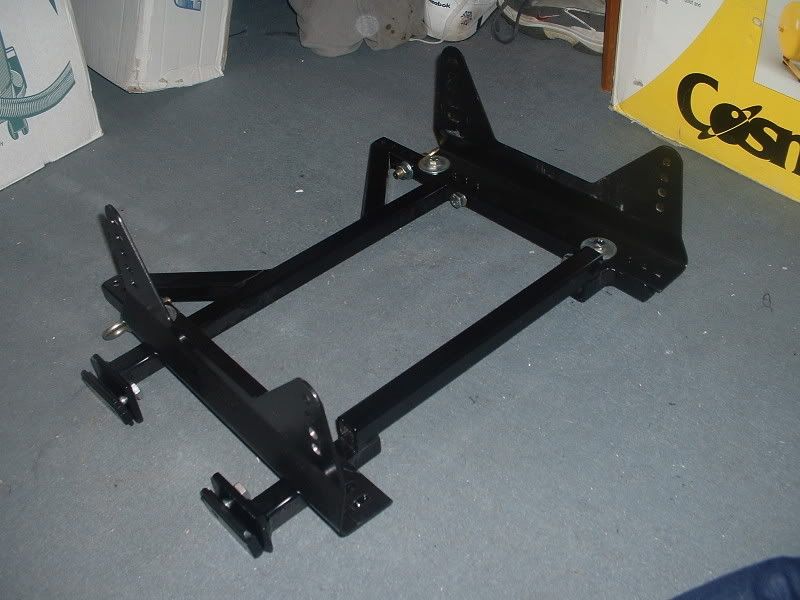

    Makes my bolt seat rails look far too complicated!

    Weld in rails a job for the winter I think.

  14. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    394
    Steve - what were DT's tube diameters, tube wall thicknesses and tag thicknesses out of interest? I'd guess 3mm, possibly 2.5?

    My Mk1 has tag thicknesses of 3mm, which are Custom Cages.

  15. steve r

    steve r Forum Member

    Joined:
    Oct 22, 2003
    Likes Received:
    28
    Tube:

    OD is 2.54mm / 1 inch
    Wall is 1.65mm / approx 1/16th inch?

    Plates are 1.46mm.

  16. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12
    I ended up getting some 1 x 2" box tubing 3mm today & some end plates also 3mm.

    will have to diet to make up for the extra weight :lol: .

  17. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12
    Which part is the heat shield? [:$] & is it ok to just weld these straight to the tunnel inside the car as it is in the mk1?

  18. A.N. Other Banned after significant club disruption Dec 5th 2

    Joined:
    Oct 23, 2003
    Likes Received:
    394
    I put them on the underside of the tunnel - saves MIGing

  19. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12
    Do you mean from the outside Chris?

    Does it matter which way these go on, in that does the nut part have to go within the wall in a recess or can the nut face outward towards the seat?

  20. jamesa Forum Junkie

    Joined:
    Nov 8, 2003
    Likes Received:
    301
    Location:
    Abz
    My Mk1 had an exhaust heatshield in the centre tunnel, I removed it when I used the type of fitting below. I did not use the larger type fitting pp your post as it does not fit the curvature of the tunnel.

    I always fit these items from below (outside), I don`t weld them.

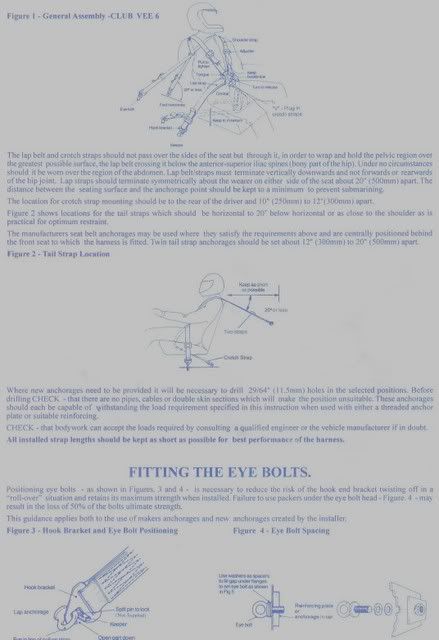

    The fitting you have referred to has to be installed with the nut `away` from the eyebolt - see the Willans guide below.

    [​IMG]

    [​IMG]
