Ultimate 8v's - F3 / Supervee / Judd / Drake / Spiess Engines- Info Request

Discussion in '8-valve' started by drunkenalan, Jul 6, 2009.

Tags:
  1. mr hillclimber Club GTI Supporter and Sponsor

    Joined:
    Nov 24, 2005
    Likes Received:
    131
    Location:
    Southwest

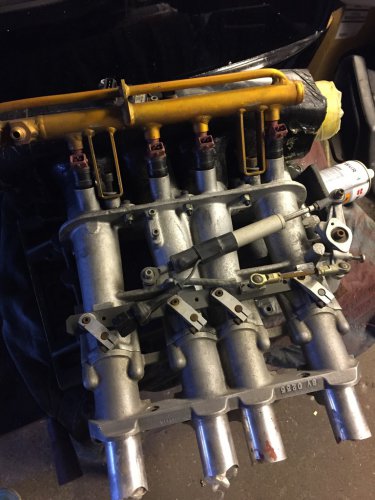

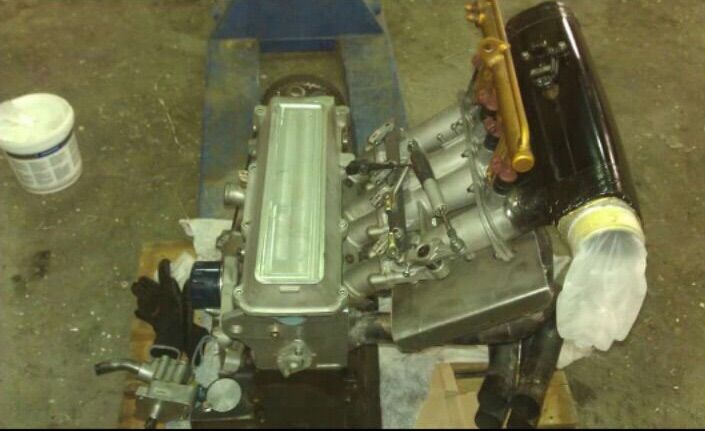

    Looks like a long FWD type manifold...great throttle linkage!...would be interesting to see inside.

  2. thegave Forum Member

    Joined:
    Nov 4, 2008
    Likes Received:
    2
    Location:
    London
  3. Mike_H Forum Addict

    Joined:
    Oct 16, 2004
    Likes Received:
    14
    Location:
    iQuit
    Not the ones I've seen - I have a friend with a Ralt VW F3 car which has a Judd/Brabham engine - 1600 type block and heron head but a 2.0. The 2.0 lump is a bored and stroked 1.6, not a 1.8 block.

    Could well have had the head added at a later date. Looking at the oil drains on the front of the head, compared to the block, I *think* that's a Mk1 1600 type block. What's cast into the back of it?

    So, if it's had a later head, it must have had the pistons changed as well, to get the CR right after the change to a chambered head.

    Last edited: Nov 20, 2012
  4. Mike_H Forum Addict

    Joined:
    Oct 16, 2004
    Likes Received:
    14
    Location:
    iQuit

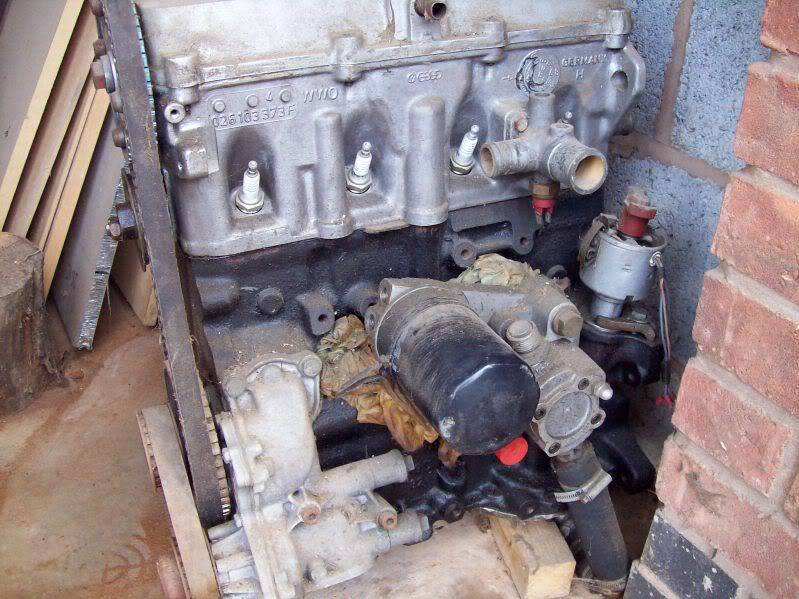

    F3 Engine... too many bits in the way to see the block clearly, but you can see it's a 1.6 GTI type head - from the position of the water outlet. Note there's only one oil drain at the front.

    [​IMG]
    [​IMG]

    Last edited by a moderator: Aug 9, 2017
  5. TonyB Paid Member Paid Member

    Joined:
    Jan 6, 2010
    Likes Received:
    168
    Location:
    Ammanford, Wales
    I can't see it being a FVee motor as they were unrestricted and you would want a short stroke for revs [power] (I think the 1600's were shorter stroke than the 1800's) and sleeving the bore size to get down to 1600 would really limit valve size and cause shrouding, it's tight enough when they are std! Maybe an F3 motor as the best used a long stroke to get torque as they didn't rev, so that would make sense but it would be minimum 1800, more likely 1900+.

    I'm not saying it's not a proper race engine just that it seems like a development possibly using parts from a few different builders for a specific application, interesting too see what. As I said be good to see under the rocker cover and down the ports but really you need to see the pistons as well.

  6. redturner37 New Member

    Joined:
    Nov 18, 2012
    Likes Received:
    0
    Thanks for the comments, you obviously know more about the VW engine than I do, I being a confirmed Ford man. I may well take the lid off and take some pictures for the experts on the forum to judge. I really do need to find out exactly what it is and make a decision as to what to do with it.....

  7. Mike_H Forum Addict

    Joined:
    Oct 16, 2004
    Likes Received:
    14
    Location:
    iQuit
    1600 Mk1 lump is 79.5mm bore and 80mm stroke.

    1800 is 81 x 86.4

  8. mark25 Forum Junkie

    Joined:
    Oct 28, 2003
    Likes Received:
    2
    Location:
    Rotterdam

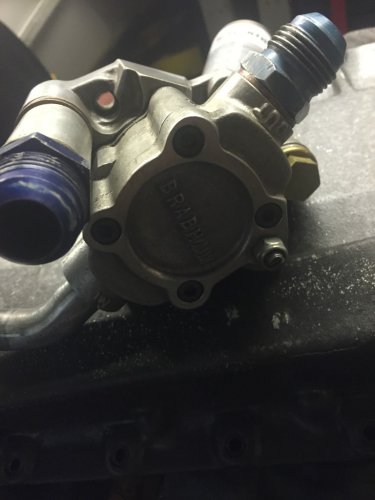

    This one seems to have an extremely small oil capacity...

    [​IMG]

    Last edited by a moderator: Aug 9, 2017
  9. Mike_H Forum Addict

    Joined:
    Oct 16, 2004
    Likes Received:
    14
    Location:
    iQuit
    They're normally dry-sumpted, IIRC.

  10. redturner37 New Member

    Joined:
    Nov 18, 2012
    Likes Received:
    0
    Yes this engine has a full dry sump system fitted. Cast ally sump pan can be seen in the photographs.....

  11. mr hillclimber Club GTI Supporter and Sponsor

    Joined:
    Nov 24, 2005
    Likes Received:
    131
    Location:
    Southwest
    Did you pick up my PM by any chance?

  12. redturner37 New Member

    Joined:
    Nov 18, 2012
    Likes Received:
    0
  13. mr hillclimber Club GTI Supporter and Sponsor

    Joined:
    Nov 24, 2005
    Likes Received:
    131
    Location:
    Southwest
    Hi Dave, just picked this up...email sent.

    Regards

    Jason

  14. Flipp_76 New Member

    Joined:
    Feb 28, 2016
    Likes Received:
    5
    Location:
    Norway
    Brabham

    I have a engine like this

  15. Sirguydo

    Sirguydo Fastest milkman in the West Paid Member

    Joined:
    Nov 7, 2012
    Likes Received:
    1,178
    Location:
    Bolton
    Mmmmmmmmmmmmmmm :thumbup:

    Can you put some pictures up please :thumbup:

    You need to hoist on photo bucket etc and paste the direct link into the photo icon above drop down link box :thumbup:

  16. Flipp_76 New Member

    Joined:
    Feb 28, 2016
    Likes Received:
    5
    Location:
    Norway
    Last edited by a moderator: Feb 28, 2016
  17. Toyotec

    Toyotec CGTI Committee - Happy helper at large Admin

    Joined:
    Jul 26, 2006
    Likes Received:
    2,952
    Location:
    Creating Pfredstarke
    Helped you out with the picture Flipp_76!

  18. Flipp_76 New Member

    Joined:
    Feb 28, 2016
    Likes Received:
    5
    Location:
    Norway

    Last edited by a moderator: Jan 10, 2017
  19. Flipp_76 New Member

    Joined:
    Feb 28, 2016
    Likes Received:
    5
    Location:
    Norway

    Last edited by a moderator: Jan 10, 2017
  20. notenoughtime

    notenoughtime Moderator Moderator

    Joined:
    Jan 21, 2014
    Likes Received:
    514
    Location:
    Essex
    Use the bottom link on photobucket
