2036cc ABF 83.5mm 16V MS1 V3 & Jenvey 45mm DTH 200bhp + Project

Discussion in '16-valve' started by Brookster, Feb 28, 2009.

  1. jonlikescad Forum Member

    Joined:
    Nov 30, 2011
    Likes Received:
    0
    ^^^ this. Ramair really isn't significant until well into 3 figure speeds.

    Stupid question incoming - couldn't you turn the throttle bodies upside down and mount them so the horn point down a little as opposed to up a little? [:s]

  2. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40
    Yes that was a Stupid Question.

    the Jenvey DTH are mounted direct the head so come straight of the head at the 90deg angle that is dictated by the 16v head design

  3. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40

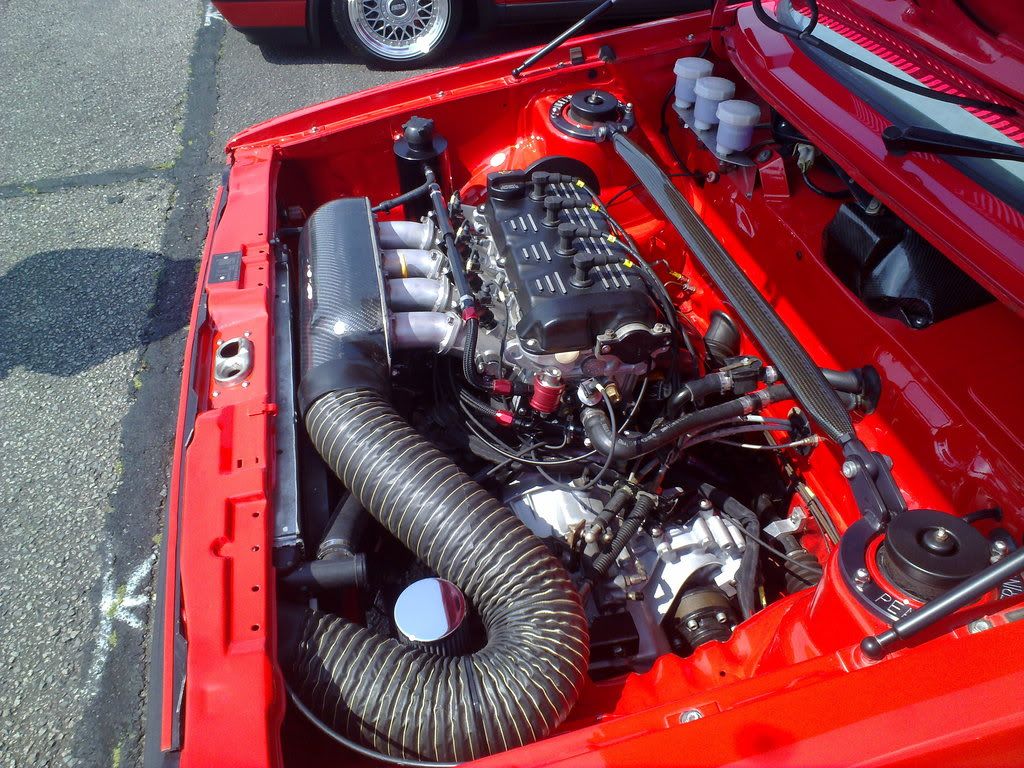

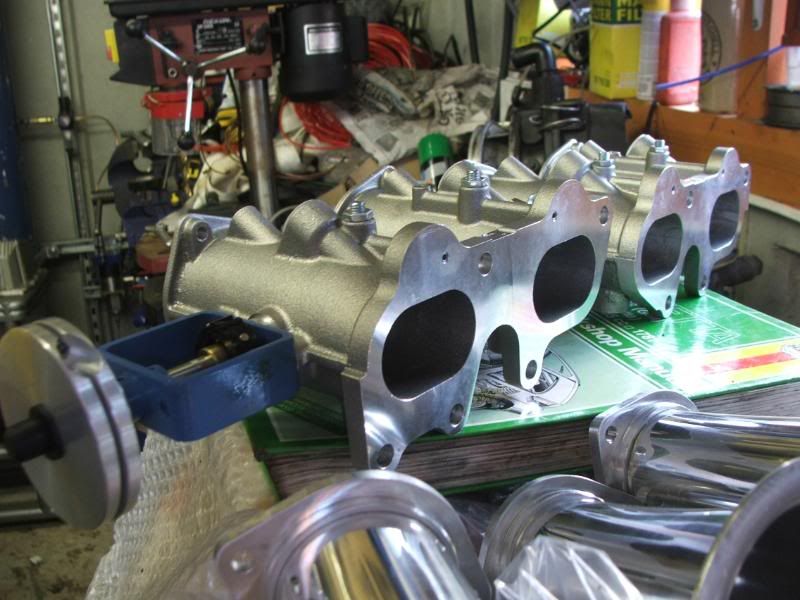

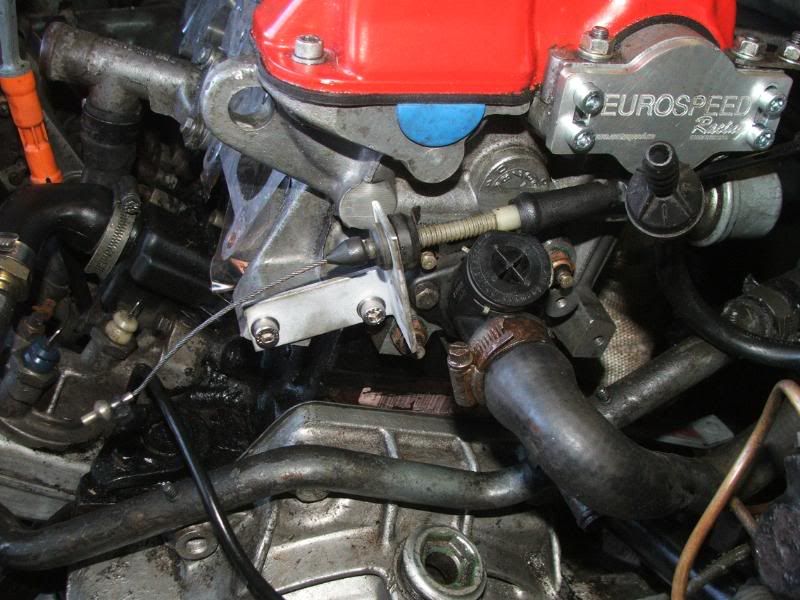

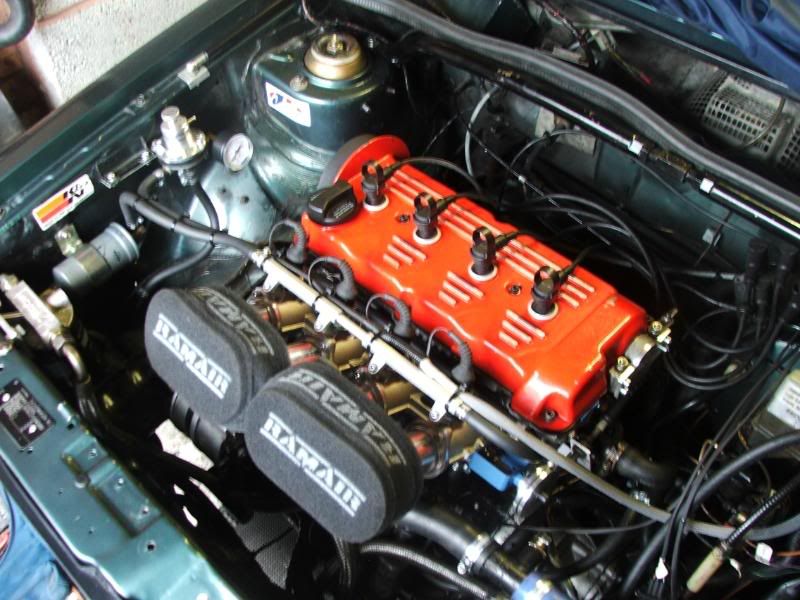

    Ade's old MK1 20V with Jenvey's not DTH but had custom inlet manifold to get the correct angle

    [​IMG]
    [​IMG]
    [​IMG]

  4. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40

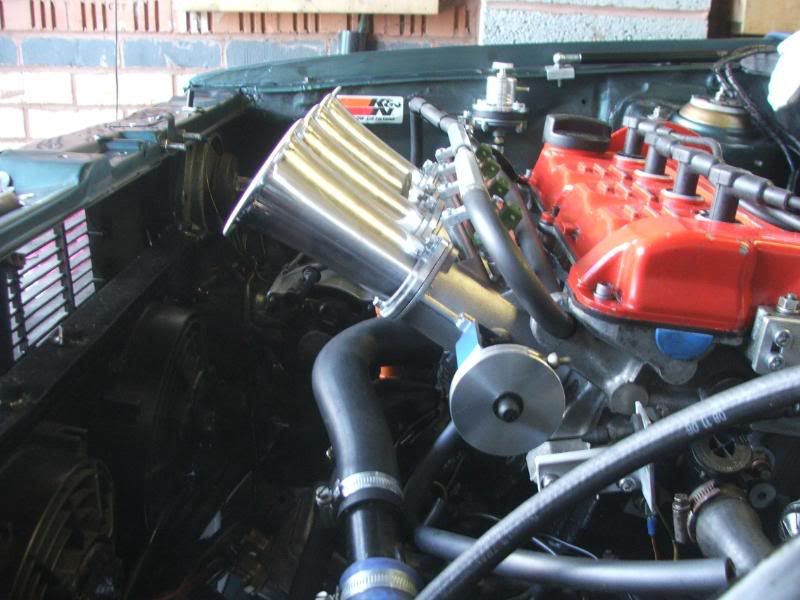

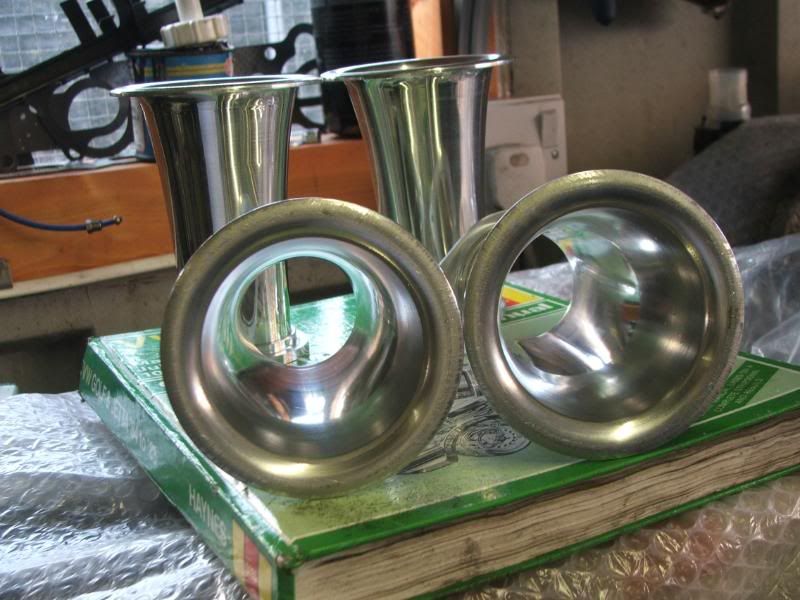

    Custom Trumpets on the Jenvey DTH


    [​IMG]

  5. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40

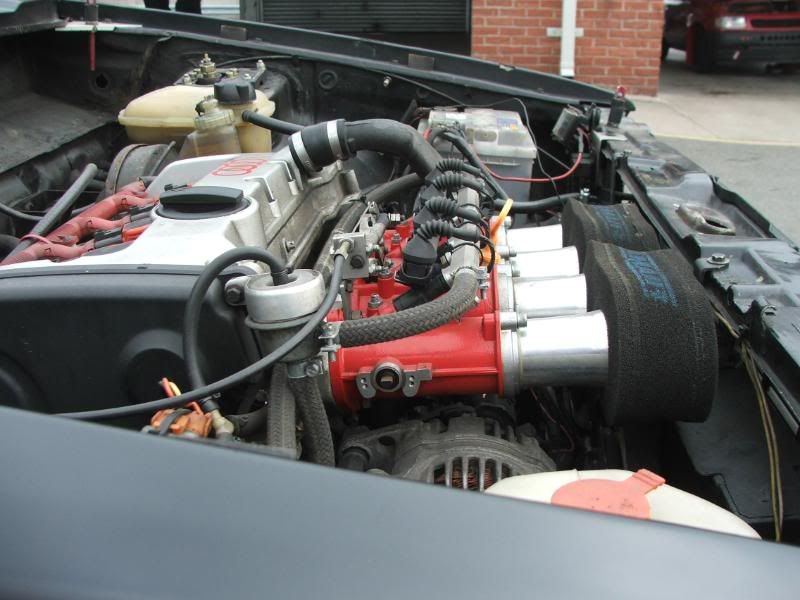

    DTH Angle from side shot

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Sep 27, 2012
  6. murph81 Forum Member

    Joined:
    Feb 23, 2010
    Likes Received:
    66
    Location:
    Republic of Ireland.
    Thanks for the pic Brookster, looking at it now I don't think the Badger5 set up will do, looks like custom curved spacers are needed.

  7. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40
    MK2's with DTH Fitted

    [​IMG]

    [​IMG]

    [​IMG]

  8. jonlikescad Forum Member

    Joined:
    Nov 30, 2011
    Likes Received:
    0
    looks like a custom manifold (i.e. tapered section of metal) would be the cheapest way to solve it then unless you need the bodies to be at 90deg to the head for swirl or some other reason?

    I can't imagine some tapered AND curved horns would be cheap to make.

  9. murph81 Forum Member

    Joined:
    Feb 23, 2010
    Likes Received:
    66
    Location:
    Republic of Ireland.
    The curved spacers that Badger5 has would be ideal with more of an angle on them, surely can't be too hard to cast?

  10. Nige

    Nige Paid Member Paid Member

    Joined:
    Dec 12, 2006
    Likes Received:
    2,134
    Yep, seems that way to me too.

  11. RobT

    RobT Forum Junkie

    Joined:
    Oct 24, 2003
    Likes Received:
    948
    Location:
    Cheshire
    Defeats the point of DTH bodies - nice downdraft effect

  12. jonlikescad Forum Member

    Joined:
    Nov 30, 2011
    Likes Received:
    0
    or machined from billet. looks like a simple taper section really.


    what are the benefits of downdraft? I doubt a subtle reangle of the bodies would change how they breathe very much.

  13. RobT

    RobT Forum Junkie

    Joined:
    Oct 24, 2003
    Likes Received:
    948
    Location:
    Cheshire
  14. murph81 Forum Member

    Joined:
    Feb 23, 2010
    Likes Received:
    66
    Location:
    Republic of Ireland.
    What brake servo pipe are you using Brookster?

  15. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40
    just some 8mm rubber fuel hose

  16. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40

    wise words from Hillclimber 4 years ago :thumbup:

    mitlom likes this.
  17. infinity

    infinity Forum Member

    Joined:
    Jan 20, 2004
    Likes Received:
    28
    Location:
    United Kingdom

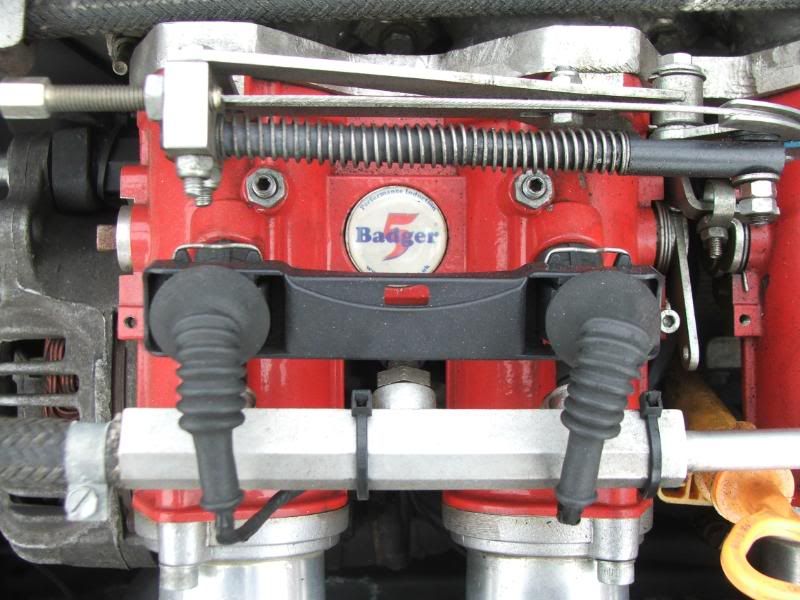

    Anyone know the origins of this throttle linkage?


    [​IMG]

  18. murph81 Forum Member

    Joined:
    Feb 23, 2010
    Likes Received:
    66
    Location:
    Republic of Ireland.
    Bill at Badger5 designed and made them afaik.

  19. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40

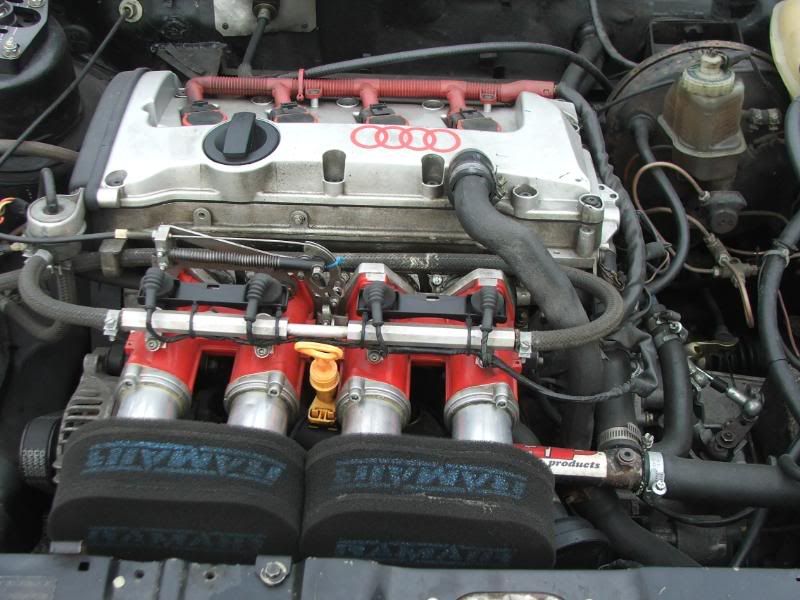

    Yeah they are from The Badger

    [​IMG]
    [​IMG]

    Last edited: May 14, 2013
  20. Brookster

    Brookster Paid Member Paid Member

    Joined:
    May 17, 2004
    Likes Received:
    150
    Location:
    M1 J40
    fired up the MK1 at the weekend and tweaked a couple of items ready for it to come out to play in two weeks an Santa Pod
