UK Kamei Mk1 Golf Replica - Prescott Hillclimb on page 53 !!!!!

Discussion in 'Members Gallery' started by fthaimike, Jun 5, 2005.

  1. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12

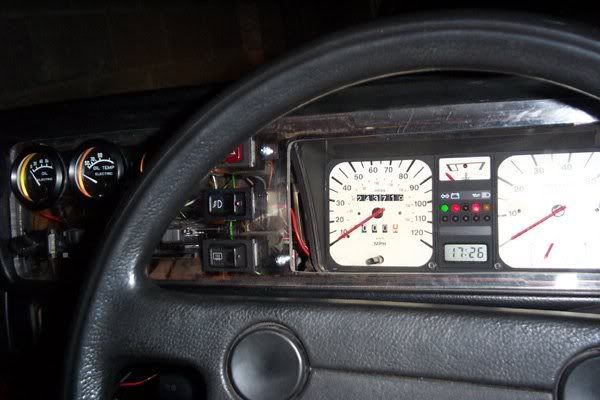

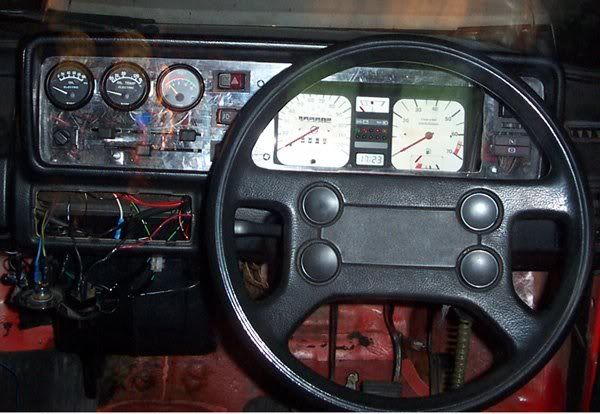

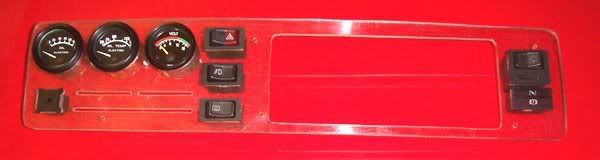

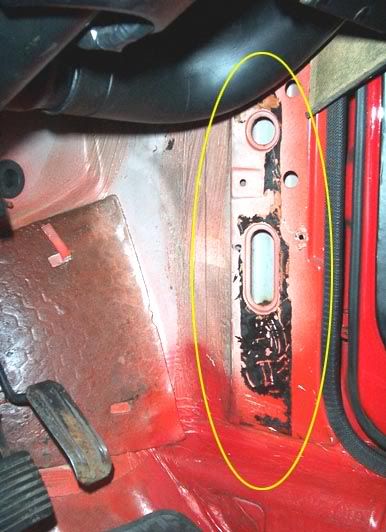

    Right finally got the dash back together, had a headache trying to find somewhere to fix the top half as on the normal surround 2 screws go vertical up into the dash & this flap was removed to allow the perspex to fit right into the recess so i had a brainwave and removed the L-shaped pieces (2 of) that were once holding the lower half of the dash to the chassis (1 was next to the bonnet release lever & the other can be seen in one of the pics above to the right hand side of the drivers footwell,both needed pop rivets drilled out), i took these & fastened them along a strip of wood that was tucked just above the speedo (was tight fit so cannot move) & this then left 2 neatlly facingscrew holeswith the original clips on them (that grip screw).

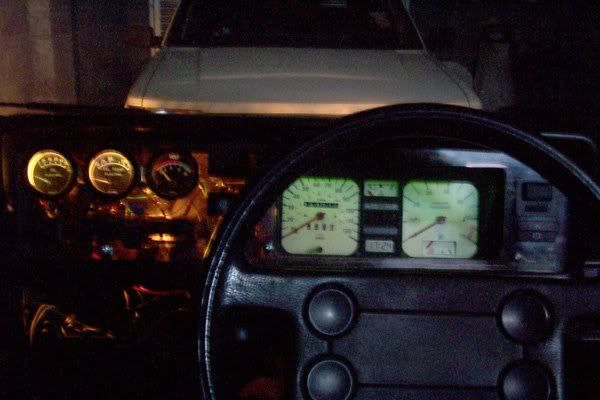

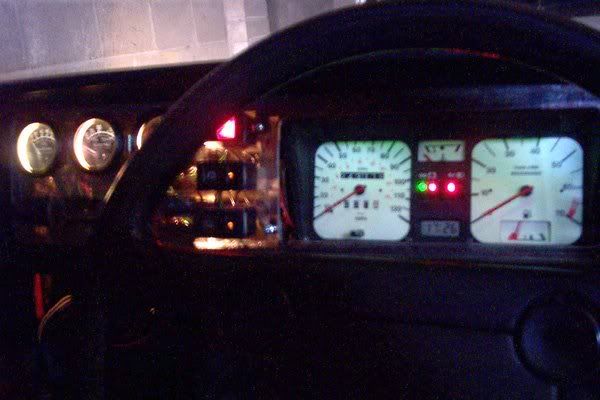

    I left the old ashtray bulb behind just for a laugh & it now illuminates the rear of the dash making it look like something from the Tardis :lol::


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]


    Also noticed that the Hazard switch i had given to me looks identical to the golf one but it came from a scirroco & the switch is reversed having the triangle/bulb on the right side?
    Edited by: fthaimike

  2. Riley

    Riley Forum Addict

    Joined:
    Dec 13, 2003
    Likes Received:
    22
    Location:
    Burnley/Lancs
    nice illumination :lol: [:D]

    good job though mike!

    the polo coupes are the same too i think?

    neil.

  3. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12
    Couldn't quite fit the "Flux Capacitor" in so maybe next time :lol:.

  4. velly_16v_cab

    velly_16v_cab Forum Junkie

    Joined:
    Oct 23, 2003
    Likes Received:
    5
    Location:
    Melbourne, Australia
    lol...i like the dash clart :clap:

  5. neath_jmj Forum Member

    Joined:
    Oct 22, 2003
    Likes Received:
    0
    Location:
    Wales
    Hey this is a good thread [:D]
    Top work so far :clap:[:*:] good luck with it [:D]:thumbup:

  6. AL*Mk1 Forum Member

    Joined:
    Mar 8, 2004
    Likes Received:
    0
    Location:
    United Kingdom
    Looking good mate, but you really want to get rid of that dash!

    [​IMG]


    I gave up on the stuff inside the roof. I couldn't get it off so decided to cover it up with something more "unique" instead!
    [​IMG]

  7. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12
    AL im ditching the dash eventually but using car for other stuff at the moment (not seeing a track this year).


    Fancy giving up on the roof :lol:;).


    Hopefully see your car at Volksfest Wales for a closer inspection & a nice long chat [:D].

  8. velly_16v_cab

    velly_16v_cab Forum Junkie

    Joined:
    Oct 23, 2003
    Likes Received:
    5
    Location:
    Melbourne, Australia
    mike, you not actually being allow out and coming to a show this year you???? :lol: :lol: :lol:
    Edited by: velly_16v_cab

  9. greg s Forum Member

    Joined:
    Oct 24, 2003
    Likes Received:
    1
    Location:
    United Kingdom
    90kg is more like 14 stone than 6.5.

  10. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12

    Oops 90lbs (stupid scales) 42kgs 6.5 stone

  11. altern8 Forum Junkie

    Joined:
    Oct 22, 2003
    Likes Received:
    0
    Location:
    Cocos (Keeling) Islands
    :lol: i think u need to get it weighed :)

  12. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12
    yeah i have got to weigh the bottom of the dash, centre console & some other bits yet.

  13. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12

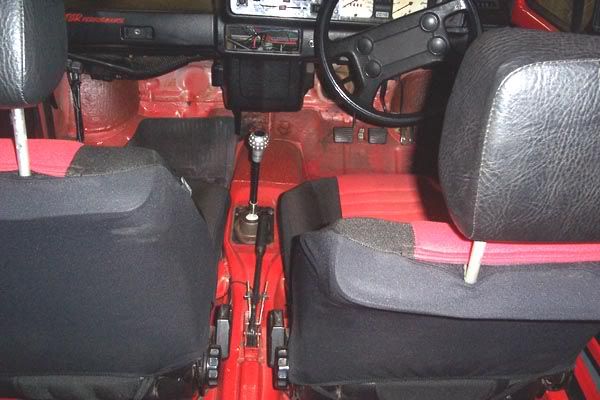

    lower dash now gone:


    [​IMG]

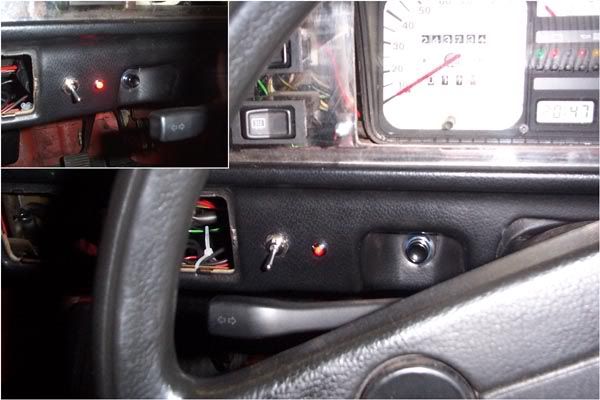

    Engine fan override / fan light / boot solenoid switch relocated:


    [​IMG]

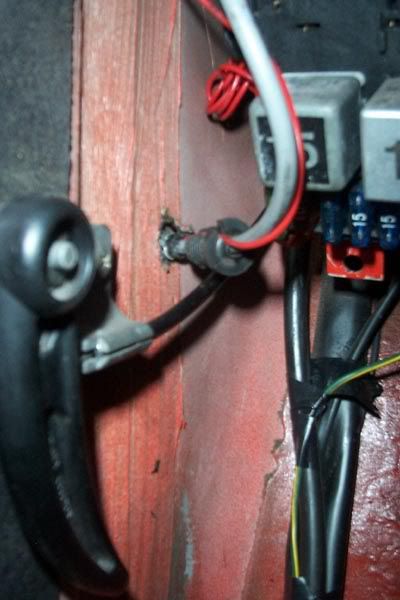

    Got this wire remaining & i think it's from the old aerial (wing flushed offbecause ofbee-sting) but it wont pull through the hole& i can see a metal connection at the end of it, any idea's?


    [​IMG]

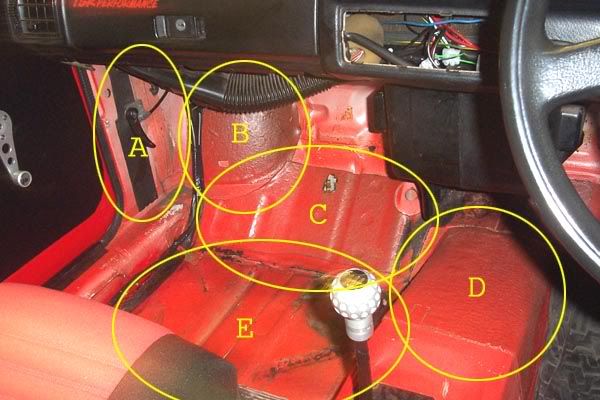

    Still need info on this second stage sound proofing as it seems quite hard & was wondering ifat the moment it wouldassist with strengthening/stiffening chassisuntila roll-cage is fitted?


    [​IMG]


    "E" seems to have a thick layer of wax/tar that is painted over (above).


    I removed this strip of soundproofing but there are holes behind it, is this OK to have stripped?


    [​IMG]

  14. mk1 driver Forum Junkie

    Joined:
    Oct 24, 2003
    Likes Received:
    2
    Location:
    Nottingham
    B, C, D and E are all the same, thick tar like substance that is painted over, heat or cold to remove that, heat gun and a spactular or similar, or ice cubes, wait a while and then hit with a hammer. I'm yet to have a go at my floor...

    The residue left on the A=pillar I removed with some Autoglym tar remover I think. Apply it, leave it for a few mins and then you can just peel it off.

  15. gary_k Forum Member

    Joined:
    Apr 9, 2004
    Likes Received:
    0
    Location:
    United Kingdom
    Coming on well, looking good mate. I wish i had the cash to finish mine. I have over spent and its not done. Got credit card bills coming in that i cant afford to pay. Got to sell Project Yellow Peril. [:^(]
    Or strip and sell as parts and scrap shell.
    [8(]

  16. steved Forum Member

    Joined:
    Nov 6, 2003
    Likes Received:
    27
    Location:
    United Kingdom
    [​IMG]

    Sharpen up a wood chisel (old one) and run along the floor with that just to get most of it off, Remove any forms of ignition then tip petrol over the floor this will remove any remains of tar, Once you've cleaned up the mess wipe the floor with white spirit.

  17. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12
    sorry to hear that gary, thanks for the tips lads :clap:.

  18. mk1vdub Forum Member

    Joined:
    Feb 2, 2004
    Likes Received:
    0
    Location:
    United Kingdom
    looking good, loving the dash, looks cracking all lit up [:D] :thumbup:

  19. gary_k Forum Member

    Joined:
    Apr 9, 2004
    Likes Received:
    0
    Location:
    United Kingdom
    I couldnt strip my car down it wouldnt let me. Its gonna be put on hold for a month or 2 while i sort my cash probs out. It might be ready for last show of the season. Then i will sell it as a complete car.
    I'd love to do a MK1 like yours Mike.
    Good job mate........ :thumbup:

  20. fthaimike Forum Addict

    Joined:
    Oct 27, 2003
    Likes Received:
    12
